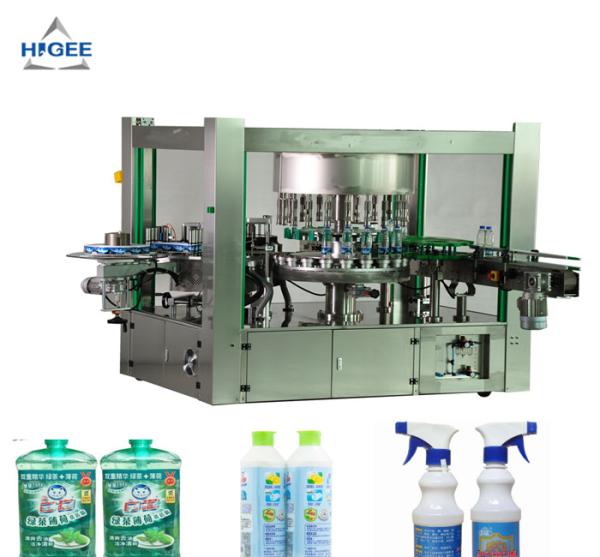

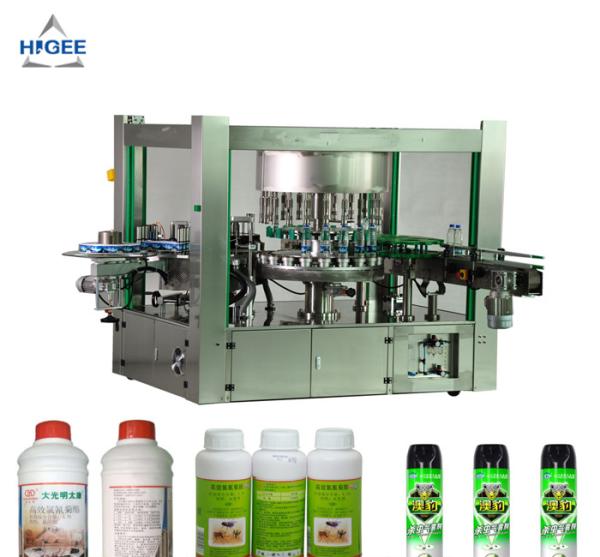

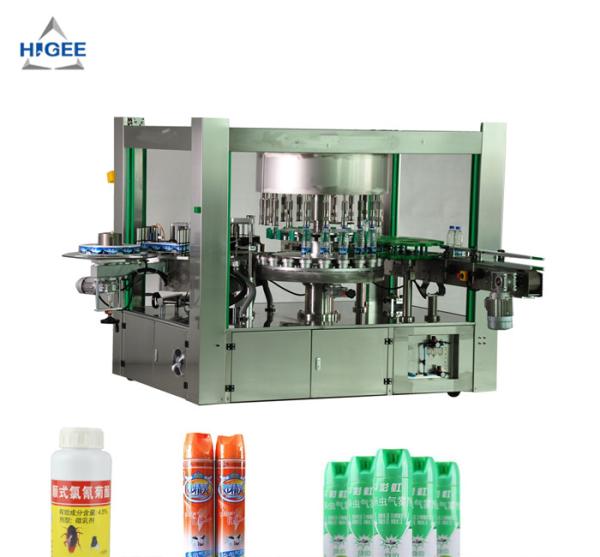

380V 50Hz OPP Round Bottle Labeling Machine For Glass Square Bottles
380V 50Hz OPP Round Bottle Labeling Machine For Glass Square Bottles
380V 50Hz OPP Round Bottle Labeling Machine For Glass Square Bottles
380V 50Hz OPP Round Bottle Labeling Machine For Glass Square Bottles
380V 50Hz OPP Round Bottle Labeling Machine For Glass Square Bottles
380V 50Hz OPP Round Bottle Labeling Machine For Glass Square Bottles
380V 50Hz OPP Round Bottle Labeling Machine For Glass Square Bottles
380V 50Hz OPP Round Bottle Labeling Machine For Glass Square Bottles
380V 50Hz OPP Round Bottle Labeling Machine For Glass Square Bottles
380V 50Hz OPP Round Bottle Labeling Machine For Glass Square Bottles
Specifications
Brand Name :
Higee
Model Number :
HMI-1
Certification :
ISO 9001 ,CE ,
Place of Origin :
China
MOQ :
1 set
Price :
negociated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets
Delivery Time :
30
Packaging Details :
Wood case
Name :
water bottle labeling machine
Labeling speed :
200 pcs /per minute
Label size :
L:130-330mm W:20-145mm
Labeling product size :
L: 50-300mm W: 40-100mm
Labeling glue :
Hot melt glue at both ends of each
Max outer diameter of the label :
600 mm
Label inner core diameter :
152mm
Description

Automatic OPP round bottle labeling machine with glass pet can jar with sticker bopp labeling machine for square bottles

Application :

1. Apply labeling production: All kinds of square shape bottles or containers, such as: plastic, metal, glass, etc.,
2. Applicable label: OPP film labels, paper-plastic composite film, labels, paper labels.

3. function: use for wrap around labeling on all kind of flat bottles.

Feature :

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Technical parameters :

SPECIFICATIONS
Label size
L:300-420mm
W:40-145mm
Labeling product size
(standard model)
L: 50-300mm
￠: 40-100mm
Remark: Can be customized, the height adjustment range of each machine: ±50mm
Labeling production size(L*W*H)
L(40-150)mm*W(40-100)mm*H(50-300)mm
Labeling speed
4000-36000 BPH
Standing model labeling max width
100mm (Can be customized)
Labeling accuracy
±1mm
Max outer diameter of the label
600mm
Paper core diameter
152mm
Max speed of come out label
100M/min
Labeling glue
Hot melt glue at both ends of each
Heating glue temperature
120~160℃
Speed adjustment method
Uninterrupted-adjust rate
Conveyor belt
L: 3500mm
W: 100mm
H: 1100mm ±30mm
Power consumption (W)
8000
Air consumption(MPA)
5-6
power supply
Three phase 380V 50Hz
(According to local voltage in different countries, can add voltage transformer after customer told us about the local voltage.)
Machine net size (L*W*H)
(can be customized)
2420*2500*2050mm
Machine ne weight
About 3000kg
