High Accuracy Automatic Wet Glue Labelling Machine For Tin Cans Stable Performance
High Accuracy Automatic Wet Glue Labelling Machine For Tin Cans Stable Performance
High Accuracy Automatic Wet Glue Labelling Machine For Tin Cans Stable Performance
High Accuracy Automatic Wet Glue Labelling Machine For Tin Cans Stable Performance
High Accuracy Automatic Wet Glue Labelling Machine For Tin Cans Stable Performance
High Accuracy Automatic Wet Glue Labelling Machine For Tin Cans Stable Performance
High Accuracy Automatic Wet Glue Labelling Machine For Tin Cans Stable Performance
High Accuracy Automatic Wet Glue Labelling Machine For Tin Cans Stable Performance
Specifications
Brand Name :
HIGEE
Model Number :
HAJ
Certification :
ISO 9001 ,CE ,
Place of Origin :
China
MOQ :
1 set
Price :
negociated
Payment Terms :
L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability :
100 sets
Delivery Time :
30
Packaging Details :
Wood case for labeling machine
Name :
tin can labeling machine
Labeling speed :
20-200 pcs per minute
Labeling accuracy :
±1mm
Label Specification :
adhesive sticker, transparent or opaque
The label size :
Height 20-200mm Length 25-300mm
The inner diameter or label roll :
76mm
The outer diameter or label roll :
380mm
Description

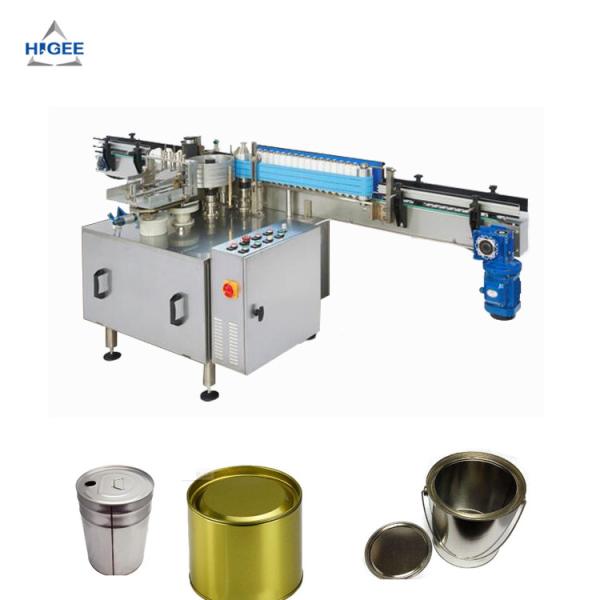

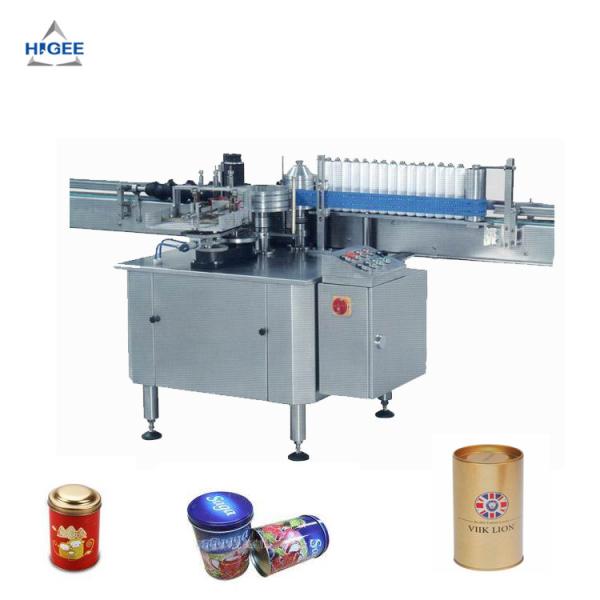

High accuracy automatic wet glue labeling machine with tin cans

Labeling machine

1. The whole machine is made by AISI304 stainless steel (including Base Frame and engine bed).The material of gommures is wearable, and material need to conform to the requirements of the food and health security agrochemical industry.

2. Paste tank with stainless steel roller machine minutely .Glue increases with the increasing use of glue and will not leak.

3. Special rubber roller through the number of processing is deformation resistance and wear-resisting.

4. Using vacuum standard, cooperating with belt, tags can be smooth paste on the bottle.

5. Photoelectric test bottle to achieve no tag without botte.

6. Through frequency converter, motor speed can be adjusted freely, and labeling capacity can be controlled freely.

7. It is not only individual operation and also can connect with production line.

8. In addition,the equipment can be adjusted manually,the purpose is to facilitate adjustment operation.

9. It can post 360 standard, and error can be controled within 1 mm

10. It can quickly adjust and meet the various specifications of bottles through replacing the fan Vacuum belt small parts, etc. And it can eliminate furthest human adjustment factor.

11. The machine processing technology is exquisite, the basic components are standard parts in order to be maintainly conveniencly,.

12. Most of the configuration is imported,it can ensure the quality, stability performance is better,service time is longer,repair rate is lower.

Model HAJ-2
Capacity(BPM) 40-100
Diameter of bottle 30-110 mm
Size of label (L*H) 50-330—40-150 mm
Vertical error ±1
Labeling rate ≥99.8%
Power supply 380V three-phase,50HZ
Motor power 1.0KW
Gas consumption 4-6kgs/Min
Glue Water-soluble phenolic resin adhesive
Net weight 450KG

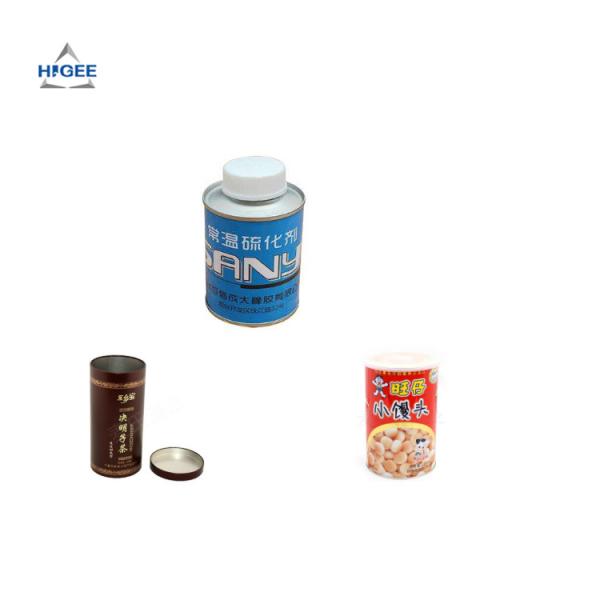

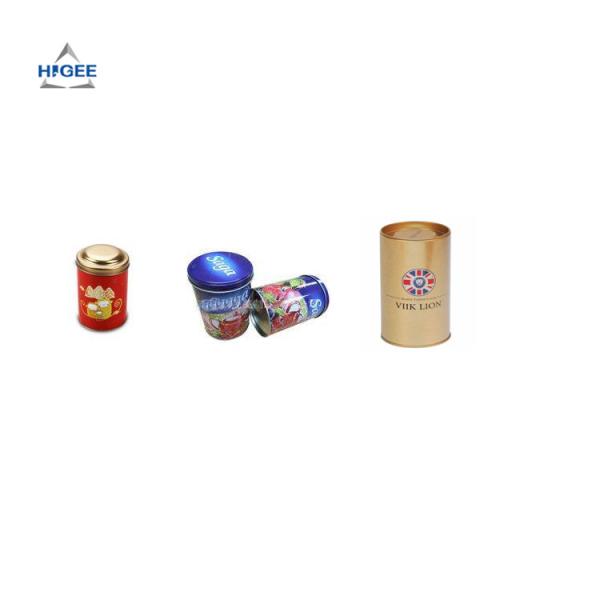

This wet glue labeling machine is suitable for circle for round products in the food, condiment, medicine, wine, oil, cosmetics and other industries various round bottle paste labeling.
