Semi automatic n95 face mask making machine n95 mask making machine ultrasonic n95 mask making machine
Semi automatic n95 face mask making machine n95 mask making machine ultrasonic n95 mask making machine
Semi automatic n95 face mask making machine n95 mask making machine ultrasonic n95 mask making machine
Semi automatic n95 face mask making machine n95 mask making machine ultrasonic n95 mask making machine
Semi automatic n95 face mask making machine n95 mask making machine ultrasonic n95 mask making machine
Semi automatic n95 face mask making machine n95 mask making machine ultrasonic n95 mask making machine
Semi automatic n95 face mask making machine n95 mask making machine ultrasonic n95 mask making machine
Semi automatic n95 face mask making machine n95 mask making machine ultrasonic n95 mask making machine
Semi automatic n95 face mask making machine n95 mask making machine ultrasonic n95 mask making machine
Semi automatic n95 face mask making machine n95 mask making machine ultrasonic n95 mask making machine
Specifications
Brand Name :
HIGEE
Model Number :
HG-2020
Certification :
ISO 9001 ,CE ,
Place of Origin :
China
MOQ :
1 set
Price :
negociated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets
Delivery Time :
45 days
Packaging Details :
Wood case for filling machine
Name :
n95 respirator mask making machine
Model :
HG-2020
Production speed :
50 pcs per minute
Material :
SS 304
Width of product :
Standard
Length of product :
Standard
Machine size :
5600*3200*1800mm
Description

N95 Semi Automatic dust mask making machine

1. Product name : N95 Mask Making Machine

2. Speed : 50 pcs per minute

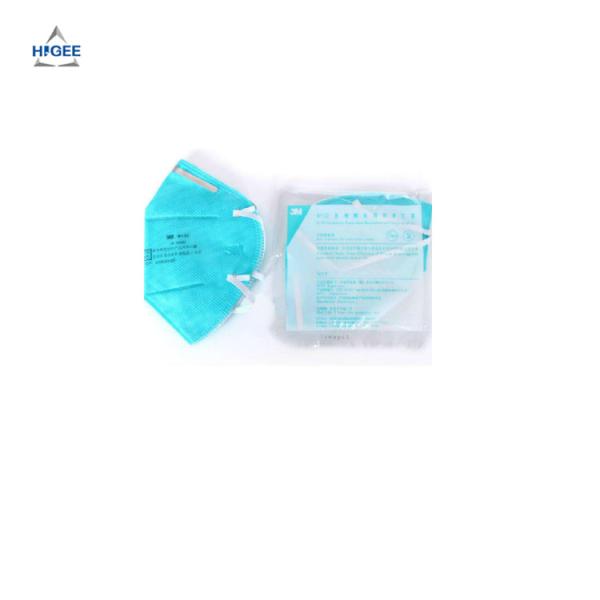

3. Samples:

Packing machine

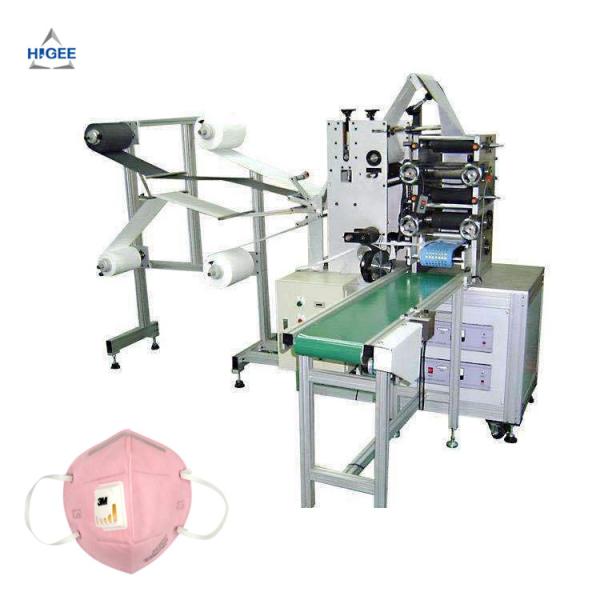

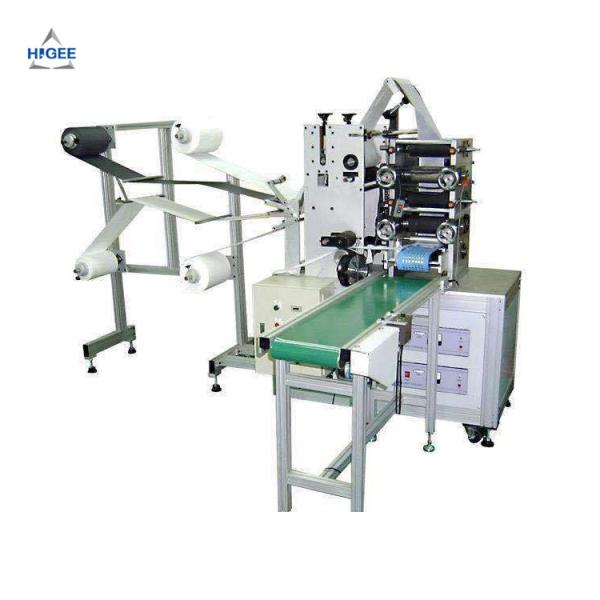

Machine introduction:

This is our semi automatic N95 mask making machine , this machine is suitable for the production of folding mask bodies. It uses ultrasonic technology to bond 3 to 6 layers of pp non-woven fabric, activated carbon and filter materials. And cut the folding mask body, can process 9001, 9002 mask body. Depending on the raw materials used, the produced masks can reach different standards such N95 and so on. Then use the ear band spot welding machine ,bridge welding machine and forming edge band machine to weld the mask body to complete the production of the entire folding mask.

Features

1:Using the aluminum alloy structure, making machine lighter and more smooth

2:Adopting the advanced welding technical, making the product softer and comfortable

3. one output line , high capacity

4. Fully Automatically , make outside earloop welding togther with mask producing process which can save labor , once non woven raw material in unwinding part use up , the machine can automatically stop.

Technical Parameters:

Model HG-2020
Production speed 50pcs /minute
Voltage 220V/50Hz 1 phase
Power 6kw
Compressed air 0.5 ~ 0.7 MPa, the use flow rate is about 300L / min
Weight 1000 kg
Machine size L4400 * H1800mm * W950mm
Operation environment temperature 10 ~ 35 ℃, humidity 5-35% HR, no flammable or corrosive gas Body, no dust (cleanliness no less than 100,000)

Product tags

face mask manufacturing machine

,

mask maker machine

,

ultrasonic mask making machine
