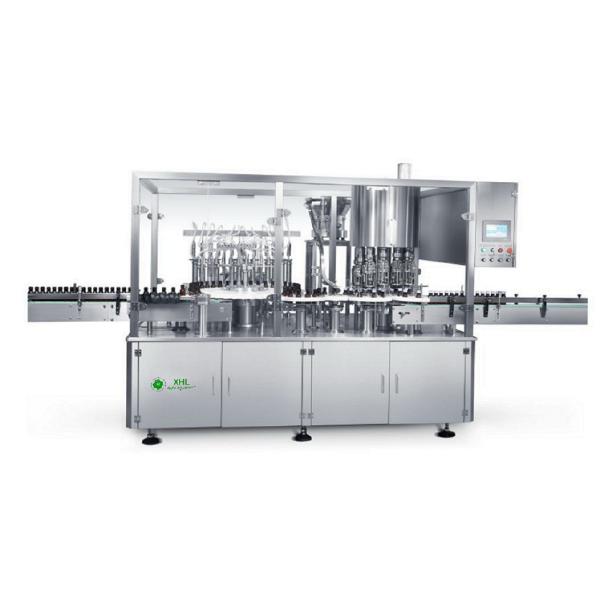

KZYG12/12 5-30ml Slim Plastic Bottle Unscrambling, Air Washing, Filling, Capping and Packaging Production Line

Overview

The equipment is suitable for bottle unscrambling, air washing, filling, cap turning, labeling, cartoning, middle packaging, case packing and other back-end-of-line packaging of 5-30ml plastic bottles and slim bottles in such industries as medicine, food, health products, etc. The machine can be used singly or for linked production, fully conforming to GMP requirements. It has reached the advanced level and can substitute similar imported products.

Performance Features

-Unique bottle feeding and discharging protection mechanism, specially used for slim and easy-to-fall bottles.

-The production line integrates bottle unscrambling, air washing, filling, cap turning, labeling, cartoning, middle packaging, case packing, palletizing, etc., which is fully automated and saves manpower.

-It can be equipped with CIP/SIP cleaning and sterilization system.

-The seal ring of the plunger metering pump is made of silicon rubber, Teflon or other materials depending on different industries and liquid ingredients. Ceramic material can be used in special applications. The filling principle also includes the use of peristaltic pump, negative pressure type, weighing type, self-flow type, reflux defoaming type, etc.

-It adopts the PLC control system with variable frequency speed control and high degree of automation.

-With servo-driven filling, the filling volume is adjusted on the man-machine interface.

-The filling system is provided with the anti-leaking device, realizing filling from the bottom of the bottle, rising slowly and avoiding bubbles.

-The whole machine is suitable for various specifications of bottles and adjustments can be completed conveniently within a short time.

-The tightness of the air gripper type cap turning head can be adjusted without damaging the bottle and cap. The torque is adjustable.

-It can be equipped with the cap storage and lifting mechanism.

-It can be equipped with the mechanism for identifying reverse caps and eliminating nonconforming products.

-The whole machine is designed according to GMP requirements.

-Explosion-proof design can be adopted for products used in special industries or special types of products.

Main Technical Parameters

Product Image

About us

-Listed company founded in 2003(WINLONG GROUP CORPORATE)

-17 years’ manufacturing experience in the aseptic filling production line.

-Exclusive manufacturing factory of 20,000 square meters (Changzhou, Jiangsu)

-More than 100 famous enterprise business partners across China.

-Expanded global business network

-Proven design, efficient and reliabile products.

-Customized design to meet the customer’s demand.

Our Services and Warranty

1.We can customize the machine as customer required.
2.Available for OEM/ODM service.
3.Offer living broadcast or video support.
4.To Door installation and training service.
5.Offer filling line solution with customer requirement.
6.Customer’s design are welcomed.
7.Competitive price with on-time delivery.
8.Main spare parts one year warranty ( personal damaged except ).

We can customize with your packaging materials, production capacity and demands.

We will provide you with associated design solutions and case videos.
