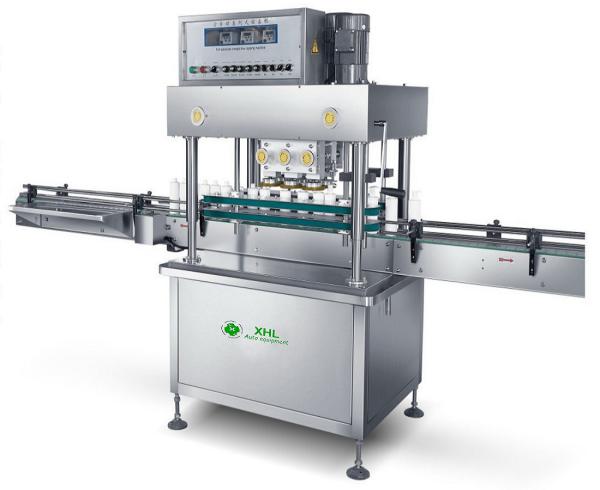

FXG-6 Automatic Integrated Servo-driven Automatic Inline Cap Turning Machine For Glass bottle

Overview

The machine adopts two sets of cap turning heads for follow type linear conveying of bottles, and the production efficiency is obviously improved. And the capping heads can be customize, which is influencing the capping speed.

Features

-Servo-driven actions, PLC control, reliable and stable.

-The cap turning head is automatically opened and closed to vertically grab the cap and turn the cap, featured by stable and reliable capping and no oblique cap.

-Linear continuous bottle moving, no bottle blocking or bottle falling.

-The efficiency is higher. With the centralized lubrication system, its running is light, stable and reliable.

-PLC control system, no outer cap feeding in case of no bottle, protection system for adjacent machines, variable frequency speed control.

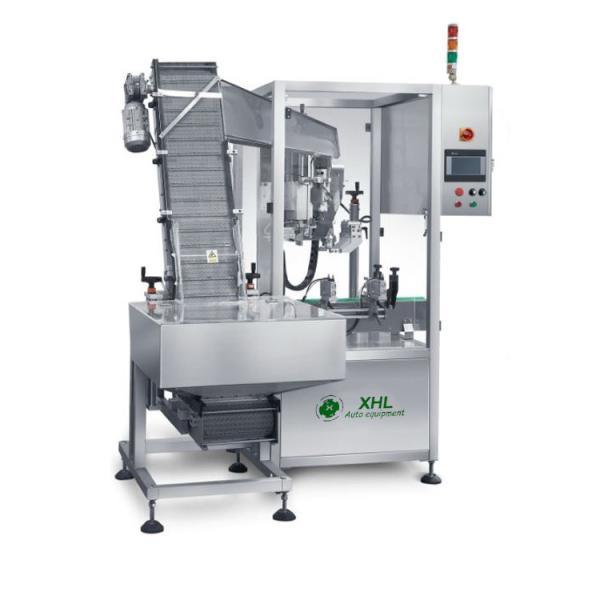

-It is equipped with cap storage and lifting mechanism. There are diversified cap unscrambling forms.

-It is provided with the function of identifying reverse caps and eliminating nonconforming products.

-Replacement of parts is simple and easy to operate.

Main Technical Parameters

-Applicable bottle specifications: Ø20-150mm

-Applicable cap specifications: Ø12-70mm

-Power supply: 220V 50HZ

-Power consumption: ≤2kw

-Compressed air:0.4-0.6 MPa

-Speed control: Variable frequency speed control

-Single machien noise: ≤70dB

-Weight: 850kg

-Outline dimensions: 2000*1100*1600(mm)

About us

-Listed company founded in 2003(WINLONG GROUP CORPORATE)

-17 years’ manufacturing experience in the aseptic filling production line.

-Exclusive manufacturing factory of 20,000 square meters (Changzhou, Jiangsu)

-More than 100 famous enterprise business partners across China.

-Expanded global business network

-Proven design, efficient and reliabile products.

-Customized design to meet the customer’s demand.

Our Services and Warranty

1.We can customize the machine as customer required.
2.Available for OEM/ODM service.
3.Offer living broadcast or video support.
4.To Door installation and training service.
5.Offer filling line solution with customer requirement.
6.Customer’s design are welcomed.
7.Competitive price with on-time delivery.
8.Main spare parts one year warranty ( personal damaged except ).

We can customize with your packaging materials, production capacity and demands.

We will provide you with associated design solutions and case videos.
