Specifications
Place of Origin :
Shanghai, China (Mainland)
Brand Name :
JB
Certification :
CE
Price :
US $7,000-25,000 / Sets | 1 Set/Sets (Min. Order)
MOQ :
1 Set/Sets
Model Number :
JB-420L
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
25 working days
Packaging Details :
wooden box
Condition :
New
Application :
Commodity, Medical
Packaging Type :
Film
Packaging Material :
Plastic
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
220V
Power :
3.5kw
Weight :
450kg
Dimension(L*W*H) :
1.32*0.92*1390m
After-sales Service Provided :
Engineers available to service machinery overseas
Product name :
corn powder packing machine
Making bag size :
L: 60-300mm W: 80-200mm
Packing capacity :
5-70bags/min
Machine weight :
450KG
control system :
PLC
packing volume :
1000Grams
service time :
lifelong
operate language :
english
machine body :
carton steel or stainless steel
Description

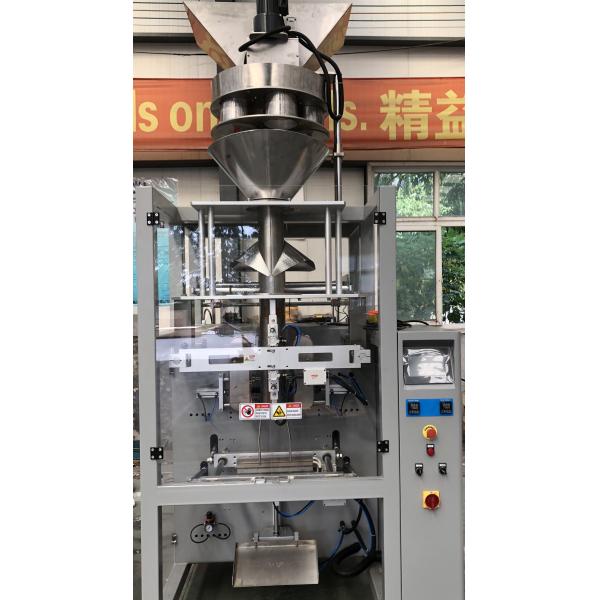

JB-420L 1kg Bag Packing Machine Automatic Granule Salt Sugar Packaging Machine

This machine is mainly used for packing granular products: such as sugar, salt, coffee beans, rice, peanuts, sunflowerseeds, grains, nuts, chocolate beans, oatmeal, washing powder, desiccants, etc.

1.Workflow: material lifting -cup volumetric fller measuring coding --bag making-- filling --gas injection/ exhaust(optional) --sealing --counting--conveying finished products.

2.Adopts PLC servo and pneumatic control system, touch screen display, high reliability and intellectualized degree.and equipped with safety protection.

3.Touch screen can store a variety of diferent product packaging process parameters, when replacing product, it canbe used at any time without resetting.

4 Equipped with fauit display system, could be clear at a glance when the fault occurs, in order to be ruled out prompty.

5.This machine body is carbon steel (optional: 304 sanless steel).

Model JB-420L
Packing speed 10-70 bags/min
packing volume 1500ml
Making bag size L:60-300mm,W:80-200mm
Film width ≤420mm
Thickness of film roll 0.04-0.09mm
Pulling film type double belt pull film
Air consumption 0.8Mpa,0.5m³/min
Packing accuracy ≤±1%(depends on product)
Main machine power 3.5kw
Power supply 1Ph.220V,50/60Hz
Seal type Pillow seal,Gusset bag,Block bottom bag
Main machine net weight 450kg
Main machine dimension L1320*W920*H1390mm

Pneumatic Control Seal Packing Machine , Carton Steel Food Packing Machine

Pneumatic Control Seal Packing Machine , Carton Steel Food Packing Machine

Pneumatic Control Seal Packing Machine , Carton Steel Food Packing Machine

FAQ

1.Are you in factory ?

Yes ,we are the professional manufacturer in Shanghai over than 10 years

2.Whats the minimum order quantity and warranty ?

There is no MOQ requirement ,Welcome to order

12 months warranty promise ,some customized products will 24 months warranty

3.Whats the term of payment ? How about trade terms ?

Payment term:TT,L/C ,Western Union , Cash etc .

Trade term :EX-WORKS ,FOB ,CIF,CNF...

4.What kind of package for shipping ?

Usually ,we use the basic stretch film wrap around the whole machine ,and packed with export long-distance wooden case ,

its the free for you ,if you have other special requirement for packed machine ,please ask it alone.

5.Whats your advantage ?

1.We own both factory and branch trading company in order to provide you one-step purchasing service for all machine .

2.10 year manufacturer and 8 years exporting experience.

3.We can provide you with products of different levels .

4.We have our own research and development design team , and we can accept product customization .

5.We strict control production process to make each of the products meet the international standards .
