AC220V 50 / 60Hz Automatic Packing Machine With Screw Conveyor 10-40 bags/min
AC220V 50 / 60Hz Automatic Packing Machine With Screw Conveyor 10-40 bags/min
AC220V 50 / 60Hz Automatic Packing Machine With Screw Conveyor 10-40 bags/min
AC220V 50 / 60Hz Automatic Packing Machine With Screw Conveyor 10-40 bags/min
AC220V 50 / 60Hz Automatic Packing Machine With Screw Conveyor 10-40 bags/min
AC220V 50 / 60Hz Automatic Packing Machine With Screw Conveyor 10-40 bags/min
Specifications
Place of Origin :
Shanghai, China (Mainland)
Brand Name :
JB
Certification :
CE
Price :
US $9,000-24,000 / Sets | 1 Set/Sets (Min. Order)
MOQ :
1 Set/Sets
Model Number :
JB-300F
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 SETS PER MONTH
Delivery Time :
20 WORKING DAYS
Packaging Details :
WOODEN BOX
Condition :
New
Application :
Food
Packaging Type :
Film
Packaging Material :
Wood
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
220V
Power :
1.9KW
Weight :
360kg
Dimension(L*W*H) :
L1800xW1250xH1780mm
After-sales Service Provided :
Engineers available to service machinery overseas
Machine name :
wheat flour packing machine
controller :
PLC
making bag size :
L50-300mm, W50-210mm
packing speed :
10-40 bags/min
Film width :
max 450mm
Motor type :
Servo
Packing range :
50-1500ML
Food contac parts :
SS304
Langauge :
English
Service time :
lifelong
Description

Automatic Auger Filler Chocolate Powder Packing Machine , 1kg Cocoa Powder Packing Machine With Screw Conveyor

Usage


This machine is widely used for packaging powder products: such as milk powder, flour, starch, coffee powder, spices, curry powder, protein powder, condiment, herbal powder, chemical and medical powder products.

Function and features


1. This machine can automatically complete the following work: auger filler measuring--coding (optional)--bag making--filling--sealing--counting.
2. PLC control system, color touch screen display, photoelectric tracking, high reliability and intellectualized degree.
3. Equipped with fault display system, easy to operate and maintain.
4. Make hole punching blades (round/ euro hole) and chain bags device according to customer's request.
5. Machine shell and all food touching parts are made of 304 stainless steel.

Technical parameter

Model YB-300F
Packing speed 10-40bags/min
Packing range 50-1500ml
Film width ≤ 450mm pillow seal ≤ 380mm 3/4 sides seal
Making bag size L: 50-300mm, W: 15-210mm
Packing accuracy ≤ ±1%
Power 1.9 KW
Power supply AC220V, 50/60Hz
Seal type 3/4 sides seal, pillow sea
Net weight 360kg
Machine dimension L1100 × W800 × H1900mm



LT3 screw conveyor for powder function
1. Adopts double motors: feeding motor and vibration motor, control independently.
2. Vibration type material hopper, and adjustable amplitude, the hopper was designed to be separate type, easy assembling and dismantle.
3. Spiral can reverse discharging material, convenient cleaning.
4. The machine’s overall height depends on packing machine’s height.
5.Machine body and product touching product are made of 304 stainless steel.


Technical parameters

Model YB-LT3
Feeding speed 3m³/h
Material hopper volume 230L
Power supply 1ph , 220V, 50/60Hz
Power 820 W
Machine size L1000 × W800 × H900mm
Machine weight 150kg


Product description

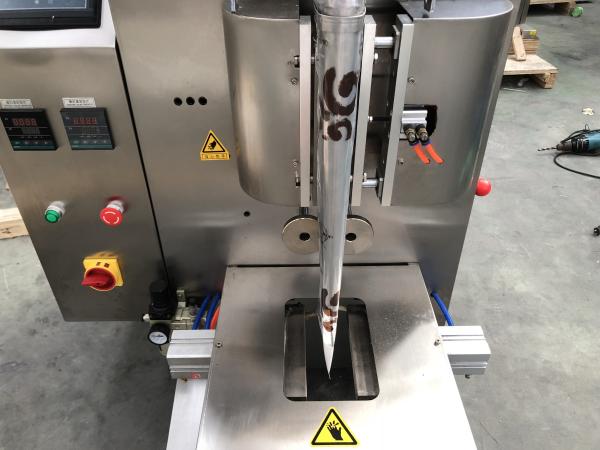

1.300F show details

AC220V 50 / 60Hz Automatic Packing Machine With Screw Conveyor 10-40 bags/min

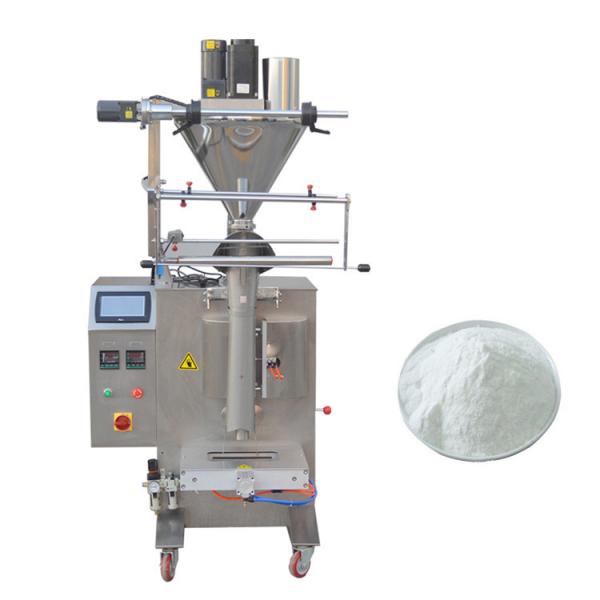

2.300F +LT3 screw conveyor for powder
AC220V 50 / 60Hz Automatic Packing Machine With Screw Conveyor 10-40 bags/min
