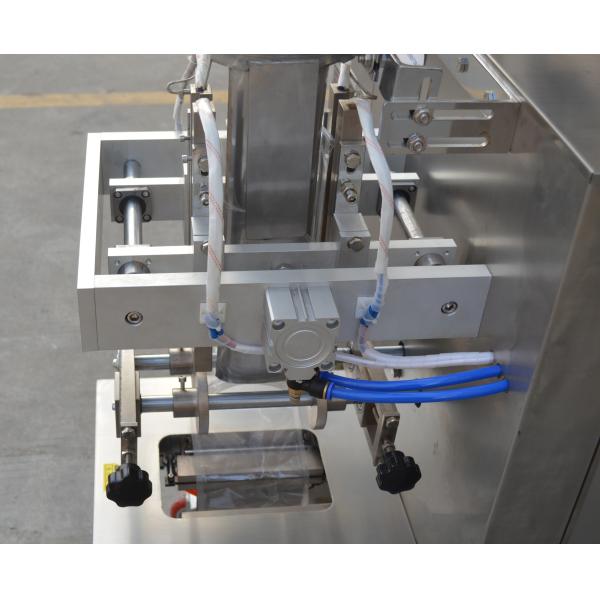

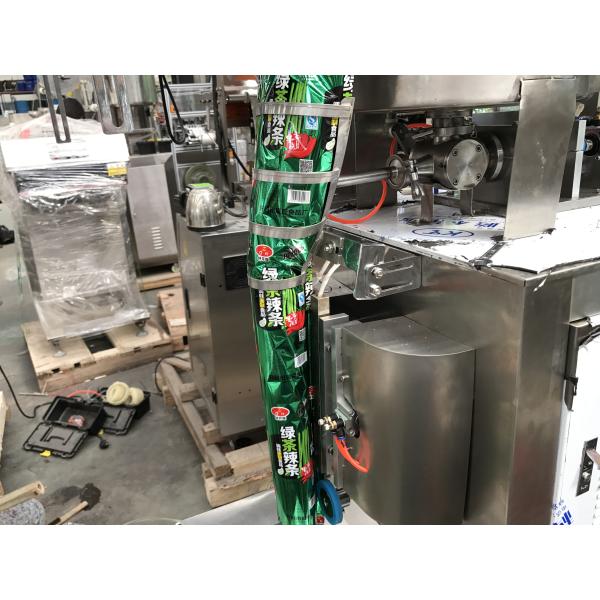

PLC Control Sauce Packing Machine Used For Ketchup / Tomato Sauce / Chili Sauce
PLC Control Sauce Packing Machine Used For Ketchup / Tomato Sauce / Chili Sauce
PLC Control Sauce Packing Machine Used For Ketchup / Tomato Sauce / Chili Sauce
PLC Control Sauce Packing Machine Used For Ketchup / Tomato Sauce / Chili Sauce
PLC Control Sauce Packing Machine Used For Ketchup / Tomato Sauce / Chili Sauce
PLC Control Sauce Packing Machine Used For Ketchup / Tomato Sauce / Chili Sauce
Specifications
Place of Origin :
Shanghai, China (Mainland)
Brand Name :
JB
Model Number :
JB-300J liquid filling and packing machine
Certification :
CE
Price :
US $4,350-5,050 / Sets | 1 Set/Sets liquid filling and packing machine (Min. Orde
MOQ :
1 Set/Sets l
Supply Ability :
50 sets per month
Delivery Time :
25 working days
Packaging Details :
wooden box
Type :
Other
Condition :
New
Application :
Commodity
Packaging Type :
Bags, Film, Pouch, liquid filling and packing machine
Packaging Material :
Wood
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
220V
Power :
1.9KW
Weight :
350kg
Dimension(L*W*H) :
L800*W1100*H1900mm
After-sales Service Provided :
Engineers available to service machinery overseas
Product name :
liquid filling and packing machine
machine touching parts :
SS304/carbon steel
sealing type :
pillow seal
making bag size :
L50-300mm, W50-200mm
production capacity :
20-60bags/min
controller :
PLC
electric source and power :
1Ph, AC220V, 50/60Hz
machine weight :
350kg
warranty :
1 year
Packing range :
50-1000ml
Description

PLC Control JB-300J Automatic Olive Oil , Ketchup And Fruit Jam Filling And Packing Machine

Usage:

This machine is mainly used for ketchup/tomato sauce, chili sauce, hotpot condiment, salad

cream, cooking oil, honey, yogurt, fruit juice, wine, vinegar, shampoo, hair conditioner, facial

cream, medical and chemical liquid/paste quantitative packaging.

Function and Features:

1. This machine can automatically complete following work: piston pump measuring--coding (optional)--bag making--filling--sealing--hole punching (optional)--counting.

2. Computer/PLC control system, photoelectric tracking, maximizes the whole machine's control precision, reliability and the intellectualized degree.

3. Has fault display system, easy to operate and maintenance.

4. Can choose mixing device, hopper heating device according to product character.

5. Machine body and all food touching part are made by 304 stainless steel

Technique Parameter

Model

YB-300J

Packing speed

10-50 bags/min

Packing range

50-1000ml

Film width

≤450mm

Making bag size

L: 50-300mm, W: 50-200mm

Packing accuracy

≤±1%

Power

1.9 KW

Power supply

AC220V, 50/60Hz

Seal type

3/4 sides seal, pillow seal

Net weight

350kg

Machine dimension

L800 × W1100 × H1900mm
