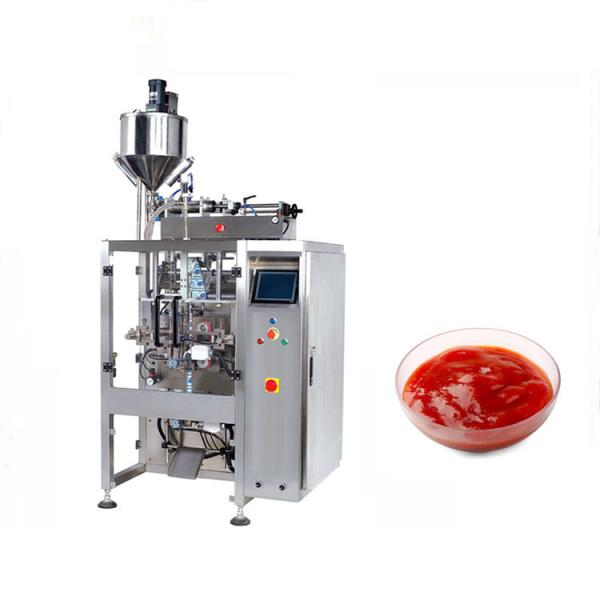

Electric Driven Type Sauce Packaging Machine For Ketchup / Honey / Blueberry Jam
Electric Driven Type Sauce Packaging Machine For Ketchup / Honey / Blueberry Jam
Electric Driven Type Sauce Packaging Machine For Ketchup / Honey / Blueberry Jam
Electric Driven Type Sauce Packaging Machine For Ketchup / Honey / Blueberry Jam
Electric Driven Type Sauce Packaging Machine For Ketchup / Honey / Blueberry Jam
Electric Driven Type Sauce Packaging Machine For Ketchup / Honey / Blueberry Jam
Specifications
Place of Origin :
Shanghai, China (Mainland)
Brand Name :
JB
Certification :
CE
Price :
US $7500-9500
Model Number :
JB-420J
MOQ :
1 set
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
20 work days
Packaging Details :
wooden box
Type :
Other
Condition :
New
Application :
Food, Machinery & Hardware, Medical
Packaging Type :
Bags, Stand-up Pouch
Packaging Material :
Plastic
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
220V
Power :
2.5KW
Weight :
450kg
Dimension(L*W*H) :
1320x920x1390mm
After-sales Service Provided :
Engineers available to service machinery overseas
Name :
sauce packing machine
Capacity :
10-50 bags/min
bag length :
60-300mm or 80-200mm
Language :
English
Working process :
form fill and seal
Controller :
computer or PLC
Warranty :
12 months
Filling system :
auger filler
Material :
304 stainless steel
Film width :
420mm (max)
Description

JB-420J Automatic Sauce And Liquid Filling And Packing Machine For Ketchup ,Honey And Blueberry Jam

This machine is mainly used for quantitive packing ketchuo/tomato sauce,chili sauce,hotpot condiment,salad dressing,cooking oil,honey,yogurt,fruit juice,wine,vinegar,medical and chemical liquid/paste.

1.Machine performance is stable,simple to operate,easy to clean.

2.Machine body and product contacting parts are made of 304 stainless steel,parts resistant to acid and alkali,corrosion resistance,high tempeture resistance.

3.PLC servo and pneumatic control system,large touch screen forms the core of drive control;high reliability and corrosion resistance,high temperature reaiatance.

Model YB-420J
Packing speed 10-50 bags/min
Packing volume 1000ml
Making bag size L: 60-300mm, W: 80-200mm
Film width ≤ 420mm
Thickness of film roll 0.04-0.09mm
Pulling film type Double belt pull film
Air consumption 0.8Mpa, 0.5m³/min
Packing accuracy ≤ ±1%
Power 2.5 KW
Power supply AC220V, 50/60Hz
Seal type Pillow seal, Gusset bag, Block bottom bag
Main machine net weight 450kg
Main machine dimension L1320 × W920 × H1390mm

Electric Driven Type Sauce Packaging Machine For Ketchup / Honey / Blueberry Jam

Electric Driven Type Sauce Packaging Machine For Ketchup / Honey / Blueberry Jam

Electric Driven Type Sauce Packaging Machine For Ketchup / Honey / Blueberry Jam

FAQ

Q: Are you a factory or trading company?

A:BY Machinery is a factory who has rich experiences in food, drinks , medical and cosmetic industrials, we offer OEM services in the last over 10 years, and now we have our own brands and own designed machines for sale!

Q: How long need to ship the machines after order

A: All machines can be ready and shipped in 15 or 30 days after order!

Q: What's the payment you prefer?

A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.

Q: Why should you choose our packing and filling machine ?

A:We have been specialized in filling and packing machine for more then ten years,nd until now have exported mahcines to more than 30 countries

Q: Can you provide after-sale service ?

A:Yes ,sure.We have engineers available to service overseas .

Q: Can i visit your factory and send team for learning and inspect ?

A: Yes,sure.We will do our best to teaching you how to use the machine.

Q: What is our advantages?

A: 1.Competitive price

2. Excellent technical support

3.Best service
