304 Stainless Steel Sauce Packing Machine 3/4 Sides Seal / Pillow Seal Type
304 Stainless Steel Sauce Packing Machine 3/4 Sides Seal / Pillow Seal Type
304 Stainless Steel Sauce Packing Machine 3/4 Sides Seal / Pillow Seal Type
304 Stainless Steel Sauce Packing Machine 3/4 Sides Seal / Pillow Seal Type
Specifications
Place of Origin :
Shanghai, China (Mainland)
Brand Name :
YB
Certification :
CE
Price :
US $3700.00
MOQ :
1 Set
Model Number :
YB-150J
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
25 working days
Packaging Details :
wooden box
name :
paste packaging machine
packing speed :
30-80bags/min
packing range :
5-200ml
making bag size :
L50-150mm,W15-130mm
Film width :
≤ 280mm
packing accuracy :
≤±1
machine body :
304 stainless steel
Description

Small Sachet Vegetable Oil Packing Machine

Usage

Mainly used for ketchup/tomato sauce, chili sauce, hotpot condiment, salad cream, cooking oil, honey, yogurt, fruit juice, wine, vinegar, shampoo, hair conditioner, facial cream, medical and chemical liquid/paste quantitative packaging.

Technical Parameters

Model

YB-150J

YB-300J

Packing speed

30-80 bags/min

10-50 bags/min

Packing range

5-200ml

50-1000ml

Making bag size

L: 50-150mm, W: 15-130mm

L:50-300mm, W:50-210mm

Film width

≤ 280mm

≤ 450mm

Power

1.6 KW

1.9 KW

Power supply

AC220V, 50/60Hz

AC220V, 50/60Hz

Seal type

3/4 sides seal, pillow seal

3/4 sides seal, pillow seal

Net weight

250kg

350kg

Machine dimension

600*790*1800mm

800*1100*1900mm

Function and Features

1.This machine can automatically complete following work: piston pump measuring--coding (optional)--bag making--filling--sealing-- hole punching (optional)--counting.

2.Computer control system, photoelectric tracking, maximizes the whole machine’s control precision, reliability and the intellectualized degree.

3.Has fault display system, easy to operate and maintain.

4.Can choose mixing device, hopper heating device according to product character.

5.Machine body and all food touching part are made by stainless steel

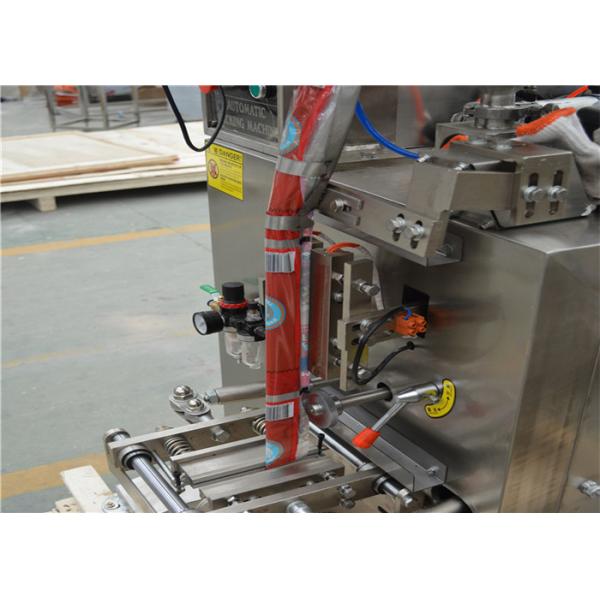

Main Pictures of machine

304 Stainless Steel Sauce Packing Machine 3/4 Sides Seal / Pillow Seal Type

304 Stainless Steel Sauce Packing Machine 3/4 Sides Seal / Pillow Seal Type

FAQ

Q1. Are you a manufacturer?

Yes, we have been in machinery industry over 10 years.

Q2. What machines does your manufactory make?

Our company is engaged in packing, filling, wrapping machine, etc. And they are widely used in food, beverage, commodity and medicine.

Q3. What information should I let you know if I want to get a quotation?

- The making bag size (length*width*height).

- The products to be packed.

- The gram weight of each package.

Q4. Do you inspect the finished machines?

Yes. Each step of production and finished products will be carried out inspection by QC

department before shipping.
