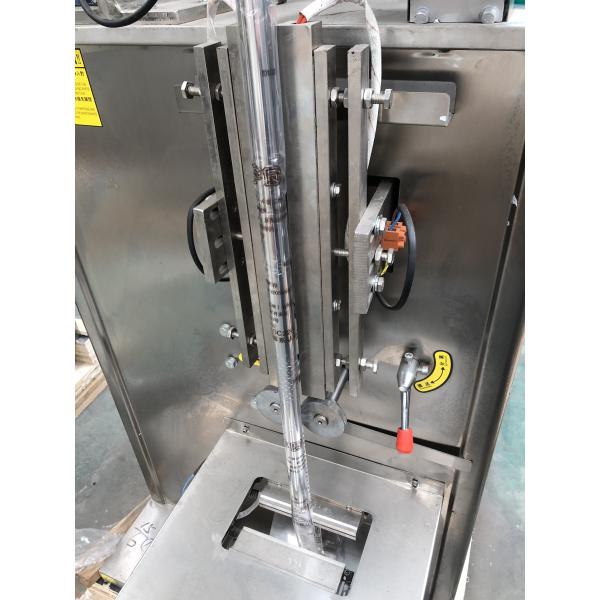

Pillow Seal Tomato Sauce Packaging Machine Photoelectric Tracking Available
Pillow Seal Tomato Sauce Packaging Machine Photoelectric Tracking Available
Pillow Seal Tomato Sauce Packaging Machine Photoelectric Tracking Available
Pillow Seal Tomato Sauce Packaging Machine Photoelectric Tracking Available
Pillow Seal Tomato Sauce Packaging Machine Photoelectric Tracking Available
Pillow Seal Tomato Sauce Packaging Machine Photoelectric Tracking Available
Pillow Seal Tomato Sauce Packaging Machine Photoelectric Tracking Available
Pillow Seal Tomato Sauce Packaging Machine Photoelectric Tracking Available
Specifications
Place of Origin :
Shanghai, China (Mainland)
Brand Name :
JB
Certification :
CE
Price :
US $3100-3400 / Sets | 1 Set/Sets milk powder packaging machine (Min. Order)
MOQ :
1 Set/Sets
Model Number :
JB-330Y
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
20 working days
Packaging Details :
wooden box
Condition :
New
Application :
Chemical, Commodity, Food, Medical
Packaging Type :
Bags, roll film
Packaging Material :
Wood
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
220V
Power :
1.6KW
Weight :
260kg
Dimension(L*W*H) :
L800 * W680 * H1900mm
After-sales Service Provided :
Engineers available to service machinery overseas
packing speed :
30-60bags/min
packing volume :
5-350ml
controller :
computer
making bag size :
L60-300mm,W80-200mm
Film width :
≤ 280mm
Power supply :
AC220V, 50/60Hz
sealing type :
pillow seal,4 sides seal
Description
Automatic milk,fruit juice , ice pop bag stick pouch filling packing sealing machine JB-330Y

1. This machine can automatically complete olenoid valve control flow measuring--coding (optional)--bag making--filling--sealing--counting.

2.Computer/PLC control system, photoelectric tracking, maximizes the whole machine's control precision, reliability and the intellectualized degree.

3. Has fault display system, easy to operate and maintain.

4. Machine body and all food touching part are made by stainless steel.

Model JB-330Y
Packing speed 30-60 bags/min
Packing range 5-350ml
Film width ≤ 280mm
Making bag size L: 50-330mm, W: 15-130mm
Packing accuracy ≤ ±1%
Power 1.6 KW
Power supply AC220V, 50/60Hz
Seal type Pillow seal, 4 sides seal
Net weight 260kg
Machine dimension L800 × W680 × H1900mm

Pillow Seal Tomato Sauce Packaging Machine Photoelectric Tracking Available

Pillow Seal Tomato Sauce Packaging Machine Photoelectric Tracking Available

Q: Are you a factory or trading company?
A:JB Machinery is a factory who has rich experiences in food, drinks , medical and cosmetic industrials, we offer OEM services in the last over 20 years, and now we have our own brands and own designed machines for sale!

Q: How long need to ship the machines after order?
A: The YB-150/YB-2518/YB-300 model machines. We have some type in store. You can come to check in our Shanghai departure. New customzied machine can be ready in 10 or 20 days after order!

Q: What's the payment you prefer?
A: Our standard payment terms are T/T with 30% deposits and 70% balanced before shipment.

Q:Why should you choose our packing and filling machine ?

A:Over 20 years experience+Life long free service on line+ more than 30 countries customers.+Good quality products

Q:Can you provide after-sale service ?
A:Yes ,sure. We have engineers available to service overseas.

Q:Can i visit your factory and send team for learning and inspect ?
A: Yes,sure. Some machine we have in store, welcome to take products and check machine in our factory.
