AC220V 50 / 60Hz Bottle Screw Capping Machine , Touch Screen Bottle Filling Capping Machine
AC220V 50 / 60Hz Bottle Screw Capping Machine , Touch Screen Bottle Filling Capping Machine
AC220V 50 / 60Hz Bottle Screw Capping Machine , Touch Screen Bottle Filling Capping Machine
AC220V 50 / 60Hz Bottle Screw Capping Machine , Touch Screen Bottle Filling Capping Machine
Specifications
Place of Origin :
Shanghai, China (Mainland)
Brand Name :
YB
Model Number :
YB-YG4
Certification :
CE
Price :
US $9,900-20,000 / Sets | 1 Set/Sets liquid filling and capping machine (Min. Ord
MOQ :
1 Set
Supply Ability :
25 sets per month
Delivery Time :
35 working days
Packaging Details :
wooden box
Payment Terms :
Western Union, L/C, T/T, Western Union, MoneyGram
Product name :
bottle filling and capping machine
Dimension(L*W*H) :
L2000 * W1100 * H1650MM
Filling volume :
50-1000ml
Filling speed :
10-35 bottles/min
Filling accuracy :
≤ ±1%
Capping rate :
>= 98%
Power supply :
1 Ph. AC220V, 50/60Hz
Description

Automatic PET Bottle Milk Juice Water Filling Machine / Liquid Filling And Capping Machine

Performance Features


1. Workflow: bottle unscrambling→bottle washing (optional)→filling→adding dropper/(adding plug, adding cap)→screw capping→self adhesive labeling→ribbon printing (optional)→shrink sleeve labeling (optional)→inkjet printing (optional)→bottle collecting (optional)→cartoning (optional).
2.Machine uses a mechanical arm to screw caps, equipped with automatic sliding device, to prevent damage to the cap.
3.Machines uses plunger type metering pump filling (when the filling volume difference is large, the corresponding pump body needs to be replaced),high precision;

The structure of pump adopts fast disassembled mechanism,easy to clean and disinfect.
4. The filling nozzlewas equipped with drip-proof device.

When filling liquid ,the filling nozzle dive into the bottom of bottle,rising slowly,it can effectively prevent bubbles.
5. Color touch screen display, PLC control system, machine has function of counting automatically.
6. The whole line is compact, high speed, high degree of automation, save the manpower cost.
7. Main electrical elements adopt foreign well-known brands.
8. Machine shell is made of 304 stainless steel, easy to clean, meets GMP standard.

Technique Parameters

Model

YB-YG4

YB-YG6

Filing nozzle

4

6

Filling volume

50-1000ml

50-1000ml

Filling speed

10-35 bottles/min

20-70 bottles/min

Filling accuracy

≤ ±1%

≤ ±1%

Capping rate

≥ 98%

≥ 98%

Total power

1.6 KW

1.9 KW

Power supply

1 Ph. AC220V, 50/60Hz

1 Ph. AC220V, 50/60Hz

Machine size

L2000 × W1100 × H1650mm

L2300 × W1300 × H1650mm

Net weight

500kg

700kg

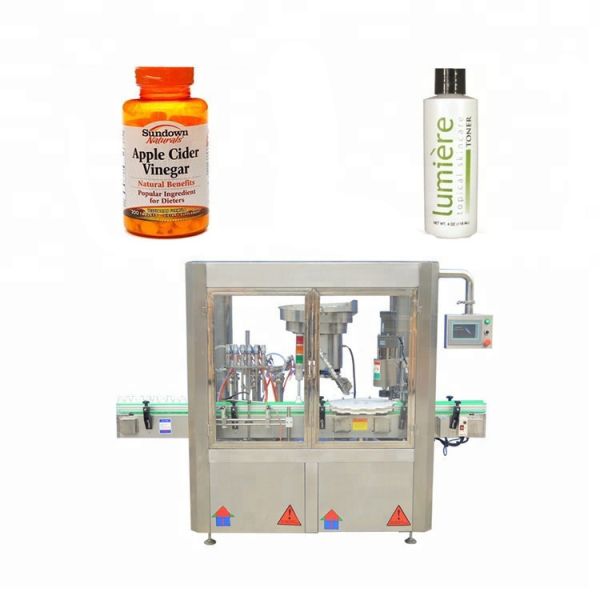

Machine main picture

Capping and turntable:

For different bottle size ,need change the cap and turntable

AC220V 50 / 60Hz Bottle Screw Capping Machine , Touch Screen Bottle Filling Capping Machine

For machine

For Liquid filling line we carry 2 heads /4 heads small dose eliquid filling line for both glass and plastic bottle filling machine, Chubby gorilla bottle filling line ,essential oil filling line ,rollerball perfume filling line and perfume spray filling line ,Aerosol can filling line .

For us

Yanban has been the Manufacturer of a wide range of products which include powder filling machine, multi head weigh filling machine, Liquid filling machine, Sauce filling machine, double head powder filling machine and granule filling machine. We support OEM Order ,Can make the machine according to customer's bottle shape .
