10-40 bottles/min Bottle Capping Machine PLC Control System Available
10-40 bottles/min Bottle Capping Machine PLC Control System Available
10-40 bottles/min Bottle Capping Machine PLC Control System Available
10-40 bottles/min Bottle Capping Machine PLC Control System Available
Specifications
Place of Origin :
Shanghai, China (Mainland)
Brand Name :
YB
Model Number :
YB-YGX4
Certification :
CE
Price :
US $1,0600-20,000 / Sets | 1 Set/Sets filling machine (Min. Order)
MOQ :
1 Set/Sets
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 sets per month
Delivery Time :
40-45 working day
Packaging Details :
standard wooden box
Name :
Bottle Capping Machine
Voltage :
220V
Power :
3.0 KW
Dimension(L*W*H) :
L6000 * W1500 * H1900mm
Weight :
1200kg
After-sales Service Provided :
Engineers available to service machinery overseas
Capacity :
10-40 bottles/min
Power supply :
1 Ph. AC220V, 50/60Hz
Description

YB-YGX4 Auto yogurt plastic bottle filling machine

We can customize the machines exactly according to your bottles and your requirements!

We are professional in bottle filling and bag packing machines field with many years experience!

Application:

The production line is mainly used for syrup, juice, wine, beverage, soy sauce, vinegar, cod-liver oil, plive oil, essential oil, hair oil, ink, disinfectant, injection, and so on various liquid fully automatic filling and production.

Performance Features:


1. Workflow: bottle unscrambling→bottle washing (optional)→filling→adding dropper/(adding plug, adding cap)→screw capping→self adhesive labeling→ribbon printing (optional)→shrink sleeve labeling (optional)→inkjet printing (optional)→bottle collecting (optional)→cartoning (optional).
2.Machine uses a mechanical arm to screw caps, equipped with automatic sliding device, toprevent damage to the cap.
3.Machines uses plunger type metering pump filling (when the filling volume difference is large, the corresponding pump body needs to be replaced),high precision;

The structure of pump adopts fast disassembled mechanism,easy to clean and disinfect.
4. The filling nozzlewas equipped with drip-proof device.

When filling liquid ,the filling nozzle dive into the bottom of bottle,rising slowly,it can effectively prevent bubbles.
5. Color touch screen display, PLC control system, machine has function of counting automatically.
6. The whole line is compact, high speed, high degree of automation, save the manpower cost.
7. Main electrical elements adopt foreign well-known brands.
8. Machine shell is made of 304 stainless steel, easy to clean, meets GMP standard.

Technical Parameter:

Bottle type

plastic bottle with plug or glass bottle

Model

YB-YGX4

Applicable specifications

50-500ml (other volume can be customized)

Filling head/nozzles

4 filling nozzles

Production capacity

10-40 bottles / min

Filling accuracy

±1%(depends on product)

Pass rate

≥98%

Power supply

1Ph. 220V , 50/60 Hz

Total Power

3.0 kw

Net weight

around 1200kg

Total dimension

L6000 * W1500 * H1900m

Details Image

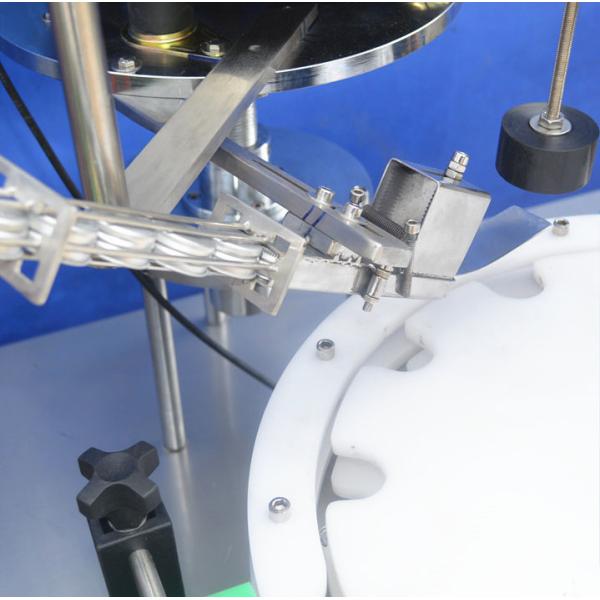

10-40 bottles/min Bottle Capping Machine PLC Control System Available
