220V 50 / 60Hz Automatic Bag Packing Machine For Metal Screw Bearing
220V 50 / 60Hz Automatic Bag Packing Machine For Metal Screw Bearing
220V 50 / 60Hz Automatic Bag Packing Machine For Metal Screw Bearing
220V 50 / 60Hz Automatic Bag Packing Machine For Metal Screw Bearing
Specifications
Place of Origin :
China (Mainland)
Brand Name :
YB
Model Number :
YB-150LD
Certification :
CE Certification
Price :
US $3,850-4,000 / Sets | 1 Set/Sets Hardware Counting Packing (Min. Order)
MOQ :
1 Set/Sets
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 sets per month
Delivery Time :
20-25 working days
Packaging Details :
standard wooden box
Name :
Automatic Bag Packing Machine
Condition :
New
Packaging Type :
Bags, Film, Pouch
Automatic Grade :
Automatic
Voltage :
220V 50/60Hz
Power :
1.6KW
Dimension(L*W*H) :
L2000 X W900 X 1600mm
After-sales Service Provided :
Engineers available to service machinery overseas
Description

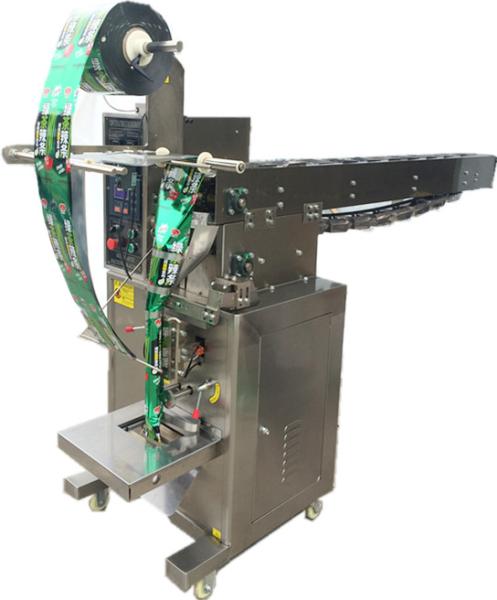

Shanghai YB-150LD Automatic packing machine for Metal Screw / Bearing / Plastic Parts / Electronic

Usage:

The machine is mainly used for packing large particles/flaky/irregular shape priduction: such as biscuits,potato chips,dumplings,quick-frozen balls,bean sprouts,mushrooms,meat,hardware accessories and so on.

Function and Features:

1. Working:Put prepared production into the chain bucket manually-conveying-coding(optional)-bag making-filling-gas injetction/exhaust(optional)-sealing-counting.

2.computer/PLC control,photoelectric tracking,gas fault display system,easy to operate and maintain.

3.Can make hole pinching blade,linked bags device or easy tear notch device and so on according to customer's request.

4.Machien body and all product touching pats are made of stainless steel(bucket materal:food grade plastic/stainless steel)

Technical Parameter:

Model YB-150LD
Packing speed 20-40bags/min
Packing range 5-200ml
Film width Max 280mm
Making bag size L 50-150mm,W 15-130mm
Power

1.6KW
Power supply

1 PH,220V,50/60Hz
Machine dimension

L 2000 X W900 X H1600 mm

Machine detals:

Film:

220V 50 / 60Hz Automatic Bag Packing Machine For Metal Screw Bearing

Chain bucket:

220V 50 / 60Hz Automatic Bag Packing Machine For Metal Screw Bearing
