5-35 bottles/min Pump Liquid Filling Machine , PLC Control Vial Liquid Filling Machine
5-35 bottles/min Pump Liquid Filling Machine , PLC Control Vial Liquid Filling Machine
5-35 bottles/min Pump Liquid Filling Machine , PLC Control Vial Liquid Filling Machine
5-35 bottles/min Pump Liquid Filling Machine , PLC Control Vial Liquid Filling Machine
Specifications
Brand Name :
YB
Model Number :
YB-YX2
Certification :
CE
Place of Origin :
Shanghai
MOQ :
1 SET
Price :
USD 10000-15000 per set
Payment Terms :
TT LC
Supply Ability :
50 sets per month
Delivery Time :
30-40 working days
Packaging Details :
stretch film and wooden box
product name :
Automatic e-liquid filling machine
Production capacity :
5-35 bottles/min
controller :
PLC control
operation :
Touch screen
material :
SUS304
Filling volume :
10-120ml
Description

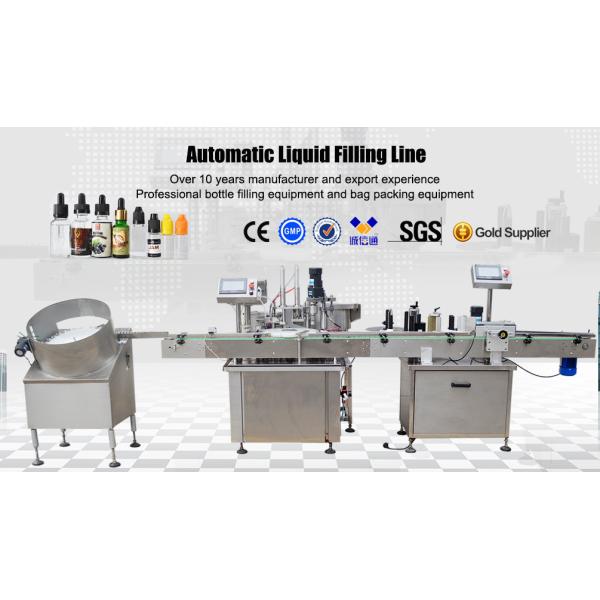

Automatic E-Liquid Filling And Capping Machine Line For 60ml 100ml 120ml Chubby Gorilla Bottle

Application

This production line is mainly used for electronic cigarette oil, eye drop, essential oil, nail polish, eye shadow and other products fully automatic filling production.

Performance Features


1. Workflow: bottle unscrambling→bottle washing (optional)→filling→adding dropper/(adding plug, adding cap)→screw capping→self adhesive labeling→ribbon printing (optional)→shrink sleeve labeling (optional)→inkjet printing (optional)→bottle collecting (optional)→cartoning (optional).
2. This machine use a mechanical arm to screw caps, equipped with automatic sliding device, to prevent damage to the cap.
3. Peristaltic pump or piston pump measuring, (if use piston pump, when the filling volume difference is large, the corresponding pump body needs to be replaced), accurate measurement, easy to control.
If use Peristaltic pump, machine can adjust filling volume on the touch screen, and when bottle is not enough, machine will stop filling automatically, avoid waste.
4. Filling system has suction / anti-drip device.
5. Color touch screen display, PLC control system, no bottle no filling (only peristaltic pump)/ no adding plug/ no capping.
6. The whole line is compact, high speed, high degree of automation, save the manpower cost.
7. Main electrical elements adopt foreign well-known brands.
8. Machine shell is made of 304 stainless steel, easy to clean, machine, meets GMP requirements.

Model YB-YX2
Filing head number 2
Adding plug/dropper head 1
Capping head number 1
Filling volume 2-120ml (Can be customized)
Capacity 5-35 bottles/min
Filling accuracy ≤ ±1%
Pass rate ≥ 98%
Power supply 1 Ph. AC220V, 50/60Hz
Total power 2.8 KW
Net weight About 850kg
Overall dimension L6200 × W1800 × H1600mm
