Full Automatic Perfume Filling Machine With Peristaltic Pump / Piston Pump
Full Automatic Perfume Filling Machine With Peristaltic Pump / Piston Pump
Specifications
Place of Origin :
Shanghai, China (Mainland)
Brand Name :
YB
Certification :
CE
Model Number :
YB-Y2
Price :
US $10800.00
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
35 working days
Packaging Details :
wooden box
Product name :
Eliquid filling machine
Dimension(L*W*H) :
2000*1600*1600mm
Weight :
500kg
name :
Eliquid filling machine
filling nozzle number :
2
filling range :
5-50ml
capacity :
15-40 bottles/min
pump type :
peristaltic pump
Description

Customized YB-Y2 Automatic 10ml 15ml 30ml Nail Polish Bottle Filling Machine

Product Description

Main character of eliquid, small liquid bottle filling machine

1.PLC control

2.No bottle, no filling

3.CE certificate+GMP standard

4.Full stainless steel machine

5. Peristaltic pump precise filling

This Production line including below machines

1) Plastic Bottle unscrambling machine

2) Bottle filling ,dropping and capping machine

3) Automatic lableing machine

4) Bottle collecting

Application

This production line is mainly used for electronic cigarette liquid, eye drop, nail polish, eye shadow, essential oil and so on products fully automatic filling production.

Performance Feature

1. The working process: bottle unscrambling-- bottle washing (optional)-- filling-- adding dropper/(adding plug -- adding cap)-- screw capping--self adhesive labeling/shrink sleeve labeling (optional) -- ribbon printing/inkjet printing (optional)-- cartoning (optional).

2. This machine adopts mechanical arm to screw caps, equipped with automatic sliding device, to prevent the cap damaging.

3. Peristaltic pump or piston pump filling, measuring precision, convenient manipulation.

4. Filling system has function of suck back, prevent the liquid leak through.

5. Color touch screen display, PLC control system, no bottle no filling (only peristaltic pump)/ no adding plug/ no capping.

6. The whole line is compact, high speed, high degree of automation, save the manpower cost.

7. Main electrical elements adopts foreign well-known brand.

8. Machine body is made by 304 stainless steel, easy to clean, machine is full compliance with GMP requirements.

Machine Usage and Features

This machine is mainly suitable for automatic filling, stoppering and screw capping of electronic cigarette liquid, eye drops, nail polish, eye shadow, essential oil, with filling volume less then 50 ml.

1. This machine adopts constant torque screw caps, equipped with automatic sliding device, to prevent the cap damage.

2. Peristaltic pump filling, measuring precision, convenient manipulation.

3. Filling system has function of suck back, avoid liquid leak through.

4. Color touch screen display, PLC control system, no bottle no filling, no adding plug, no capping.

5. Adding plug device can choose fixed mold or mechanical vacuum mold.

6. Machine body is made by 304 stainless steel, easy to dismantle and clean, full compliance with GMP requirements.

Technical Parameter

Model

YB-Y2

YB-Y4

Filling nozzle

2

4

Capacity

15-40 bottles/min

30-80 bottles/min

Filling volume

5-50ml

5-50ml

Filling accuracy

≥ 98%

≥ 98%

Power supply

1ph 220V, 50/60Hz

1ph 220V, 50/60Hz

Power

2.5 KW

2.8 KW

Overall dimension

1900 × 1800 ×1600mm

2200 × 2100 × 1600mm

Net weight

500kg

650kg

Warm tip

1. If out of filling volume range, we could customize for you.

2. If need higher capacity, pls reach us to customize the machine with more filling nozzles.

Machine Details

Peristaltic pump (achieve small volume liquid precise filling)

Full Automatic Perfume Filling Machine With Peristaltic Pump / Piston Pump

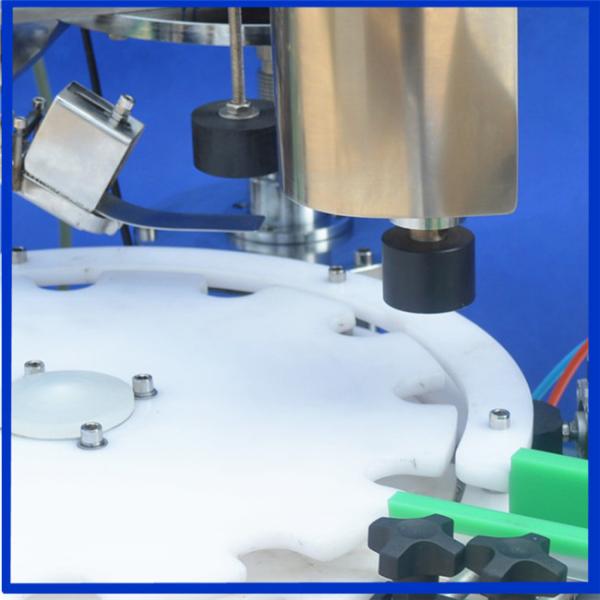

Automatic plug and cap feeder (SS-316)

Full Automatic Perfume Filling Machine With Peristaltic Pump / Piston Pump

Configuration List & Transaction Records

Color touch screen Brand: Weinview / Taiwan

PLC controller Brand: Mitsubishi / Japan

Frequency inverter Brand: Delta / Taiwan

Intermediate relay Brand: Omron / Japan

Motor Brand: Siemens / Germany

Air cylinder Brand: Air TAC / Taiwan
