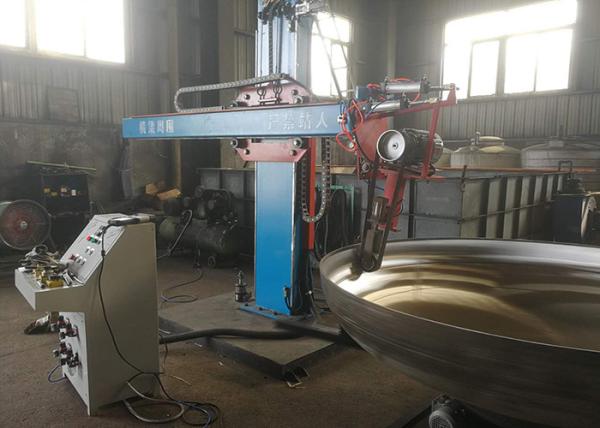

Optional Color Dished Head And Cone Polishing Machine With Small Column
Optional Color Dished Head And Cone Polishing Machine With Small Column
Optional Color Dished Head And Cone Polishing Machine With Small Column
Optional Color Dished Head And Cone Polishing Machine With Small Column
Optional Color Dished Head And Cone Polishing Machine With Small Column
Optional Color Dished Head And Cone Polishing Machine With Small Column
Specifications
Place of Origin :
HeFei,China
Brand Name :
ZTPolish
Model Number :
ZTD
Price :
US $1,000-10,000 / Sets | 1 Set/Sets (Min. Order)
MOQ :
1 Set/Sets
Certification :
CE.ISO9001.ISO14001
Packaging Details :
Plywood case
Supply Ability :
15 sets per month
After-sales Service Provided :
Overseas third-party support available
Name :
Automatic metal dished head polishing machine
Power supplier :
compliance the local standard
Rotary motor power :
0.75kw
Temperature :
-10--40℃
Relative humidity :
<90%
Weight :
1500kg
Feature :
mirror polished
Delivery time :
20-45days
Motor Speed :
2980r/min
MOQ :
1 set
Description

Automatic metal polishing machine for dished head

Product Description

The equipment is dedicated to all types of head, the inner and outer surface of coarse grinding, hairline and mirror polishing machine. According to the requirements of the design of different forms of grinding head.The machine is used for grinding and polishing all kinds of stainless steel products by using sand belt, thousand impeller, fiber wheel, and flax wheel etc

Application

1, The equipment can used for all kinds of oval head, butterfly head, tapered head, spherical head, flat head
2, It can used for chemical, food, biological, water treatment, pharmaceutical, dyeing and finishing, pressure vessels and other fields

Product nameDished head polishing machine
ModelZT-701
Final finish requirementMirror finish;hairline;matt
Processing diameter range500-3000mm
Grinding head motor power4KW;5.5KW
Draving motor power0.37KW;0.75KW
Workpiece rotation0.75-3KW
The length of abrasive belts1880*50mm
Applicable abrasive materialsbelts,flap wheel,flax wheel,cloth wheel
Buffing wheel size300*50*32mm
Power supply voltageAC three-phase 380V
Air Supply0.2-0.6MPa


All parameter listed in this table is only to supply reference,all dimensions is based on real solids.


Specifications of Automatic metal dished head polishing machine :

A), Polishing machine is used for polishing and buffing the stainless steel seal head, ellipsoidal head ,Butterfly head.
B), It is also called abrasive finishing machine,buffing machine, Application of the polish machine :stainless steel tank,vessel , seal head ,ellipsoidal
head ,Butterfly head inside or outside from 20-1200 mesh ,with mirror polished .
C), Specification of the polish machine :
D), Diameter:1000 - 8000 mm.
E), Machinery

Feature of Automatic metal dished head polishing machine :

1. Using cloth emery disc , low cost and high efficient ,mirror polished .
2. Frequency speed control ,high quality .
3. Roughness as 0.1 um.
4. Speed : 8 m2/hour .
5. Machinery.
Automatic metal dished head polishing machine advantages:

1, Easy-handing and safety.
2, Advantage design.
3, Almost full automatic control.
4, Equality heat and good heat distribution.
5, Durable and reliable.
6, Machinery.

Our Services:Engineers available to service machinery overseas

We are looking for the agents in diffrent country. If you have interest, plz contact me.

Main products

Tank polishing machine
Dished head polishing machine
Dual-use tank and seal head polishing machine
Plane polishing machine
Kitchenware polishing machine
Bent pipe polishing machine
Square pipe polishing machine
Round pipe polishing machine
Sand belts polishing machine'
Self-automatic polishing machine

After mirror polished
