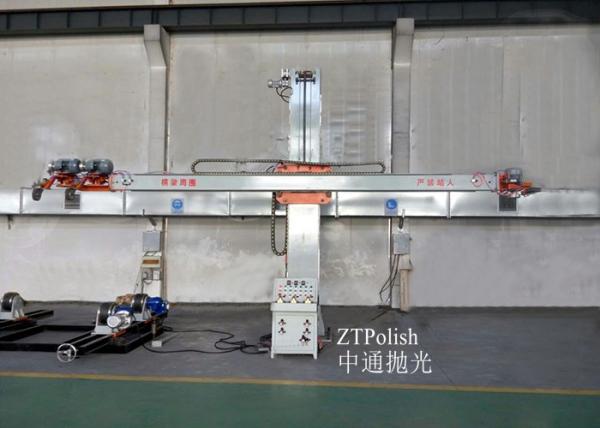

Dished Head Semi Automatic Polishing Machine 6000×1100×4500 mm Dimension


Specifications:

A) Polishing machine is used for polishing and buffing the stainless steel seal head, ellipsoidal head ,Butterfly head.
B) It is also called abrasive finishing machine,buffing machine, Application of the polish machine :stainless steel tank,vessel , seal head ,ellipsoidal head ,Butterfly head inside or outside from 20-1200 mesh ,with mirror polished .
C) Specification of the polish machine
D) Diameter 1000 - 8000 mm
E) Automatic polishing machine

Description:

The equipment is mainly used for polishing stainless steel tank , cylinder , cone , dish head etc . The inner and outer walls grinding and polishing.Machine consists of cross hosts, standard polishing head, electric control system, pneumatic system and dish head rotaring table, tank turing roll.

The workpiece range requirements:

① workpiece diameter range: φ600mm ~ φ 3500mm;
② horizontal polishing length: ≤3000mm (turn around can reach 4000mm)
③ Thickness:3-16mm
④ Final surface roughness:Ra0.2 Mirror finish(Through surface friction many times)

Feature of the polishing machine :

1. Using cloth emery disc , low cost and high efficient ,mirror polished .
2. Frequency speed control ,high quality .
3. Roughness as 0.1 um
4. Speed : 8m2/ h
5. Automatic polishing machine .

Machine advantages:

1, Easy-handing and safety.
2, Advantage design.
3, Almost full automatic control.
4, Equality heat and good heat distribution.
5, Durable and reliable.
6. Automatic polishing machine

Guarantee:

The installation under this order shall be guaranteed for one year. The electrics are guaranteed for 6 months. In the equipment guarantee period, due to supply-side’s design, manufacture, installation reasons caused quality problems, the supplier is responsible for all kinds of equipment failure and provide timely service for free.
After the machine warranty expires, the supplier still has the responsibility and obligation to provide services, can provide broadly , favorably and timely technical services and the necessary spare parts.

About us

Hefei Zhongtong Polishing Machine Co., Ltd. was established by the technical staff of Anhui General Machine Factory, which specializes in the design, manufacture, sale and installation of mechanical polishing equipment. It also provides the service of polishing process solution.Over the years the company in the metal surface abrasive grinding and polishing processing technology research and product development has accumulated a wealth of practical experience, has become the current polishing field of machine tool equipment development and supply one of the most influential enterprises.
We will continue to improve the quality of conventional products at the same time, to strengthen the polishing production line and polished polished intelligent equipment development, to create greater value for customers.
