2-6 Meters Stainless Steel Square Tube Polishing Machine / Mirror Polishing Machine
2-6 Meters Stainless Steel Square Tube Polishing Machine / Mirror Polishing Machine
2-6 Meters Stainless Steel Square Tube Polishing Machine / Mirror Polishing Machine
2-6 Meters Stainless Steel Square Tube Polishing Machine / Mirror Polishing Machine
2-6 Meters Stainless Steel Square Tube Polishing Machine / Mirror Polishing Machine
2-6 Meters Stainless Steel Square Tube Polishing Machine / Mirror Polishing Machine
2-6 Meters Stainless Steel Square Tube Polishing Machine / Mirror Polishing Machine
2-6 Meters Stainless Steel Square Tube Polishing Machine / Mirror Polishing Machine
Specifications
Place of Origin :
HeFei,China
Brand Name :
ZTPolish
Model Number :
ZTD
Price :
US $1,000-10,000 / Sets | 1 Set/Sets (Min. Order)
MOQ :
1 Set/Sets
Certification :
CE.ISO9001.ISO14001
Supply Ability :
10Sets per month
Packaging Details :
Plywood case
Delivery Time :
30-45 work days
After-sales Service Provided :
Overseas third-party support available
Relative humidity :
<90%
Temperature :
-10--40℃
Avaliable materials :
Metal
Delivery time :
20-60days
Color :
Optional
Advantages :
High quality and lower price
OEM :
welcome
MOQ :
1 set
Type :
Square tube polishing machine
Name :
Stainless steel tube pipe polishing machine
Description

2-6 meters Stainless steel square tube hairline or mirror polishing machine

Feature of stainless steel square tube polishing machine:

1. Using cloth emery disc , low cost and high efficient ,mirror polished .

2. Frequency speed control ,high quality .

3. The height and angle of rollers are adjustable,can satisfy kinds of specification.

4. Adopts hyperboloid roller design which can improve the surface and roundness of tubes.

5. Six durable alloy tool steel rollers.

6. Equality heat and good heat distribution.

7. Durable and reliable.

8. Stainless steel tube pipe polishing machine

Specifications of stainless steel square tube polishing machine
Buffing wheel motor power Nx4kw
Workpiece rotation motor power 1.5kw
Rotate speed 2800r/min
Work efficiency 2-10m/min
Size 2800x1500x1300mm
Roughness Ra<0.1um
Power supply According to your demand
Avaliable materials For metal with different size
Avaliable range According to your requirements
Avaliable buffing materials Abrasive belt, flap wheel,Nylon,Hemp wheel and cloth wheel

Product Description

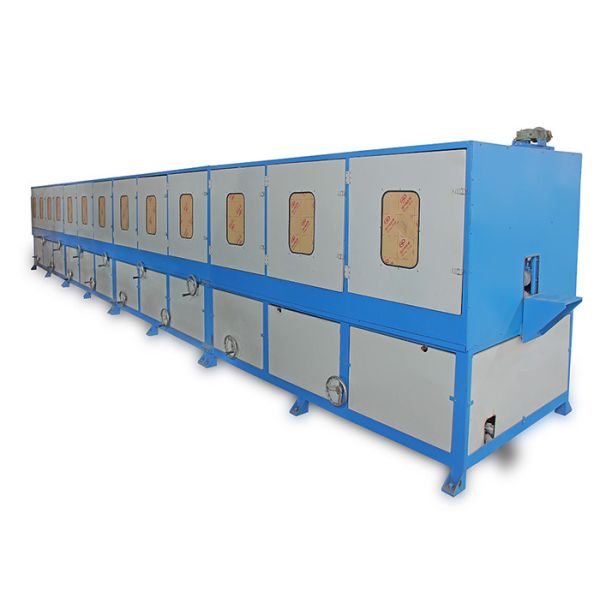

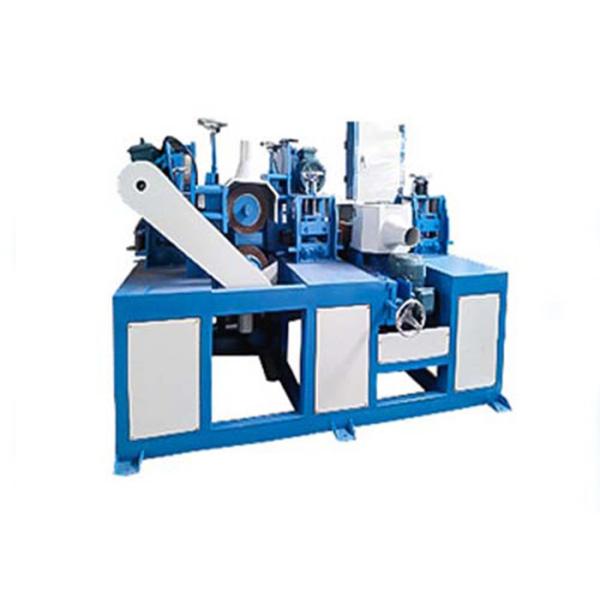

The automatic square tube polishing machine adopts the design principle of the automatic tube polishing unit, and is modified on the polishing wheel combination, so that the four polishing heads polished in four directions of each unit are processed for the four sides of the square tube. Multiple sets of combinations to facilitate multiple processing steps from sanding to fine polishing. This type of equipment is suitable for the production of large-scale, high-efficiency processing modes. Square tube polishing machine is suitable for rust removal and mirror polishing of various metal outer surfaces of rectangular profiles. The polishing method uses dry throwing. Each time the thickness can be differently polished. This machine can be used for aluminum, iron, copper and stainless steel square surfaces. High quality sanding. Polishing.

2-6 Meters Stainless Steel Square Tube Polishing Machine / Mirror Polishing Machine

2-6 Meters Stainless Steel Square Tube Polishing Machine / Mirror Polishing Machine

2-6 Meters Stainless Steel Square Tube Polishing Machine / Mirror Polishing Machine

Packaging & Shipping

1. Square tube polishing machine will be delivered in 30days

2. Square tube polishing machine is wrapped by film and packed in a wooden case.

Our Services

Overseas third-party support available.

We are looking for the agent in different country. If you are interested in it, Please contact us.

Main products

Tank polishing machine

Dished head polishing machine

Dual-use tank and seal head polishing machine

Plane polishing machine

Kitchenware polishing machine

Bent pipe polishing machine

Square pipe polishing machine

Round pipe polishing machine

Sand belts polishing machine

Self-automatic polishing machine
