8 Colors Label High Speed Flexo Printing Machine 85 M/Min Working Speed
8 Colors Label High Speed Flexo Printing Machine 85 M/Min Working Speed
Specifications
Brand Name :
Allfine
Model Number :
LC-RY8450
Certification :
CE
Place of Origin :
Wenzhou city Pinyang
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5sets/50 days
Delivery Time :
50days
Packaging Details :
fumigation at exported standard
Printing speed :
85m/min
Printing colors :
8
Max paper width :
450mm
Name :
8 colors 450 350 550 Label Flexo printing machinery with one die cutting station and conveyor still image function
Max unwinding diameter :
650mm
Max rewinding diameter :
650mm
Description

Allfine Group-20 years experience Solution
1:Label production line- flexo print machine,die cutting machine,slitting machine,inspection and rewinding machine
2:Flexible package line-water bottle label PVC,heat transfer Pet, Opp, Pe etc rotogravure printer, dry laminator, PP PE film blowing machine,bag making machine
3:Decal paper,wine and smoking package-Silk screen press machinery, wicket dryer, uv dryer
4:Paper cup production line- flexo printer. die cutting machine, paper cup making machine
1: Save material 2: Improve efficiency 3:Professional tranning 4: Factory built
Partner Manager-Jack Huang
Allfine Group

8 colors 450 350 550 Label Flexo printing machinery with one die cutting station and conveyor still image function

flexo printing production line.pdf

Features:

1.main motor use imported Variable frequency stepless speed regulation
2.unwinding and rewinding by magnetic brake,clutch control( optional:mitsubishi auto tension controller)
3.Unwinding device controlled by auto web guide sensor
4.Use the ceramic anilox roller, more wear and corrosion resistance and longer life, reduce the time of replacement of anilox roller, improve the printing efficiency
5.Printing unit use 360 degree adjustment for web. they can be printed connected or separated
6.very printing unit have one IR dryer
7.Optional:UV dryer
8.Rewinding and unwinding adopt tile air shaft
9.The ink roller can be auto break away and running at low speed to prevent ink from drying
10.auto add oil for the die cutting system, to reduce the heating made by magnetic die cutting roller when using
11.from feeding paper, printing, gluing, uv polishing, laminating, printing, Reverse die cutting, die cutting, die cutting dotted line, rewinding finished continues, take advantage of widely printing, no oil pollution, high economic efficient, fast printing ect,. Ideal for the logistic label printing

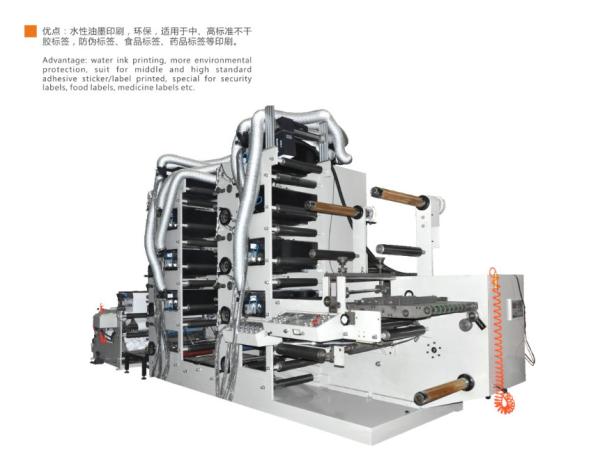

Advantage:water ink printing,more environmental protection,suit for middle and high standard adhesive sticker/label printed, special for security labels,food labels,medicine labels etc
Datasheet
printing speed 85m/min
printing colors 8
Max paper width 450mm
Max unwinding diameter 1000mm
Max rewinding diameter 800mm
Printing perimeter 175-381mm
UV dryer group 1
Precision +-0.1mm
Max printing width 420mm
Machine size 6000*1500*3100
Machine weight about 8000kg

LC-RY8450 flexo printing machine in Zimbabwe customers factory 8 colors 8 uv separted unwinding device with still image function and conveyor with belt

https://www.youtube.com/watch?v=-bv9LVi7f30

Our Service and Technical Support:

1.Easy fault parts supplying.

2.Online Error solution

3.Installation with commissioning

4.Trainning for the operator

5.Machine software upgraded

6.Manual for products.

7.Error maintenace.

8.The others problems that buyers will be concern

There will be an operation training for operator:

(1) Training for right operation;
(2) Training for common sense of daily maintenance;
(3) Introducing after-sale services and training for solutions;

(4) Introducing after-sale services and notify the contact way; Accessories supply guarantee: We supply free accessories within one year warranty period. We will charge you for accessories supply when the warranty is overdue;
