Electric Driven Bag Making Equipment , Plastic Film Heat Sealing Machine
Electric Driven Bag Making Equipment , Plastic Film Heat Sealing Machine
Electric Driven Bag Making Equipment , Plastic Film Heat Sealing Machine
Electric Driven Bag Making Equipment , Plastic Film Heat Sealing Machine
Specifications
Brand Name :
Allfine
Model Number :
LC-400*2
Certification :
CE
Place of Origin :
Wenzhou city Pinyang
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
60 sets/ 25 days
Delivery Time :
25 days
Packaging Details :
Fumigated wooden box
Extrusion Output(Single) :
80-140pcs/min
Single-Sided Thickness Of Film :
0.008-0.15mm
Max Bag Making Width :
100-400mm
Max Cutting Length :
1200 mm
Name :
Electric Drive Continuous Vertical Type Heat Band plastic film heat sealing machine for Sealer
Max Material Diameter: :
500mm
Description

Electric Drive Continuous Vertical Type Heat Band plastic film heat sealing machine for Sealer

Plastic bag production line.pdf

Usage

This machine is suitable for folding and sealing plastic film such as OPP, CPP, PP,PE,POF before making bag,with web-guiding and ultrasonic embossing.

Features

This machine is one part of the thermal cutting machine set, with functions of automatic gluing, orgen-type bottom folding, pearly-luster film laminating, ultrasonic hobbing, automatic meter counting, winding and unwinding for materials, magnetism powder brake,epc. This is a front production line of cutting machine.

1) Unwinding and rewinding motor sychronized running, ensure material feeding stable and smooth.

2) Magnetic brake for unwinding tension control.

3) Magnetic clutch for rewinding tension control.

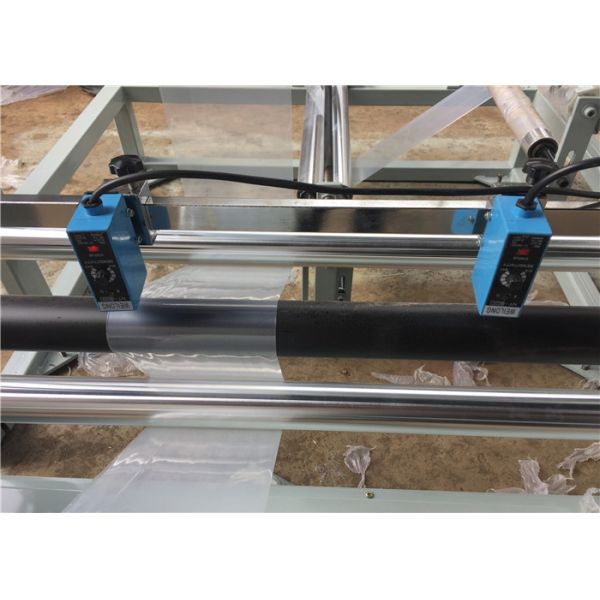

4) Unwinding with double photocell for automatic web-guiding.

5) With the function of bottom insert and double side-adhesive tape adding.
6) Main motor with frequency converter for speed regulation.

MODLE LC-1200FDS LC-1400FDS LC-1600FDS
Width of jumbo roll 550mm 650mm 750mm
Dia of jumbo roll 990mm 990mm 990mm
Line speed 90m/min 90m/min 90m/min
Total power(kw) 1.5 2 2.5
Weight (kg) 850 950 1050
Dimension LxWxH(mm) 3000×1200×1500 3000×1300×1500 3000×1400×1500

Our Services

We guarantee fix for the equipment for 1 Year and only change spare parts which belong to the bad quality of equipment in one year(except man-made causation) Debugging and Installation:Seller delegates engineers to RECIPIENT to make a supervision of correct installation, commissioning and provide training by asking of Buyer. Buyer will pay for round trip tickets, habitations, food for Seller’s engineers, and USD100 per day for subsidy.

HD video link about LC-1400FDS film folding and side sealing machine
https://youtu.be/YxWDuB_AdAI

HD video link about LC-PE tube film side gusseting machine edge Inserting machine
https://youtu.be/lIZ7bTwuWnU

================================================================
HD video link about LC-600 Plastic T-shirt bag making machine
https://youtu.be/ZpTga-G8xzI

================================================================
HD Video link about LC-45 mini type film blowing machine
https://youtu.be/d1BY1mQprn0

HD Video link about LC-1500 PE film blowing machine extruder (1500mm width, export to Bangladesh)
https://youtu.be/ahjr26sz_aI

video link about PE film blowing machine (800mm width)
https://youtu.be/u1fE5WYQtNw

video link about PE film blowing machine (1500mm width)
https://youtu.be/UZE33UWpzSc

================================================================

Flexo printing machine (6 colors, 1000mm width, 60m/min printing speed)
https://youtu.be/1x1PsG66ecI

================================================================
