Fully Automatic Window Patching Machine Screen Print Gluing For Paper / Carton Box
Fully Automatic Window Patching Machine Screen Print Gluing For Paper / Carton Box
Specifications
Brand Name :
Allfine
Model Number :
900TC
Certification :
CE;ISO;UL
Place of Origin :
Wenzhou city Pinyang
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10sets/month
Delivery Time :
30days
Packaging Details :
wooden box
Max. Sheet Size :
900×500mm
Max. Working Speed :
500-2200pcs/h
Cardboard :
120~700gsm
Name :
LC-900TC fully automatic Window Patching Machine/window film machine/window sticker gluer for paper box and carton box
Corrugated Board: :
≤5mm
Total Power: :
11.3kw
Description

LC-900TC fully automatic Window Patching Machine/window film machine/window sticker gluer for paper box and carton box
screen printing production line.pdf

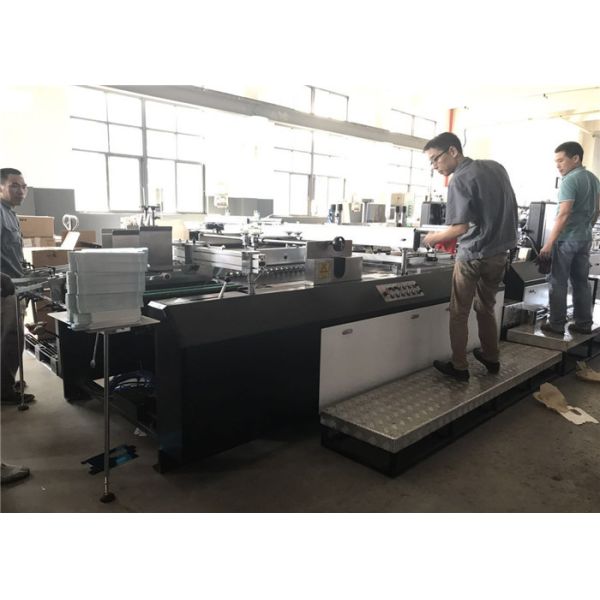

LC-900TC Window Patching Machine

Feature:
Automatic profiled window stickers used for various type of paper box and carton box window patching after die cutting and creasing. suit for after cutting angle, line ball piece type film bonding. this machine adopt screen print gluing;gluing uniformly;servo feeding positioning printing;three-point positioning laminating,high precision printing and laminating;achieve multiple parallel film bonding; best choice for high-end toy box, packaging box,cosmetics boxes, wine boxes etc window processing.

Model LC-900TC
Max. Sheet Size 900×500mm
Min. Sheet Size 150×100mm
Max. Film Size 450×280mm
Min. Film Size 20×20mm
Film Thickness 0.1~1.0mm
Max. Working Speed 500-2200pcs/h
Cardboard 120~700gsm
Corrugated Board ≤5mm
Total Power 11.3kw
Weight 2000kgs
Dimension(LxWxH) 7200×2360×1550mm
1. Bottom friction box feeder ensures smooth and stable box feeding.
2. Photo-electric tracing and central controlfor box feeding and correction before gluing.
3. Air suction pass the cutted film preciously to the window area for gluing.
4. Shaped film must be cutted well before appliaction on this machine, so it can do various shaped box.
5. PLC, man-machine interface, central control are adopted to realize the automatic functions of box feeding, conveying, gluing, film patching and collecting before folding boxes.
6. Screen printing glue applicater with even and solid glue application on the box.
7. Button and touch screen setting for easy operation.



video link about LC-900TC auto window patching machine( this machine sold to FOXCONN 50 sets, and USA famous comestic box 10 sest)
https://youtu.be/v5FsIQShpms
https://youtu.be/AsCKvwn-kow
Fully Automatic Window Patching Machine Screen Print Gluing For Paper / Carton Box

For more information, please add my whatapp/viber/mobile/wechat/qq:+8615158408090

Our mission:
1.Warranty Time:12 months/one year.

2.Our aim:Customer is the God, if you not buy the first time,it will be your fault, if you buy but not buy second time, it will be our fault.
A replacement can be made after the confirmation made by our related department when parts breakdown under the condition of right used within warranty period. The company develops file for every single machine that is made. Serial numbers are marked on each machine part and archived. It’s pretty convenient for our clients to change spare parts when necessary. The only thing you need to do is to provide us the serial numbers on the spare parts, which need to be replaced. Moreover, we provide one year warranty after sale. We offer free spare parts within the warranty time, except damages caused by human factors and irresistible external factors.

3. If buyers damaged any parts of the machine without abiding by the using condition, using environment and usage that the instruction manual demanded within warranty time, we will only provide paid services under this situation.

4. There will be an operation training for operator:
(1) Training for right operation;
(2) Training for common sense of daily maintenance;
(3) Introducing after-sale services and training for solutions;
(4) Introducing after-sale services and notify the contact way; Accessories supply guarantee: We supply free accessories within one year warranty period. We will charge you for accessories supply when the warranty is overdue;
