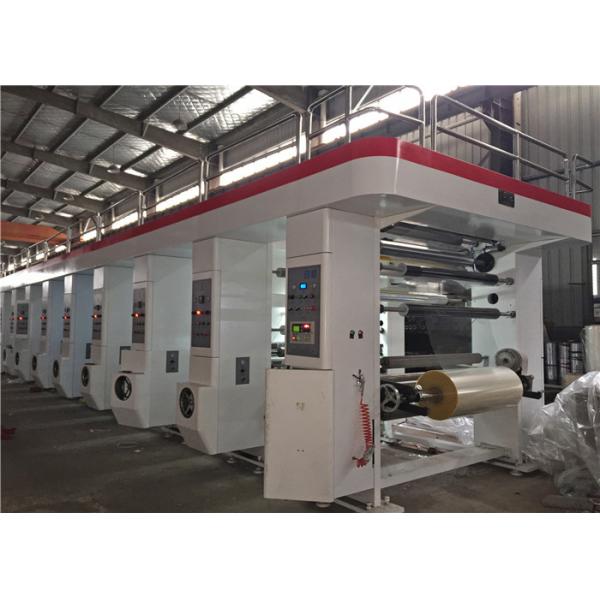

Automatic Splicing Gravure Printing Press , Precision Gravure Printing Machine Energy Saving
Automatic Splicing Gravure Printing Press , Precision Gravure Printing Machine Energy Saving
Automatic Splicing Gravure Printing Press , Precision Gravure Printing Machine Energy Saving
Automatic Splicing Gravure Printing Press , Precision Gravure Printing Machine Energy Saving
Specifications
Brand Name :
Allfine
Model Number :
LC-ASY H
Certification :
CE
Place of Origin :
Wenzhou city Pinyang
MOQ :
1
Price :
negotiation
Payment Terms :
L/C,T/T, Western Union, MoneyGram
Supply Ability :
5 sets/60 working days
Delivery Time :
60 working days
Packaging Details :
film package
colors :
8
Printing speed :
150m/min （Variable because of different ink, film, familiarity of operator）
Printing cylinder diameter :
Φ90mm---Φ390mm
Name :
800mm 8 color LC-ASY H model Roto Gravure printing machine 7 motor automatic splicing and exchanging
Tension control precision :
±0.5kgf
Core, I.D. of raw material :
Φ76mm
Description

Allfine Group-20 years experience Solution

1:Label production line- flexo print machine,die cutting machine,slitting machine,inspection and rewinding machine
2:Flexible package line-water bottle label PVC,heat transfer Pet, Opp, Pe etc rotogravure printer, dry laminator, PP PE film blowing machine,bag making machine
3:Decal paper,wine and smoking package-Silk screen press machinery, wicket dryer, uv dryer
4:Paper cup production line- flexo printer. die cutting machine, paper cup making machine

1: Save material 2: Improve efficiency 3:Professional tranning 4: Factory built

Partner Manager-Jack Huang
Allfine Group

800mm 8 color LC-ASY H model Roto Gravure printing machine 7 motor automatic splicing and exchanging
rotogravure printing production line.pdf
Usage:
Machines in this series are applicable for continuous multi-color printing on rolling materials in good printing performance such as cellophane, BOPP, PET, PVC, PE, aluminum foil, and paper, broadly applied for all types of super-quality printed matters.

1. Unwind and unwinding traction system 1 group

2. Print unit 8 groups

3. Rewind and rewinding traction system 1 grou

4. Camera 1pc

5. Extra unwind and rewind system 2 groups

Main Technical Specification:

1. Printing material:

PVC 35---65um

OPP 12---60um

BOPP 12---60um

PET 12---60um

PE 30---100um

NY 15---50um

CPP 20---60um

2. Max printing width 800mm

3. Max printing cylinder width 880mm

4. Printing cylinder diameter Φ90mm---Φ390mm

5. Max machine speed 170m/min

6. Max printing speed 150m/min

7. Register error ±0.1mm

8.Unwinding diameter /Rewinding diameter Φ600mm

9. Air shaft diameter Φ74mm

10.Rewinding and unwinding paper core diameter Φ76mm ~Φ96mm

11. Main motor power 11kw

12. Oven heating power 96kw

13. Total power : about 150kw (normal runing power 70kw)

14. Machine color : off-white color

15. Machine overall dimension: 15000(L) Χ 2800(W) Χ 2600(H) mm

16. Machine weight: about 15000 KG

video link of LC-E model rotogravure printing machine (Aluminum foil, paper, plastic film)
https://youtu.be/NPGk7K2FOhQ

video link about LC-E model rotogravure printing machine (Export to Pakistan, print aluminum foil, BOPP, PE, PVC, PET,Paper)
https://youtu.be/lZ8PziP51Xk

Automatic Splicing Gravure Printing Press , Precision Gravure Printing Machine Energy Saving

We offer 24 hours after-sale consulting services nationwide on hotline;

Video solution of equipment emergency failure. User themselves need to equip video system and devices. Our technicians will analyze the problems through video and guide clients’ technician to solve the problem all together.

Q:How to get to Ruian Allfine Machinery Co Ltd

A:

1. If you take plane to our factory . Our airport is Wenzhou Longwan International Airport .It is about 40 minutes from airport to our factory .You can fly to wenzhou airport from Shanghai , Beijing , Guangzhou first . Shanghai City is our nearest International city .It is about 50 minutes from Shanghai to Wenzhou Airport. and from Guangzhou Baiyun airport to Wenzhou Airport is about 2 hours. from Beijing Airport to Wenzhou Airport, it will take about 2 hours 40 minutes.

2. If you take high speed bullet train to our city , Our train station is Ruian train station . It is about 30 minutes from train station to our factory by car . You can fly to wenzhou airport from Shanghai , Beijing , Guangzhou first , Shanghai City is our nearest International city .It is about 4hour and 30 minuets from Shanghai station to Ruian Station .

Q:Do you have any recommended hotel for us?

A:Our company can help to book the favorable room at the better rate for you. if you prefer to do it yourselves, we would like to suggest the hotel as following as your reference.

Ruian International Hotel.

Star:4

ADD:NO.555,WanSong east road,ruian city,Zhejiang province 325200
TEL:86-577-65886666
FAX:86-577-65882222
E-mail:raihotel@raihotel.com
WEB:www.raihotel.com

Price:333-641RMB
