Specifications
Brand Name :
Allfine
Model Number :
LC-GSFQJ-1300
Certification :
CE
Place of Origin :
Wenzhou city Pinyang
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10 sets/month
Delivery Time :
40 working days
Packaging Details :
wooden box with fumigation
Maximum unwind diameter :
800mm
Maximum rewind diameter :
500mm
Unwind Unwind width :
400-1300
Maximum machine speed :
400m/m
Slitting width :
30-1300mm
Name :
J-1300 High-speed Slitting Machine 800mm unwind 500mm rewind 400m/m shaftless double slipped air shafts PLC import parts
Description

Allfine Group-20 years experience Solution
1:Label production line- flexo print machine,die cutting machine,slitting machine,inspection and rewinding machine
2:Flexible package line-water bottle label PVC,heat transfer Pet, Opp, Pe etc rotogravure printer, dry laminator, PP PE film blowing machine,bag making machine
3:Decal paper,wine and smoking package-Silk screen press machinery, wicket dryer, uv dryer
4:Paper cup production line- flexo printer. die cutting machine, paper cup making machine
1: Save material 2: Improve efficiency 3:Professional tranning 4: Factory built
Partner Manager-Jack Huang
Allfine Group

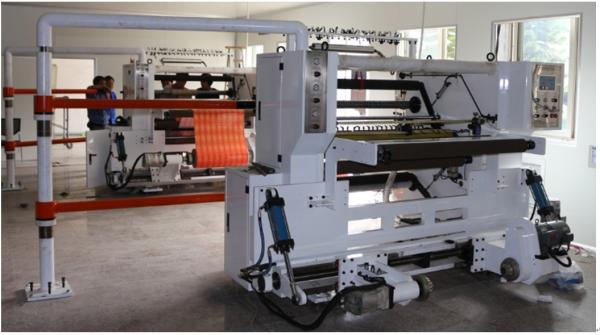

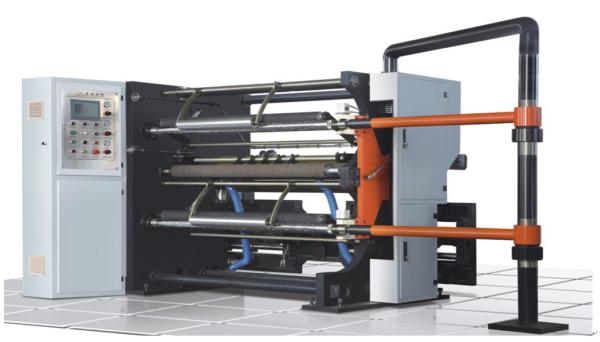

J-1300 High-speed Slitting Machine 800mm unwind 500mm rewind 400m/m shaftless double slipped air shafts PLC import parts
rotogravure printing production line.pdf
Usage characteristic:
This machine is used to rewind and cut all kinds of roll materials such as BOPP, PET, CPP and PVC,ABS,PC,label sticker, adhesive stickers, paper, opp, Film, alu foil ect

FEATURE
1. Imported PLC integrated control is used in electrical control system, human-machine communication is carried out by touch screen, Set and display working parameters according to the requirements from different products.
2. Rewinder adopts vector frequency inverter, roller diameter calculated by PLC to realize automatic tension control.
3. Unwinder adopts magnetic powder brake, roller diameter calculated by PLC to realize automatic tension control.
4. Loading and unloading using air shaft and up-down by air cylinder. It is easy for loading , unloading and with high efficiency, has web guide system.(Hydraulic feeding is optional)

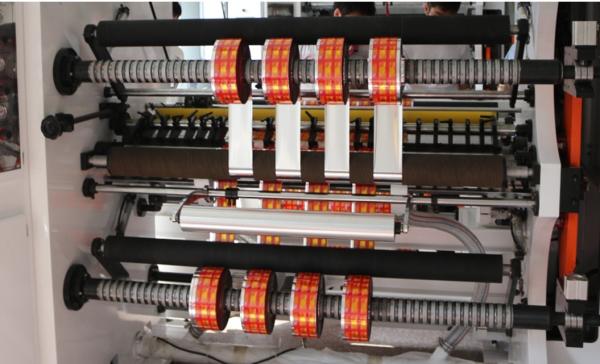

5. Rewinding shaft is double slip air shaft, uses the straight knife and rotary knives for slitting, regularity disc surface, air exhausting device for the waste.
6. system with meter counting, winding diameter operation, automatic machine stop when lack of material or setting length you need first, etc.
7. The system has perfect integration design with machine, electricity and pneumatic, and takes complete safety protective measures.

Technical data
Maximum unwind diameter 800mm
Maximum rewind diameter 500mm
Unwind width 400 – 1300mm
Unwinding Paper Core Diameter 76mm(3”)
Maximum machine speed 400 M/min
Slitting width 30 – 1300mm
Deviation correction precision +/- 0.4mm
Machine inner width 1540 mm
Rectification precision ≤0.40mm
Unwinding magnetic powder brake 10kg
Total power 9kw
Machine size 2500 x 4200 x 2000mm
Machine weight 3500kg
Machine colour red, white, gray (if you need, we can customized as your requirement)
Slitting material Film12-180um , paper, adhesive paper, PE, PVC 40um 150um, Al foil 10 to 45um


Spare Parts follow with machine
1. Male round blade 10pcs
2. Female blade 10pcs

3. Tool kit 1pcs

video link :info me for the MP4
For more information, please add my whatapp/viber/mobile/wechat/qq:+8615158408090

For metal coils, the splitter consists of three main parts: an uncoiler, splitter, and recoiler. The material is fed from the uncoiler, through the nip between the two circular cutting wheels (one on top and another underneath), and then re-wound in slit pieces on the recoiler.
When the term "slitter rewinder" or "slitting machine" is used to describe the machine, the three parts are referred to as the unwind, the slitting section and the rewind.
