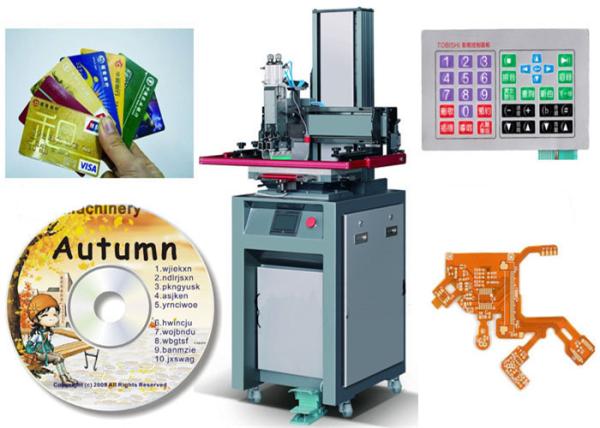

LC SERIES Small flatbed Type Horizontal-lift Half-tone flat screen Printing Machine small size film/sheet/board PCB ect
screen printing production line.pdf
We provide the classic automatic stop-cylinder screen press with max. speed up to 4,000 sheets/hour, which can compete with world famous brand like Sakurai and SPS. And the semi-automatic and 3/4 automatic flat-bed screen press are also available for short run jobs. You can also find all necessary auxilaury machines for making the screen plate in our product range.

After equipped with various dryers and cooling systems, the production line can work out multi-color screen printing, UV spot gloss varnishing, glitter coating, scatcher card printing, decal screen printing and also a few kinds of luxurious finishing effects for the printed sheets.

Application

It is mainly for printing on small size film/sheet/board, such as FPC, IMD, MEMBRANE, Mobile glass, PC
glass, Solar silicon chip, biological test piece, OPTO- Electronics, Electric elements etc.

Features:

1.High precision printing stainless steel table, ensure the precision of printing substrate;
2.The controller is DC motor with high precision lead-rail which driving screen vertical up-down structure running fast, silence and smooth, which is much better than servo-motor .
3.The up-down of screen frame adopts SEW gear reducer motor from Germany, work with advanced high course transmission screw and encoder , the running speed is high and location is extremely exact.
4.Vertical slide set structure adopts linear lead-rail and a integrated aluminium alloy structure, which improve the precision and durability, the load bearing strength is strong, stable and silent.
5.Screen carrier is designed as active and cantilevered, shift and adjustment easily;
6.Escape oiling type three point combination which doesn't have exhaust, oil pollution, suitable for using in clean indoor
7.Electric type structure, little gas exhaust, 1/2HP air compressor can drive, save energy conversion cost 30% for long time use.
8.HMI for digital control plus multi functions make the operation conveniently;
9.Saftey bar/emergency stop push button ensure the safety of operator .
