CPP PVC Computerized Rotogravure Printing Press , Rotogravure Cylinder Printing Machine
CPP PVC Computerized Rotogravure Printing Press , Rotogravure Cylinder Printing Machine
CPP PVC Computerized Rotogravure Printing Press , Rotogravure Cylinder Printing Machine
CPP PVC Computerized Rotogravure Printing Press , Rotogravure Cylinder Printing Machine
Specifications
Brand Name :
Allfine
Model Number :
LC-A-H
Certification :
CE
Place of Origin :
Wenzhou city Pinyang
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5 sets/ 80 working days
Delivery Time :
80 working days
Packaging Details :
film
Color quantity :
4 colors (possible To Add Or Reduce Printing Color Class)
Max. Width of printing :
800mm(600mm,1000mm,1100mm,1200mm,2500mm)
Mechanical speed :
320m/m
Printing speed :
300m/min （Variable because of different ink, film, familiarity of operator）
Dia. of printing cylinder :
Φ120mm~Φ320mm
Name :
PE PP BOPP CPP PVC computerized rotogravure printing machine high precision PLC auto color vertical horizontal register
Description

Allfine Group-20 years experience Solution
1:Label production line- flexo print machine,die cutting machine,slitting machine,inspection and rewinding machine
2:Flexible package line-water bottle label PVC,heat transfer Pet, Opp, Pe etc rotogravure printer, dry laminator, PP PE film blowing machine,bag making machine
3:Decal paper,wine and smoking package-Silk screen press machinery, wicket dryer, uv dryer
4:Paper cup production line- flexo printer. die cutting machine, paper cup making machine

1: Save material 2: Improve efficiency 3:Professional tranning 4: Factory built

Partner Manager-Jack Huang
Allfine Group

PE PP BOPP CPP PVC computerized rotogravure printing machine high precision PLC auto color vertical horizontal register

rotogravure printing production line.pdf

OPP 18~60μm PET 12~60μm
PE 40~80μm BOPP 19~60μm
CPP 20~60μm NY 12~50μm
PVC 20~80μm
Paper 30~80g/ m2

Color quantity 4
Max. Width of printing 800mm
Mechanical speed 320m/min
Printing speed 300m/min (Variable because of different ink, film, familiarity of operator)
Length of printing cylinder 480~1000mm
Dia. of printing cylinder Φ120mm~Φ320mm
Color control precision ±0.10mm (Variable because of different ink, film, familiarity of operator)
Max. unwind/rewind Dia.: Φ750mm
Tension range 3~50kgf
Tension control precision ±0.5kgf
Paper core diameter 3
Core, I.D. of raw material Φ76mm
Pneumatic source 0.6Mpa
Impression roller pressure 370kgf
Doctor blade transverse move range ±5mm
Drying mode Electrical heating
Heating power(power of drying) 50×6=300Kw
Mail motor 4Kw(6 SET)
Power consumption 380 KW
Machine size 22000×4400×3500(mm)
Machine weight Near 30000kg
Automatic speed up/down to the target speed gradually
Max. speed limit can be set for different material or cylinder size
Idle or running status can be exchanged

Note:

For user prepare for:

  1. Power resource: 3 phase X380V X 50HZ
  2. Line power: 240kW
  3. Pneumatic source: pressure of 6~7kg/cm2
  4. Blower pipe: from Extract blower to main blower pipe of the machine
  5. Extract Blower: 1.5kW, centrifugal blower
  6. Main parts are adopted imported famous brand

  • Servo motor:Yaskawa
  • Servo motor controller: Yaskawa
  • Auto tension controller: touch screen + PLC(Seimens)
  • Vertical colored system :1 set Wuhan HUAMAO
  • Main motor : Yaskawa
  • Servo motor controller:Yaskawa
  • MAIN BEARING:NSK
  • Main low voltage apparatus :Schneider
  • Unwind motor:ABB
  • Unwinding controller:Yaskawa
  • mini friction air cylinder:French
  • Precision pressure regulating valve:French

    Statement:
    1. The ink types, materials, printing area will effect printing speed.
    2. Since this model is one of the high-tech products, according to the design requirements, we reserve the right to change some structure and parameters in order to provide you better equipment.

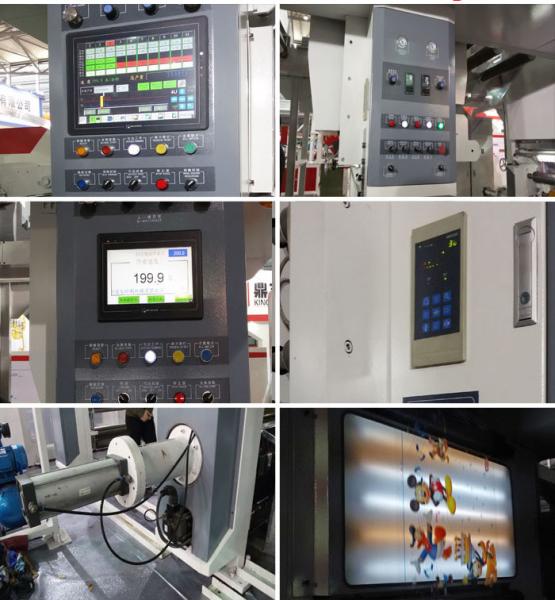

Structure

  • Auto position limit for unwind stand turning
  • Pre-driving of waiting roller before roll exchange and splicing
  • Closed loop tension control
  • Auto tension controller: touch screen + PLC(Seimens)
  • The opposite sensor couple automatic position the new reel for unwind
  • Tension detect: displacement of dancing roller
  • Dancing roller driven by mini friction air cylinder
  • Independent driving control system: vector frequency conversion control system
  • Loading web mode: air shaft
  • Structure: turret type with independent unwind stand

with the advantage of excellent processing technology, grown machinery spare parts industrial zone, good location and development prospects, which are the basic of our factory to manufacture better quality machinery.

Comprehensive quality management and good efficiency, reduce the cost. To make our machinery be with more competitive edge. And our machinery is certified by our customers groups, hot sold to domestics and oversea market, with good reputation and highly praised.

Our company have professional team in selling and after-sale service, adhere to learn advanced experience, Persistent innovation, unyielding enterprising, always close to industry demand and goals.

Your choice is our high honor !

Hope to cooperate with you, create a Brilliant future.
