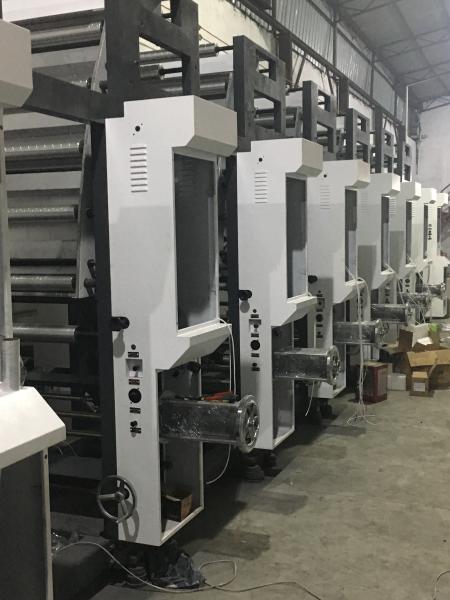

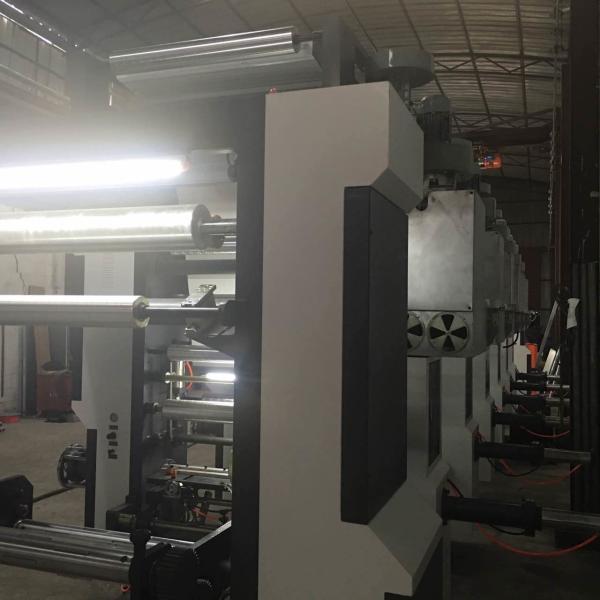

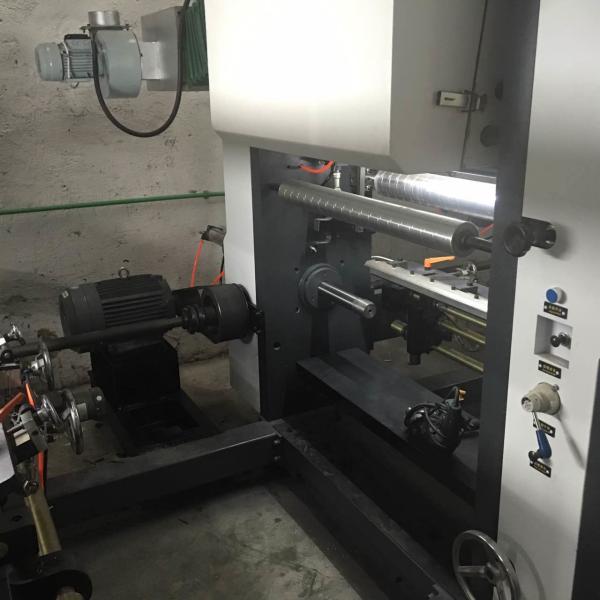

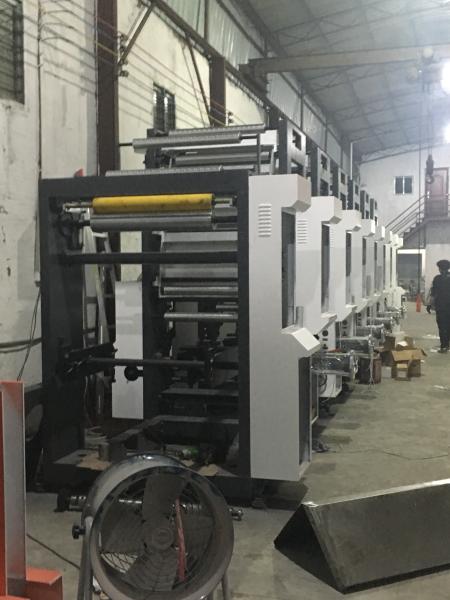

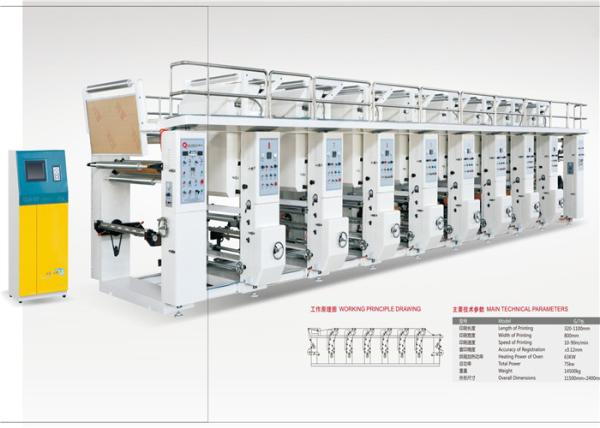

LC-G Model Series of Computer Middle Rail Roto Gravure Machine 120m/min(color register system/web guide EPC optional)

rotogravure printing production line.pdf

Main components"

1.Unwinding and traction units........................................1 unit

2.Printing units.................................................................8 unit

3.Rewinding and traction units........................................1 unit

4.Computer color register................................................1 set (optional) Shangxi Kesai 2000CX for the Vertical

Usage:

Machines in this series are applicable for continuous multi-color printing on rolling materials in good printing performance such as cellophane, BOPP, PET, PVC, PE, aluminum foil, and paper, broadly applied for all types of super-quality printed matters.

Feature:

1. The whole set is in permutation and combination style, possible to add or reduce colors class and add on reverse printing mechanism as required by customers.

2. Non-shaft pneumatic conic node printing plate loading, prompt and convenient printing plate changing.

3. Alloy guide roll in dynamic balance static balance, sealed type oven, fast drying with less energy consuming, and auto constant temperature control system.

4. Adopting control auto permanent tension controller and magnetic powder brake for control of unreeling.

5. Adopting vector frequency conversing control for unreeling and feeding drawing, realizing more stable operation.

6. Pneumatic backpressure moving erasing knife.

7. Printing ink circulation system, inflatable type shaft draw in and draw out.

8. High-accuracy gear transmission box.

9. Reeling and unreeling reel by tumbling dual-station mechanism, realizing auto material change without machine halt.

10. Full automatic computer registering devices and can chose to buy computer still examining graphics.

Statement:
1. The ink types, materials, printing area will effect printing speed.
2. Since this model is one of the high-tech products, according to the design requirements, we reserve the right to change some structure and parameters in order to provide you better equipment.

Random accessories:

1. cushion for machine.............................1 sets

2. two head wrench.................................. 1 sets

3. Hexagon wrench................................... 1 sets

4. screwdriver for -.................................... 1 pcs

5. screwdriver for +....................................1 pcs

6. rubber pressure roller..............................2 sets according to customer requirement

7. ink pump.................................. 2 sets

8. doctor blade( soft)....................20 meter

9. plate Plug head 70.100mm ....................... 2 sets. (16pcs)

10.Air compressor...........................1 set

Note: our standard is 380V 50HZ 3 phase 4 wire

LC E model roto gravure printing machine 4 colors
