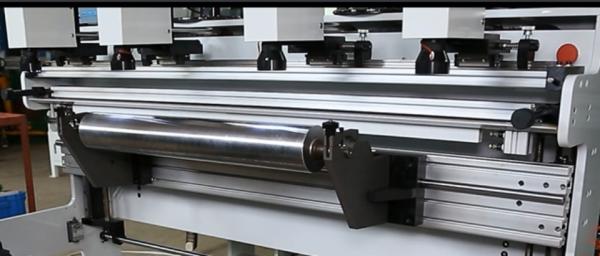

Water Wash Sleeve Type Flexo Plate Making Machine 320mm Max Plate Roller Length
Water Wash Sleeve Type Flexo Plate Making Machine 320mm Max Plate Roller Length
Specifications
Brand Name :
Allfine
Model Number :
TB-320
Certification :
CE
Place of Origin :
Wenzhou city Pinyang
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30sets/month
Delivery Time :
20days
Packaging Details :
wooden box
Max plate roller length :
320mm
Max plate roller perimeter :
800mm
Machine Size(L*W*H) :
920mm*600mm*1650mm
Machine Weight :
160KG
Name :
water wash sleeve type flexible flexographic TB series press printing plate pasting sticker machinery has video
Camera :
2 sets
Description

water wash sleeve type flexible flexographic TB series press printing plate pasting sticker machinery has video

flexo printing production line.pdf

Plate Mounter:
Characteristics:
1. The rack construction with the wallboard structure after high strength holistic procesing has great working stability and is durable in use
2. The 650-Line color high-definition camera can reach 70-times amplification ratio, present clear images,possess high resolution ratio, and substantially improve the precision of the plate
3. The lifting of plate roller structure adopts the gear motor drive control, which largely facilitates the operations of the plate
4. The complete machine adopts the centralized control of circuits, which is convenient for operations and has relatively high degree of automation
5. The 19-inch high-resolution liquid crystal display provides clear and bright images and effectively alleviates the visual fatigue of operating workers

Main Technical Variables

Model Max plate roller length Max plate roller perimeter Machine Weight Machine Size(L*W*H) Machine Weight
320 320mm 800mm 920mm*600mm*1650mm 160KG
650 650mm 800mm 1050mm*600mm*1650mm 200KG
1000 1000mm 1200mm 1500mm*600mm*1650mm 280KG
1200 1200mm 1200mm 1700mm*600mm*1650mm 320KG
1300 1300mm 1200mm 1800mm*700mm*1650mm 340KG
1500 1500mm 1200mm 2100mm*700mm*1650mm 400KG
1800 1800mm 1200mm 2400mm*700mm*1650mm 460K

Mark:Special orders with special size accepted

Video:https://youtu.be/rooSMSlZEIw

For more information, please add my whatapp/viber/mobile/wechat/qq:+8615158408090

Wipe clean equipment before installing. please be careful when unpacking and handling equipment, so as not to damage the precision components such as cameras.

he equipment must be placed on solid and smooth working plane to ensure that the equipment is in a level state. We suggest put equipment in 15 to 28℃, humidity is 60%, clean and dust-free (or less) work environment, in order to achieve the best working state

take out the image display carefully from packaging box, and place it smoothly on top of the device, then connect the power cord and video line.

the equipment power is single-phase 220 v and must use three core plugs. After turning on the power supply, start the power master switch, and make sure that the monitor has signal input.

connect the air inlet pipe correctly, and make sure the intake valve unobstructed. Open the vent valve, check the pneumatic components’ operation condition.
