Specifications
Brand Name :
MQSPACK
Model Number :
MP303A
Certification :
CE
Place of Origin :
China
MOQ :
Negotiation
Supply Ability :
50 sets/month
Delivery Time :
35-40 working days
Packaging Details :
wooden case/iron frame
Type :
automatic pallet wrapper
Packing material :
stretch wrap film
Voltage :
380V
Power :
2.3kw
Driven :
electric
Turntable speed :
0-15rpm
Conveyor speed :
7m/min
Conveyor height :
450mm
Condition :
New
Name :
pallet wrap machine
Price :
Negotiable
Description

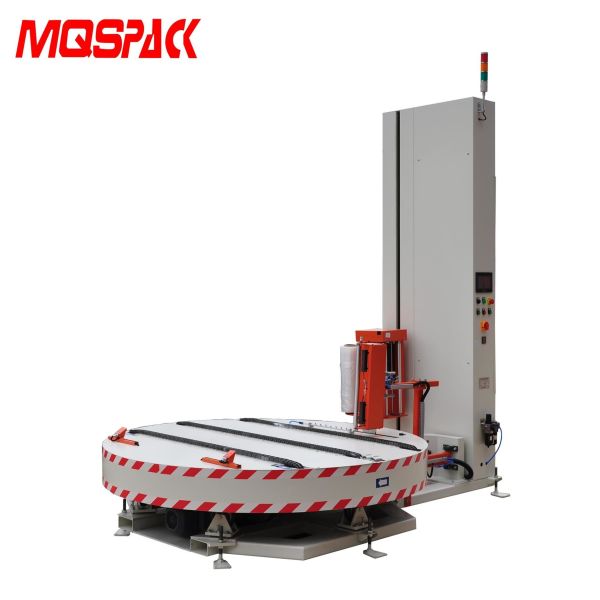

Automatic Pallet Stretch Wrapping Machine With Light Load

Specifications

Control PLC+touch screen
Cargo size L1200*W1200*H2000mm max
Cargo weight 1000kg max
Turntable diameter φ2000mm
Turntable speed 0-15rpm
Column height 2500mm
Carriage type pre-stretch carriage
Roller specification t3.0*φ76*1300mm(inner core φ20mm)
Roller wheelbase 118.8mm
Conveyor chain 10A-1
Conveyor height 450mm
Conveyor speed 7m/min
Packing material stretch film,φ250mm,width500mm,inner core φ76mm
Cut method heat blow
Air pressure 0.4-0.7Mpa
Power AC380V/50HZ
Motor turntable motor 0.75kw, column motor 0.4kw, carriage motor 0.35kw, conveyor motor 0.75kw

Advantages:

1. 200% pre-stretch rate

Pre-stretch is normal function of wrapping machine. But most wrapping machines in the market stick the rubber on the roller with glue, which are easily broken while working ,and make the film crumply. If there is label on pallet, it will be difficult to scan the barcode on the label. Automatic Turntable Stretch Wrapper uses ruber coated roller to avoid rubber dropping , makes stretch film soomthly, after stretching, film can still be transparent. Barcode on label can be easily scanned too.

2. Intelligent Touch screen

pallet wrapping machine use the best touch screen, the reaction of the touch screen and function all is perfect

The touch screen can set the "turntable speed .up& down speed and film carriagre speed directly" and we also prepare for our customer, most of customers have diffierent pallet to wrap, so the different pallets need different wrapping speed, wrapping force, the customer just need set the models one time, then just choose the right model for their pallet, no need adjsut the parameter every time any more.

3. Film Carriage Bottom Safety Device
When worker's head or foot touches the bottom of the film carriage, the machine will stop running and alarm.

We always consider what you are concerned about. Workers' safety first!

4. We use Good brand spare part

Features:
1. Pallet wrap machine use stretch film as the main packing material to wrap the bulk cargos stacked on the pallet

2. Film provides extra support during transportation and storage to protect them from dust, moisture or damage.

3. The pallet wrap machine has been widely used in industries such as glassware, tools, electric & electronic, paper,pottery, food & beverage, et.
