Remote fuel level Control 7 AC220V Gas Station Oil Tank Float Gauge
Remote fuel level Control 7 AC220V Gas Station Oil Tank Float Gauge
Remote fuel level Control 7 AC220V Gas Station Oil Tank Float Gauge
Remote fuel level Control 7 AC220V Gas Station Oil Tank Float Gauge
Remote fuel level Control 7 AC220V Gas Station Oil Tank Float Gauge
Remote fuel level Control 7 AC220V Gas Station Oil Tank Float Gauge
Specifications
Brand Name :
Guihe
Model Number :
TCM
Certification :
PCEC Explossion proof certification
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS per month
Delivery Time :
5-7 working days
Packaging Details :
diesel fuel tank level gauge wooden case packing
Item Name :
Tank gauge console
Power :
AC220V 50HZ
Display :
7” LCD touch screen
Module :
TCM-1
Keyword :
Oil Float Level Gauge
Explosion proof :
Yes used for oil and water measurement
Description

Gas Stations Tank Remote Control 7" Can Monitor Oil Float Level Gauge

Product Description

The Tank Manager is the most versatile automatic tank gauge management system on the market today. It is a permanently installed inventory system for underground and above ground storage tanks. The ATG technology exceeds all EPA standards as verified by third parties. The system consists of an electronic console, in-tank probes for liquid level sensors.

The system provides graphic display of the data for current status, alarms, inventory control on your PC monitor.

The information is displayed in easy-to-read graphic and text formats. The console contains all of the electronics for tank probes. All data and the time of day clock are battery backed in case of power failure. Unlimited accessibility: network, internet, serial, and modems are all supported by the console. Access to and from the other equipment at your site (POS, back office, site controller, etc.). The combination of tank testing, and inventory monitoring completes the loop for total site data collection and analysis.

Remote fuel level Control 7

Automatic Tank Gauge Advantage:

● Industrial design, long service life, fast in running.
● Excellent compatibility with different brand Central Control System.
● Integrated design for the safety barrier and control console in order to easy installation and lower the cost.
● Information are stored in memory for future inquiry.
● It enjoys a tank tilt compensation function
● It can connect with explosion-proof ringer outdoors avoiding the product spilled
● With an embedded printer it can print inventory reports, delivery reports, leak reports and shift reports
● It can monitor up to 12 tanks and display dynamically the product level and water level with colored graphics in proportion.
● After connected with Central Control System though internet, it can provide information for manager to manage the inventory, delivery and the sale of the product.

Remote fuel level Control 7

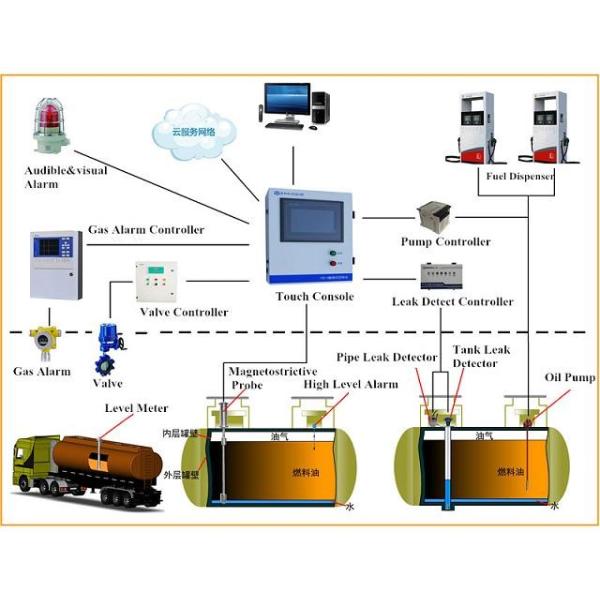

  • Fuel tank level gauge consist of Magnetostrictive probe (mode:SYW-A, SYW-A1)and Touch screen control console (mode:TCM-1,TCC-3).
  • SYW-A magnetostrictive probe installed in the tank, with magnetostrictive technology,can accurately measure the fuel level ,water level,ullage and multiple temperature.

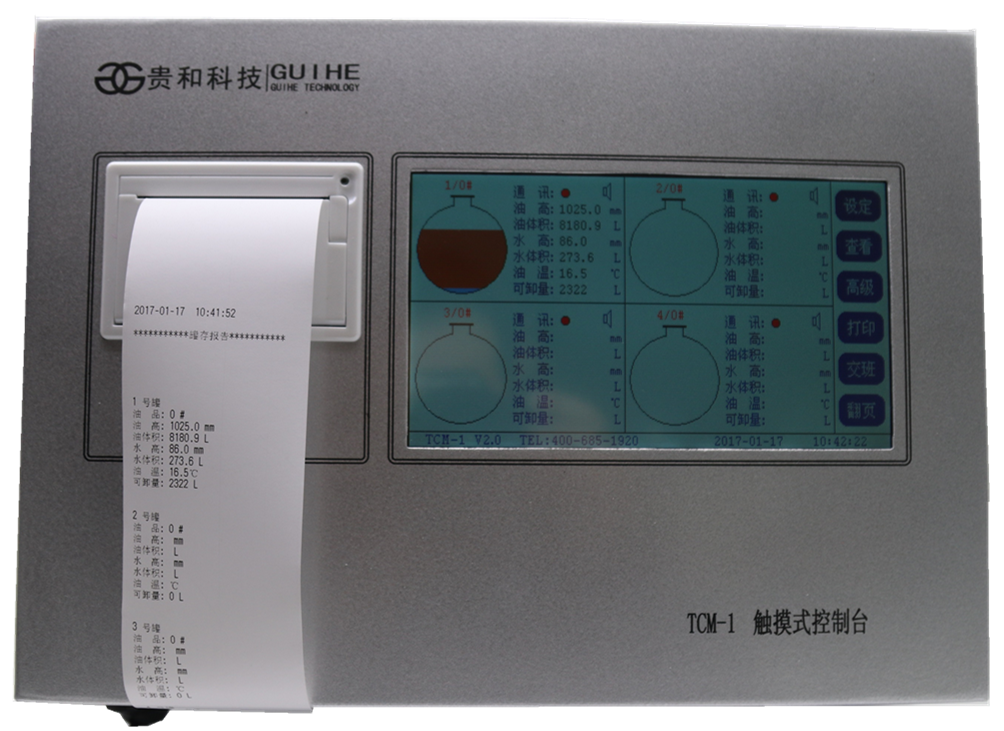

  • Touch control console installed in the petrol station control room, it can automatically probe data acquisition and processing, real-time display tank storage information, realize the tank leak detection, automatic unloading, record query, control multi-channel submersible pump,oil level alarm, data upload, and other functions
Product Parameters
No.
Item
Specification
1
Usage
To measure product level, water level and temperature
2
Measuring Medium
Gasoline, diesel, kerosene, ethanol , water etc.
3
Explosion-proof
ExiaIIBT4 (Intrinsically safe)
4
Temperature
-40℃~70℃
5
Fuel Level Accuracy
±0.3mm
6
Temperature Accuracy
±0.2℃
7
Height Resolution
0.023mm
8
Lowest Product Inactive Zone
2.5'' floater-180mm
9
Lowest Water Inactive
2.5'' floater-25mm
10
Measured Variable
Product level, interface level and temperature of 5 sensors and average temperature
11
Measuring Range
600~4000mm
12
Communication
RS-485
13
Power Supply
+24~26VDC
14
Protection Class of Probe Canister
IP67
15
Probe Material
1Cr18Ni9Ti
16
Max Communication Distance
1200m

Remote fuel level Control 7

Package
Remote fuel level Control 7Remote fuel level Control 7
Our service

1. Provide necessary conditions for the customers visiting factory.
2. Good quality with competitive price.
3. All products have been strictly Quality Checked before shipping.
4. Free repair within 12 months.
5. Great after-sale service and offer solution within 24 hours.
6.OEM is ok.

Company Information

Qingdao Guihe Measurement & Control Technology Co., Ltd was founded in 2002, is a professional manufacturer of petroleum equipment. We specialized in producing Magnetostrictive liquid level meter (tank gauging system), Underground fuel tank volume table calibration system, Double layer tank leakage detector, Double layer pipeline leakage detector, Tank car liquid level meter, Human body electrostatic discharge alarm. We also providing different customers with personalized solutions.

Products are independent R&D production,and achieved many national invention patents ,Implement the concept of customer needs first. Cost effective products and good service win the customs trust and support. In future ,we will continuously make exploration and innovations,and focus on the product development and the utilization of the technology to improve our quality and offer a compete range of new products for the customers.We are willing to conduct extensive cooperation with companies ,we sincerely hope to become your trustworthy partner!
