Stainless Steel 20m RS485 Digital Fuel Tank Gauge
Stainless Steel 20m RS485 Digital Fuel Tank Gauge
Stainless Steel 20m RS485 Digital Fuel Tank Gauge
Stainless Steel 20m RS485 Digital Fuel Tank Gauge
Specifications
Brand Name :
Guihe
Model Number :
SYW
Certification :
PCEC
Place of Origin :
China
MOQ :
1 SETS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000SETS per month
Delivery Time :
5-7 working days
Packaging Details :
Automatic tank gauge wooden case packing
Power supply :
24v
Measuring Range :
1-20m
Material :
Stainless Steel
Usage :
measure fuel level, water level, temperature
Output signal :
modbus RS485
Accuracy :
0.5mm
Name :
Magnetic float ball liquid level sensor
Application :
Liquid
Description

Gas Sites Oil Tank Remotely Viewed Or Managed Float Type Diesel Level Sensor

Automatic Tank Gauging

We feel proud to introduce ourselves as the leading organization in this domain, engaged in presenting an excellent grade Automatic Fuel Tank Gauge System. This system helps in understanding the loading, unloading and inventory updates. It is one of the prominent systems available in oil refineries. To ensure the accurate measurement and solutions, we manufacture the system using quality materials and components. Also, our professionals use advance and innovative technology for making the system provide high accuracy results.

Guihe fuel tank probes are installed into bulk fuel tanks for automatic reading of volume, water, temperature and mm. Readings are taken periodically and at every level increment. Deliveries are also automatically detected.

Magnetostrictive Probe

● Features:

Safety: ExiaIIBT4 (Intrinsically safe) issued by PCEC

Accuracy: level accuracy is ±0.3mm

Stability: strong anti-jamming ability

Efficiency: less than 1 second to test one tank.

● Probe Performance

Item SYW-A
Purpose To measure product level, water level and temperature
Titles of medium Gasoline, diesel, kerosene, ethanol , water etc.
State of medium Liquid
Explosion-proof grade ExiaIIBT4 (Intrinsically safe)
Pressure range -0.02Mpa~0.6Mpa
Certificate PCEC Conformity Certificate of Explosion-proof
Temperature -40℃～70℃
Product Level Accuracy ±0.3mm
Water Level Accuracy ±0.3mm
Temperature Accuracy ±0.2℃
Height Resolution 0.023mm
Repeatability ±0.1mm
Temperature Effect Error<0.2mm
Vibration Effect Error<0.5mm
Lowest Product Inactive Zone 2.5'' floater-180mm
Lowest Water Inactive Zone 2.5'' floater-25mm
Measured Variable Product level, interface level and temperature of 5 sensors and average temperature
Measure Range 600~4000mm
Method of Communication RS-485
Probe Material 1Cr18Ni9Ti
Power Supply +24～26VDC
Protection Class of Probe Canister IP67
Max Communication Distance 1200m

Details:

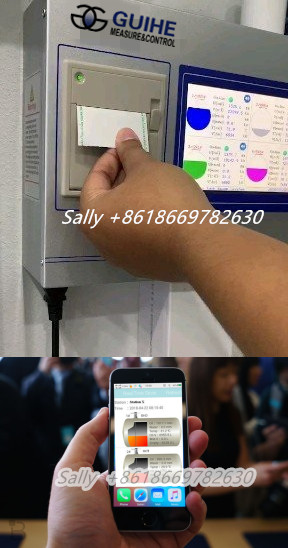

Real time storage tank fuel monitoring through tank gauging system with level, volume, temperature

Acuuracy better than +/- 0.3mm

Works on Magnetostrictive principle specified by all Oil Companies

Automatic dectection of quantity of fuel unloaded from oil company tank truck

Water detection

Low & high level alarms to avoid dry run or spillage

Designed for all the industries including retail, mining, construction, fleet, trasport.

Installation:
Stainless Steel 20m RS485 Digital Fuel Tank GaugeStainless Steel 20m RS485 Digital Fuel Tank Gauge
Packing:
Stainless Steel 20m RS485 Digital Fuel Tank GaugeStainless Steel 20m RS485 Digital Fuel Tank Gauge
Our service

1. Provide necessary conditions for the customers visiting factory.

2. Good quality with competitive price.

3. All products have been strictly Quality Checked before shipping.

4. Free repair within 12 months.

5. Great after-sale service and offer solution within 24 hours.

6.OEM is ok.
