Filling Station Explossion Proof Automatic Diesel Fuel Tank Level Measurement Sensor / Gauge
Filling Station Explossion Proof Automatic Diesel Fuel Tank Level Measurement Sensor / Gauge
Filling Station Explossion Proof Automatic Diesel Fuel Tank Level Measurement Sensor / Gauge
Filling Station Explossion Proof Automatic Diesel Fuel Tank Level Measurement Sensor / Gauge
Filling Station Explossion Proof Automatic Diesel Fuel Tank Level Measurement Sensor / Gauge
Filling Station Explossion Proof Automatic Diesel Fuel Tank Level Measurement Sensor / Gauge
Specifications
Brand Name :
Guihe
Model Number :
SYW-A
Certification :
PCEC Explossion proof certification
Place of Origin :
China
MOQ :
1 PCS
Price :
USD99-1000/PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS per month
Delivery Time :
5-7 working days
Packaging Details :
level transmitter wooden case packing
Product name :
tank level gauge
Accuracy :
±0.3mm
Measuring Range :
600-4000mm
Material :
316L
Temperature range :
-40 to 70℃
keywords :
fuel level transmitter
Medium :
Gasoline, diesel, kerosene, ethanol , water etc.
Output signal :
RS485
Warranty :
1 year
Description

Filling Station Explossion Proof Automatic Diesel Fuel Tank Level Measurement Sensor / Gauge

Product Description

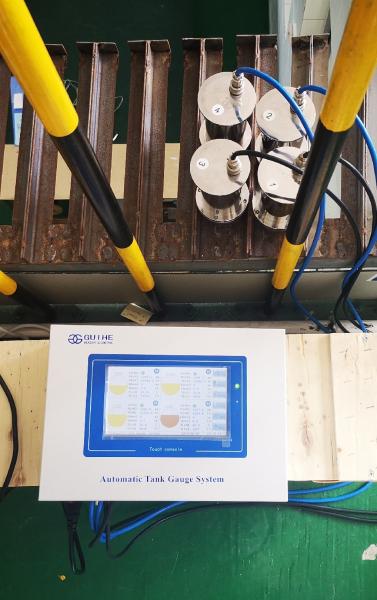

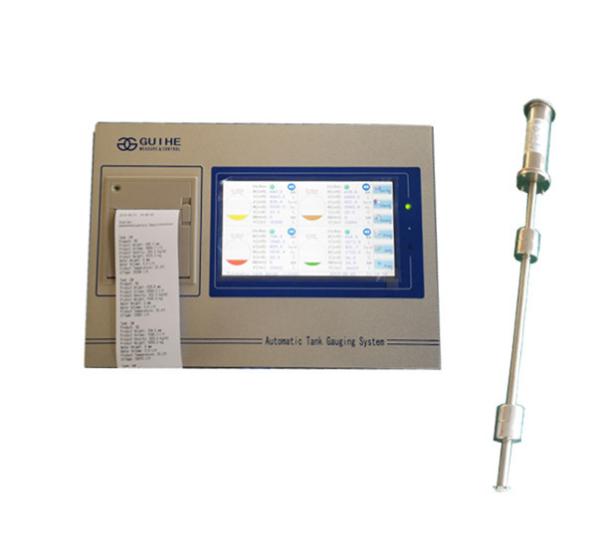

* Fuel tank level gauge consist of Magnetostrictive probe (mode:SYW-A, SYW-A1)and Touch screen control console (mode:TCM-1,TCC-3).

* SYW-A magnetostrictive probe installed in the tank, with magnetostrictive technology,can accurately measure the fuel level ,water level,ullage and multiple temperature.

* Touch control console installed in the petrol station control room, it can automatically probe data acquisition and processing, real-time display tank storage information, realize the tank leak detection, automatic unloading, record query, control multi-channel submersible pump,oil level alarm, data upload, and other functions.

Magnetostrictive level meter (SYW-A )

Filling Station Explossion Proof Automatic Diesel Fuel Tank Level Measurement Sensor / Gauge

● The probe consist of:

Fully enclosed magnetostrictive probe.

Electronic Pod using for data measuring and transforming.

Floater made according to the product.

● Features:

Safety: ExiaIIBT4 (Intrinsically safe) issued by PCEC

Accuracy: level accuracy is ±0.3mm

Stability: strong anti-jamming ability

Efficiency: less than 1 second to test one tank.

● Probe Performance

Item SYW-A
Purpose To measure product level, water level and temperature
Titles of medium Gasoline, diesel, kerosene, ethanol , water etc.
State of medium Liquid
Explosion-proof grade ExiaIIBT4 (Intrinsically safe)
Pressure range -0.02Mpa~0.6Mpa
Certificate PCEC Conformity Certificate of Explosion-proof
Temperature -40℃～70℃
Product Level Accuracy ±0.3mm
Water Level Accuracy ±0.3mm
Temperature Accuracy ±0.2℃
Height Resolution 0.023mm
Repeatability ±0.1mm
Temperature Effect Error<0.2mm
Vibration Effect Error<0.5mm
Lowest Product Inactive Zone 2.5'' floater-180mm
Lowest Water Inactive Zone 2.5'' floater-25mm
Measured Variable Product level, interface level and temperature of 5 sensors and average temperature
Measure Range 600~4000mm
Method of Communication RS-485
Probe Material 1Cr18Ni9Ti
Power Supply +24～26VDC
Protection Class of Probe Canister IP67
Max Communication Distance 1200m

• Can add density floater If need measure density.(Density measure accuracy:±0.5%)

TCM-1 ATG tank gauge console

Filling Station Explossion Proof Automatic Diesel Fuel Tank Level Measurement Sensor / Gauge

Filling Station Explossion Proof Automatic Diesel Fuel Tank Level Measurement Sensor / Gauge

Tank gauge console is the tank monitor, one key part of the complete automatic tank gauging system. With the tank monitor, you can watch the detail information of underground storage tanks or aboveground storage tanks, like product level, water level, temperature, (fuel density) etc. It is also the communication display platform between ATGs and users. Configurations like alarm value, tank information, etc, also can be user-defined.

Guihe tank gauge console have open communication protocol to fuel management system.

TCM-1 tank gauge console is an enhanced console in Guihe console family. It offers a multi-function operation platform on colorful touch display. High-accuracy and strong data process ability, greatly improve the management efficient and save costs! The reliable performance have highly reputations from thousands station owners.

Filling Station Explossion Proof Automatic Diesel Fuel Tank Level Measurement Sensor / Gauge

Installation:

Filling Station Explossion Proof Automatic Diesel Fuel Tank Level Measurement Sensor / Gauge

Filling Station Explossion Proof Automatic Diesel Fuel Tank Level Measurement Sensor / Gauge

Package
Filling Station Explossion Proof Automatic Diesel Fuel Tank Level Measurement Sensor / Gauge
Our service

1. Provide necessary conditions for the customers visiting factory.

2. Good quality with competitive price.

3. All products have been strictly Quality Checked before shipping.

4. Free repair within 12 months.

5. Great after-sale service and offer solution within 24 hours.

6.OEM is ok.

Company Information

Qingdao Guihe Measurement & Control Technology Co., Ltd was founded in 2002, is a professional manufacturer of petroleum equipment. We specialized in producing Magnetostrictive liquid level meter (tank gauging system), Underground fuel tank volume table calibration system, Double layer tank leakage detector, Double layer pipeline leakage detector, Tank car liquid level meter, Human body electrostatic discharge alarm. We also providing different customers with personalized solutions.

l A professional engineering team with 15 Years R&D experiences
l 80% Market share in China Mainland market for ATGs
l More than 1000k Units shipped per year
l One-stop Solution for petrol station ATGs
l Quick response in goods supply and post-sales support
l Globally distributed customers including China Mainland, Korea, India, America, Europe, etc
