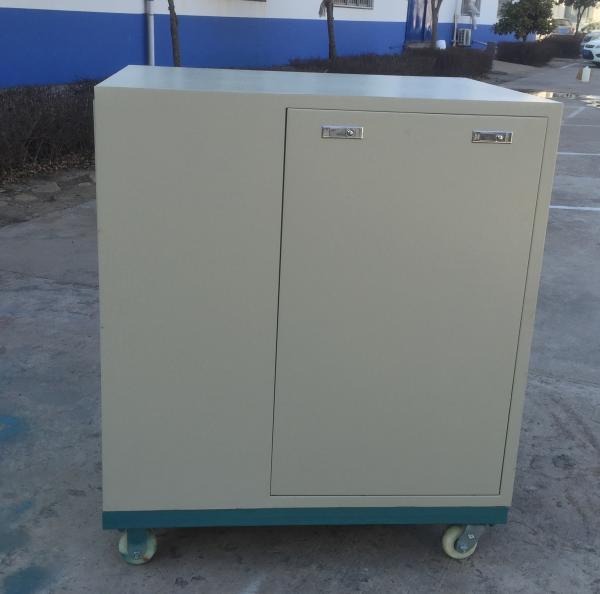

Fuel Station 10 - 50m³ Underground Gasoline Diesel Tank Volume Calibration Equipment
Fuel Station 10 - 50m³ Underground Gasoline Diesel Tank Volume Calibration Equipment
Fuel Station 10 - 50m³ Underground Gasoline Diesel Tank Volume Calibration Equipment
Fuel Station 10 - 50m³ Underground Gasoline Diesel Tank Volume Calibration Equipment
Specifications
Brand Name :
Guihe
Model Number :
GH-300
Certification :
PCEC Explossion proof certification
Place of Origin :
China
MOQ :
1 sets
Price :
USD20000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
15 working days
Packaging Details :
wooden case packing
Power supply :
AC380V AC220V,50HZ
Measuring range :
10-300m³
Temperature :
-20 to 70℃
communication :
RS485
keywords :
Tank volume table calibration system
Usage :
calibration tank capacity table
Description

Guihe 3D Tank capatity calibration equipment , automatic level sensor gauge for ga station

Product Description

The system consists of the sliding vane pump, metering pump, calibration intellectual controller, laptop, printer, system software, pipeline for transfer oil, communication wire and other accessories.

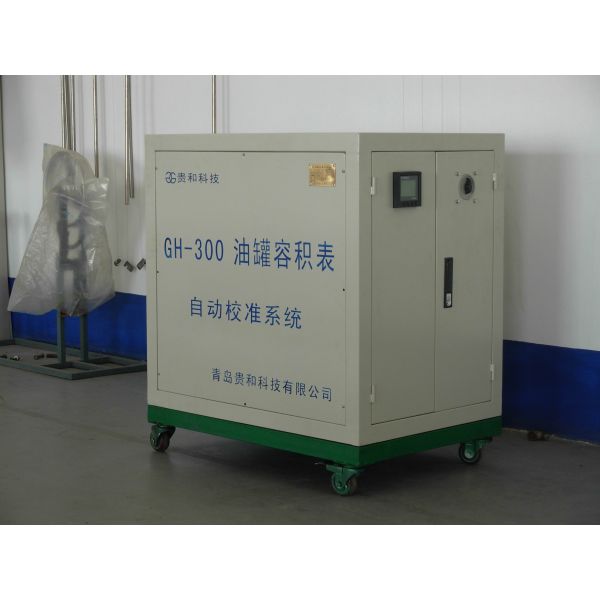

GH-300Tank Capability Calibration System.
1. Measure Principle:Special volume measurement technology and magnetostrictive measurement techniques
2. Medium Name:gasoline, diesel, kerosene, light oil and so on
3. Medium status:liquid
4. Anti-explosion classification:Exde[ia]iaIIBT4
5. Pressure range:-0.02Mpa~0.6 Mpa
6. Authentication Item:PCEC Anti-explosion quality certificate / Manufacturing measuring instruments license
7.Temperature range:-25℃~60℃

8. accuracy

 Capacity accuracy ≤±3‰
Liquid level accuracy ±0.2mm
Temperature accuracy ±0.2℃
High resolution 0.01mm
Repeatability Accuracy ±0.1mm
Temperature effect (-25℃-70℃) Measuring error<0.2mm
Mechanical shocking effect Measuring error<0.5mm
Bottom oil level dead zone 2.5″floater—120mm
Meter flow oil level Intellectual reveal
Tank capacity table, oil level revise yes
9, Measure method Site measurement, data upload
10, tank capacity range 10~300m3
11, communication method: RS-485
13, power supply method:AC380V AC220V 50HZ
14, Degrees of protection provided by enclosures:IP67
15, Standard Power for the anti-explosion motor:2.2KW
