2S Action fuel high level monitoring Overfill Prevention shut-off Valve For gas Service Station
2S Action fuel high level monitoring Overfill Prevention shut-off Valve For gas Service Station
2S Action fuel high level monitoring Overfill Prevention shut-off Valve For gas Service Station
2S Action fuel high level monitoring Overfill Prevention shut-off Valve For gas Service Station
Specifications
Brand Name :
Guihe
Model Number :
GH-QDF
Certification :
PCEC Explossion proof certification
Place of Origin :
China
MOQ :
1 PCS
Price :
USD99-1000/PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS per month
Delivery Time :
5-7 working days
Packaging Details :
atg wooden case packing
Product name :
Fuel level monitoring system
keywords :
tank level controller
Power supply :
DC220V
Off action time :
2s
Material :
Stainless Steel
Output signal :
RS485
Usage :
prevent the unloading overfill
ATGs :
probe & console
Apply for :
service station
Description

Fuel level monitoring system Overfill Prevention Valve, diesel storage tank controller for petrol station

Product Introduction

Fuel level monitoring system consists of:

1. SYW-A Magnetostrictive Probe

Installed in the tank, used for measuring fuel level and temperaturer.

2. TCM-1 Touch Console

Used for display tank information, set alarm point, send conmmands to external devices.

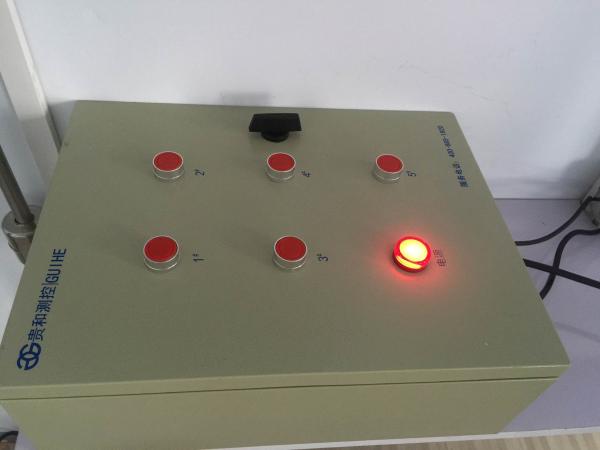

3. Valve Controller

Connect with shut-off valve and TCM-1 Console.

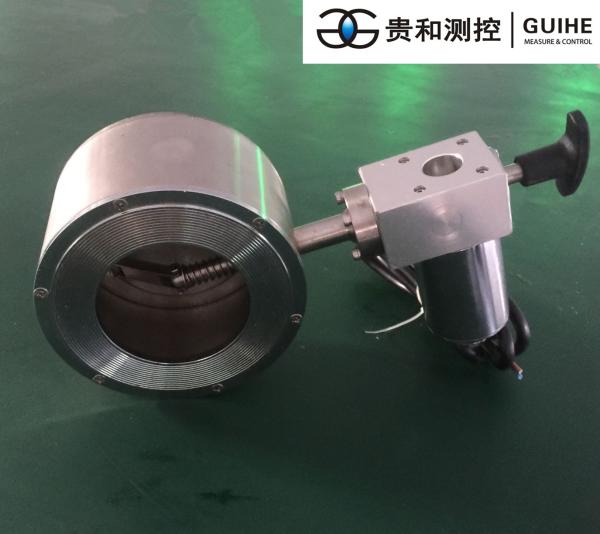

4. Shut-off Valve

Installed on the inlet port of the tank, Automatic closed to stop loading immediately once received demands from Controller.

Operational principle

This system is composed of tank level gauge syste and overfill prevention system. As the oil unloading from tank truck to underground tank, the Real-time fuel level will be measured by fuel level meter, when the oil in the tank reach to high level alarm ( 90%), Level Meter will sent singal to Audible&Visual Alarm, while the console sends a signal to the electric control valve, control valve closed 70%, at this time gas station worker should close the tank truck unloading valve. When the oil in the tank reach to 95% Audible&Visual Alarm sound and light, and console to send signals to control the electric butterfly valve is fully closed, stop the unloading.

2S Action fuel high level monitoring Overfill Prevention shut-off Valve For gas Service Station

Magnetostrictive Liquid Level Meter

Magnetostrictive Liquid Level Meter (Tank gauging system) for gas stations produced by Guihe consists of Probe and Touch Control Console. There are three different plans to satisfy different customers according to their effective demands

Item SYW-A
Purpose To measure product level, water level and temperature
Titles of medium Gasoline, diesel, kerosene, ethanol , water etc.
State of medium Liquid
Explosion-proof grade ExiaIIBT4 (Intrinsically safe)
Pressure range -0.02Mpa~0.6Mpa
Certificate PCEC Conformity Certificate of Explosion-proof / Permit of Manufacture Measuring Instruments
Temperature -40℃~70℃
Product Level Accuracy ±0.3mm
Water Level Accuracy ±0.3mm
Temperature Accuracy ±0.2℃
Height Resolution 0.023mm
Repeatability ±0.1mm
Temperature Effect Error<0.2mm
Vibration Effect Error<0.5mm
Lowest Product Inactive Zone 2.5'' floater-180mm
Lowest Water Inactive Zone 2.5'' floater-25mm
Measured Variable Product level, interface level and temperature of 5 sensors and average temperature
Probe Length 600~4000mm
Method of Communication RS-485
Probe Material 1Cr18Ni9Ti
Power Supply +24~26VDC
Protection Class of Probe Canister IP67
Max Communication Distance

1200m

2S Action fuel high level monitoring Overfill Prevention shut-off Valve For gas Service Station2S Action fuel high level monitoring Overfill Prevention shut-off Valve For gas Service Station

Package
2S Action fuel high level monitoring Overfill Prevention shut-off Valve For gas Service Station
Our service

1. Provide necessary conditions for the customers visiting factory.

2. Good quality with competitive price.

3. All products have been strictly Quality Checked before shipping.

4. Free repair within 12 months.

5. Great after-sale service and offer solution within 24 hours.

6.OEM is ok.

Company Information

Qingdao Guihe Measurement & Control Technology Co., Ltd was founded in 2002, is a professional manufacturer of petroleum equipment. We specialized in producing Magnetostrictive liquid level meter (tank gauging system), Underground fuel tank volume table calibration system, Double layer tank leakage detector, Double layer pipeline leakage detector, Tank car liquid level meter, Human body electrostatic discharge alarm. We also providing different customers with personalized solutions.
