Stainless Steel 316L Material SYW - A Series Oil Tank Density Level Probe Sensor
Stainless Steel 316L Material SYW - A Series Oil Tank Density Level Probe Sensor
Stainless Steel 316L Material SYW - A Series Oil Tank Density Level Probe Sensor
Stainless Steel 316L Material SYW - A Series Oil Tank Density Level Probe Sensor
Specifications
Brand Name :
Guihe
Model Number :
SYW-A
Certification :
PCEC Explossion proof certification
Place of Origin :
China
MOQ :
1 SETS
Price :
USD100-5000/SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000SETS per month
Delivery Time :
5-7 working days
Packaging Details :
digital fuel tank gauge wooden case packing
Product name :
floater level probe sensor
Apply for :
petrol station fuel tanks
keywords :
digital fuel tank gauge
Power supply :
24V
Accuracy :
±0.3mm
Automatic Gauge :
Display product level, water level, temperature, volume, ullage ..
Material :
Stainless Steel 316L
Type :
Magnetostrictive liquid level meter
Description

Stainless Steel 316L Material SYW - A Series Oil Tank Density Level Probe Sensor

Product Description

Product Name


 Description

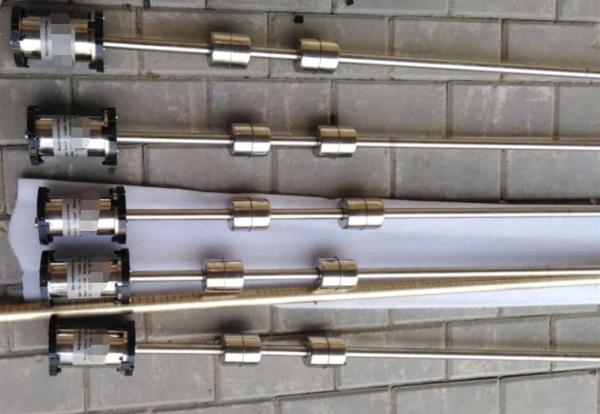

Magnetostrictive Probe (SYW-A)

Stainless Steel 316L Material SYW - A Series Oil Tank Density Level Probe Sensor

 Measure product level, water level and temperature. Each tank need one unit. Probe Length:600~4000mm. Accuracy:±0.3mm
Touch Control Console (TCM-1)

Stainless Steel 316L Material SYW - A Series Oil Tank Density Level Probe Sensor

 Monitor up to 1-12 tanks; Each gas station need one unit. Display product level, water level, temperature, volume, ullage.

SYW-A Magnetostrictive level transmitter

SYW Magnetostrictive probe adopts advanced magnetostrictive technology and digital electronic technology design, the main processor (CPU) uses high frequency arithmetic processor, circuit design uses highprecision instrument to amplify circuit, real digital communications, can accurately measure the oil level, water level,density and multi-temperature of the tank. It has high precision of measurement parameters, complete data, strong anti-interference ability, strong environmental adaptability, reliable data security, advanced algorithm and so on.

Product Parameters

No. Item Specification
1 Usage To measure product level, water level and temperature
2 Measuring Medium Gasoline, diesel, kerosene, ethanol , water etc.
3 Explosion-proof ExiaIIBT4 (Intrinsically safe)
4 Temperature -40℃~70℃
5 Fuel Level Accuracy ±0.3mm
6 Temperature Accuracy ±0.2℃
7 Height Resolution 0.023mm
8 Lowest Product Inactive Zone 2.5'' floater-180mm
9 Lowest Water Inactive 2.5'' floater-25mm
10 Measured Variable Product level, interface level and temperature of 5 sensors and average temperature
11 Measuring Range 600~4000mm
12 Communication RS-485
13 Power Supply +24~26VDC
14 Protection Class of Probe Canister IP67
15 Probe Material 1Cr18Ni9Ti
16 Max Communication Distance 1200m

Main Features

1. Real time data transmission.

2. Five-point temperature sensing.

3. Digital signal transmit with anti-interruption ability.

4. Maximum communication distance: 1200m.

5. High precision as 0.5mm and resolution as 0.01mm.

6. Leak Detect function: Standard--- 0.38L/H or 0.76L/H.

7. More reliable, environment friendly, could be used in torrid climate and freezing climate.

8. Non-corrosion 316 stainless steel ensure longer lifetime in most petroleum products.

9. Trouble-free, easy to install and operate.

10. IP67 protection grade.

APP & Web check for Android phone.

Users can check petrol station tank gauge information on mobile pnone.Users can logon our remote inquiry website, enter their petrol station name and password to check their petrol station tank gauge information.

Stainless Steel 316L Material SYW - A Series Oil Tank Density Level Probe Sensor Stainless Steel 316L Material SYW - A Series Oil Tank Density Level Probe Sensor

ATGs Application

Guihe automatic tank gauge can be used at petrol station, fuel depot, skid-mounted fueling station and chemical plant. Whatever and wherever you want of product level, water level, five-point temperature, inventory, delivery and sales information, Guihe automatic tank gauge ATGs will always here to help you easily reach the target!

Stainless Steel 316L Material SYW - A Series Oil Tank Density Level Probe Sensor

Stainless Steel 316L Material SYW - A Series Oil Tank Density Level Probe Sensor

Installation

Stainless Steel 316L Material SYW - A Series Oil Tank Density Level Probe Sensor

Products Package
Stainless Steel 316L Material SYW - A Series Oil Tank Density Level Probe Sensor
FAQ

1:How long will you give me the reply?

we will contact you in 2 hours as soon as we can.
2:Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
3:How about the quality of the magnets?
We have the certification of ISO, we could send the certification test of our company to you.
4:How is the price?
As we believe the quality is the most important,we will provide the best quality and lowest factory price.
5:Could you provide me the shortest lead time?
We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
6:Could I visit your factory?
Of course,if you need we will help you to visit our factory.

Our service

1. Provide necessary conditions for the customers visiting factory.

2. Good quality with competitive price.

3. All products have been strictly Quality Checked before shipping.

4. Free repair within 12 months.

5. Great after-sale service and offer solution within 24 hours.

6.OEM is ok.

Company Information

Qingdao Guihe Measurement & Control Technology Co., Ltd was founded in 2002, is a professional manufacturer of petroleum equipment. We specialized in producing Magnetostrictive liquid level meter (tank gauging system), Underground fuel tank volume table calibration system, Double layer tank leakage detector, Double layer pipeline leakage detector, Tank car liquid level meter, Human body electrostatic discharge alarm. We also providing different customers with personalized solutions.

Finding distributors all over the world! Our products will bring you great profit in your country! Please do not hesitate to contact with me at any time.

Stainless Steel 316L Material SYW - A Series Oil Tank Density Level Probe Sensor
