Specifications
Brand Name :
Guihe
Model Number :
TCM-1
Certification :
PCEC Explossion proof certification
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS per month
Delivery Time :
5-7 working days
Packaging Details :
Fuel Tank Level Mointor wooden case packing
Product :
Automatic Tank Gauge
Power supply :
AC220V,50HZ
keywords :
Fuel Tank Level Mointor
Usage :
display fuel level, water level, temperature
Monitoring capability :
12 tanks
ATG :

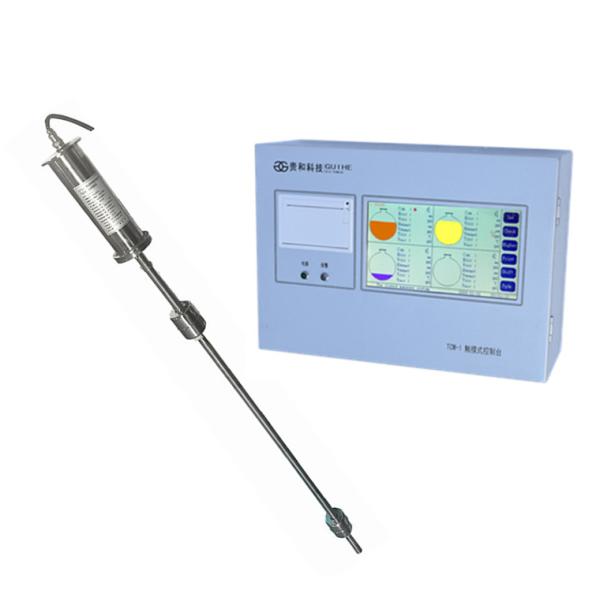

probe and console
Description

Diesel Fuel Tank Level Mointor Calculate Volume Inventory Report For Automatic Tank Gauge

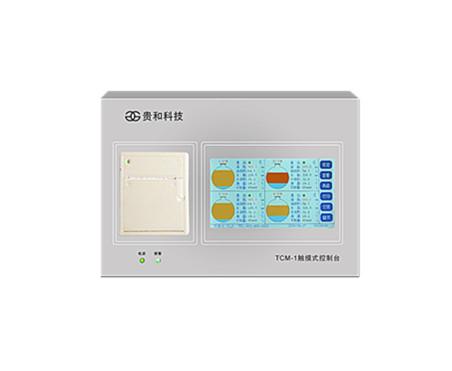

TCM-1 Tank gauge smart console

● Specification

TCM-1 Touch Control Console
Power Supply Voltage AC120~265V 50HZ
Environmental Temperature -20℃~60℃
Environmental Humidity 20%~85%
Display Screen 7 inch real colorful touch screen
Processor / Memory High-speed embedded / ---
Printer (Optional) Embedded minitype printer
Safety Barrier Power safety barrier, communication safety barrier
Size 310x220x105 (mm)
Functions
Display English, Graph, Colored
System Language English
Monitoring Capability 10 tanks
Relay With 2 relays
Method of Communication RS-485
Tank Inventory Report Users can inquire and print inventory information at any moment.
User-defined product type supported Available
Auto Delivery Auto delivery monitoring, and reports are generated after delivery. Users can inquire and print reports.
Manual delivery Click the “start delivery”, it will create delivery report
Product Mass Calculation ---
Print Function User can print all kinds of reports
Network Function Inquiring data in long-distance through internet.
Outside Explosion-proof Ringer Avoiding the product spilled.
System Update It’s convenient to update the software and hardware.
Control the Oil Pump Avoiding the product spilled and pumpdown
Setup/Inquiry Parameter Users can setup and inquiry the parameter about the tank, hardware, product type, alarm, date, tank volume table
Automatic Gauge Display product level, water level, temperature, volume, ullage
Volume Table Edit Data input via touch screen, enjoy the import and export function.
Volume Table Calibration Use the method of Guihe Volume Table Calibration to calibrate it.
Static Leak Detection Function During the idle time of the gas station, user can do the leak detection for the thank.( Detection rate :0.38 L/H)
Dynamic Leak Detection Function ---
Alarm Audible and visual alarm and inquiry function
Shift Exchange Shift exchange function and create the report.
Interface With RS-232 serial interface communication ports

Autoamted Diesel Fuel Tank Level Monitor , AC220V Fuel Monitoring Device

Gas station liquid level gauge advantages

■ The inspection speed is fast, only 1 second

■ Product technical indicators are equal to or higher than foreign brands, and the price is much lower than foreign brands, cost-effective

■ The probe material is made of seamless stainless steel tube (1Cr18Ni9Ti), which is corrosion-resistant and has a long service life. It is made of seamed steel pipe in foreign countries.

■ It is the only product in China that has an embedded printer on the touch console, which is convenient for users to transfer shifts and unloading records management.

■ Floating ball is made of special materials, corrosion-resistant and anti-aging. Stainless steel or foaming floats are used in the same industry.

■ Touch-based console system is completely self-developed, bare-metal operation, no operating system copyright issues

■ Have all the intellectual property rights of the products, clear property rights, have a professional software and hardware R & D team, can customize personalized products or solutions according to user needs

■ Establish a professional quality installation and after-sales service team. In order to provide customers with real-time technical support, the 400-685-1920 customer service line was opened, providing uninterrupted technical consultation and the fastest 24-hour service.

■ The liquid level controller console adopts an open protocol, which can be directly connected with different brand central control systems to realize unified management of the oil station data.

■ Remote query function, which is convenient for management departments to arrange inventory and achieve intensive management

■ The console can be connected to the oil discharge flowmeter, and the flowmeter related information is directly displayed on the console.

■ TCM-1 touch console can support up to 12 oil tanks, reducing user investment costs

Function show:

Main interface:

Autoamted Diesel Fuel Tank Level Monitor , AC220V Fuel Monitoring Device

Internet Function

1. Users can check petrol station tank gauge information on Mobile phone.

2.Users can logon our remote inquiry website, enter their petrol station name and password to check their petrol station tank gauge information.

Autoamted Diesel Fuel Tank Level Monitor , AC220V Fuel Monitoring Device

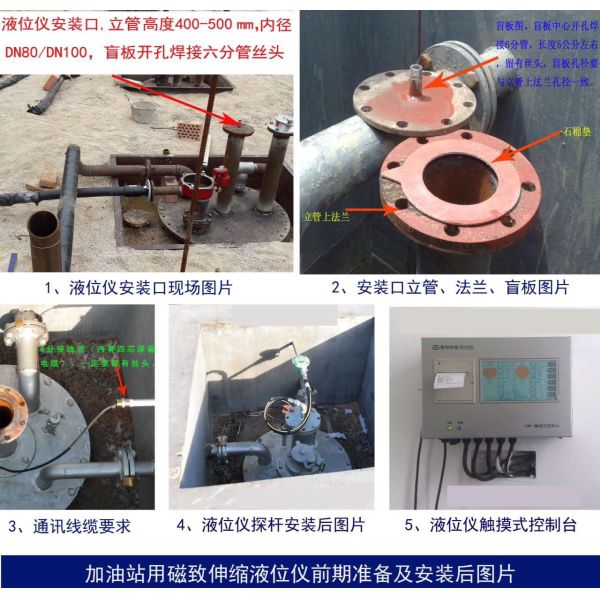

Installation:

Autoamted Diesel Fuel Tank Level Monitor , AC220V Fuel Monitoring DeviceAutoamted Diesel Fuel Tank Level Monitor , AC220V Fuel Monitoring Device

:
Packing:
Autoamted Diesel Fuel Tank Level Monitor , AC220V Fuel Monitoring Device
Our service

1. Provide necessary conditions for the customers visiting factory.

2. Good quality with competitive price.

3. All products have been strictly Quality Checked before shipping.

4. Free repair within 12 months.

5. Great after-sale service and offer solution within 24 hours.

6.OEM is ok.

Autoamted Diesel Fuel Tank Level Monitor , AC220V Fuel Monitoring Device
