Petrol Staion Explosion Proof 0 . 3MM Accuracy Automatic Fuel Tank Level Gauge

Automatic Tank Gauge (ATG) system consists of Magnetostrictive Probe and Smart Console, it is an electronic device, whose basic function is to monitor the fuel level in the tank. It can also tell the operator what is going on inside the tank. In other words, it gives us very important information like fuel level, volume and temperature, water level and volume, high and low fuel level warnings etc. There are different plans to satisfy different customers according to their effective demands.

1. Technical Parameters:

Measuring range:0.3~4m(can customize according to user’s request)
Safety Barrier input voltage: DC12V/40mA
Communication protocol:RS485 Baud rate:2400BPS
Transfer distance: 1500m
Measuring accuracy:±1mm
Repetition: 0.3mm
Resolution: 0.1mm
Temperature measuring number: 1 ~ 5
Temperature measuring range:-40°C ~ 125°C
Temperature Precision:±0.5°C
Temperature Resolution:0.0625°C
Protective Grade/Explosion-proof label: IP67/Exia II CT6
Nominal working pressure: 0~0.6MPa 0~1.6MPa 0~2.5MPa
Working medium density:0.4~1.3g/cm3
The material of the probe and the Electronic Storehouse: 316L stainless steel probe
The probe is used for exactly measuring tanks and it had been applied in the fields of gas station, chemical industry, foodstuff and pharmacy.

2. SYW-A Magnetostrictive level meter

Specification of magnetostrictive probe

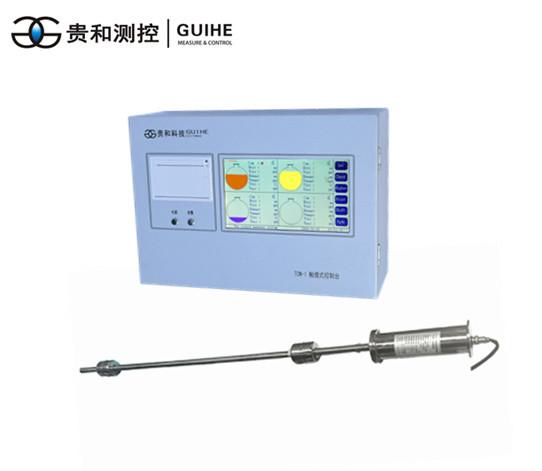

3. TCM-1 touch console

● It can monitor up to 1-10 tanks and monitor the delivery conditions, it also enjoys a static leak test function.

● It can display product level, water level, temperature, volume, ullage.

● It enjoys a tank tilt compensation function.

● It can display dynamically the change of product level and water level with graphics in proportion, it features a 7 inch colored touch-screen console panel, and each interface displays 4 graphics.

● It features an audible and visual alarm function with front panel.

● It comes with two RS-232 serial interface communication ports to connect with different brand Center Console.

● It enjoys a record function, all information are stored in memory for future queries

● There is an embedded printer in it to print inventory reports, delivery reports, leak reports and shift reports.

● It can calculate volume of product by multipoint, which can fully ensure the accuracy of volume of the product.

● After connected with Center Console though internet, it can provide information in long-distance for manager to arrange the inventory.

● It can monitor the oil pump according to the product level, which can avoid the product spilled and pumpdown..

● It can connect with flow-meter to display delivery information constantly.

1. APP check for Android phone.

Users can check petrol station tank gauge information on Android phone (ios system not available ).

2. Web check.

Users can logon our remote inquiry website, enter their petrol station name and password to check their petrol station tank gauge information.

♦ Liquid level measurement of petroleum, chemical, pharmaceuticals, food, beverage and other industries.

♦ Liquid measurement and level detection of gas station.

♦ Measurement and detection of automatic refueling and selling system.

♦ Sewage treatment

The following preparation should be down before the liquid level meter installation.

• Vertical-pipe
• Blind plate
• Wiring RVVP-4*0.75 shied cable from tank farm to control room, galvanized pipe on the outside of the shied cable. The cable from tank farm to control room can not have a connector.
• The part of the galvanized pipe exposed from the wall of manhole length about 100mm, its outer thread (G3/4) length of 25mm, using for connection with explosion-proof box.
