Specifications
Place of Origin :
Jiangxi, China
Brand Name :
BlueRay
Certification :
CE ISO
Supply Ability :
100 Set/Sets per Month jumbo ton bulk FIBC big bag urea packing machine
Packaging Details :
1, Each jumbo bag packing machine will be packed in a big wooden case, then in the container 2, Customized needs available
MOQ :
1 Set/Sets
Price :
$5,000.00 - $10,000.00 / Set
Application :
flake,lump,block,aggregation,mixture products
Packaging Type :
jumbo bags/ton bags/bulk bags, Bags, Barrel
Dimension(L*W*H) :
1840*2240*4500mm
Product name :
Jumbo bag fluorspar powder packing machine
Four load cell :
high weighing accuracy
Three travelling cylinder :
feeding speed with fast-midium-slow
Control box :
full touch screen panel
Automatic bag clamp :
sensor control
PLC system :
easy operating
Packing material :
flake/lump/mixture products
Sewing machine :
full automatic
OEM service :
15 years R&D experience
Warranty :
1 year
Condition :
New
Packaging Material :
Wood, 500kg urea mobile bags packing machine in wooden case
Automatic Grade :
Semi-automatic
Driven Type :
Pneumatic
After-sales Service Provided :
Engineers available to service machinery overseas
Type :
Other
Voltage :
220V/380V/50HZ
Power :
6KW
Weight :
1500KG
Port :
Shanghai or any port of China
Description

1, Product Name: Jumbo bag fluorspar powder packing machine

2, Item: DCS-50D/2T DCS-50F/2T DCS-50L/2T

Application materials
flake,lump,block,aggregation,mixture products of any industry
Display Resolution
100g
Weighing Range
500-3000 kg/bag or customized needs
Precisions
+/-(0.1-0.2)% FS
Packing Capacity
10-30 bags/hour
Dimention(L*W*Hmm)
1840*1840*4500mm, the size can be customized according to your site
Power Supply
AC220V/380V, 50HZ, 1P/3P, customized available
Air Source
0.5-0.7 Mpa
Power
6KW
Working Temperature
-10~40 ℃
Relative Humidity
≤90% RH(Non-condesing)
Application

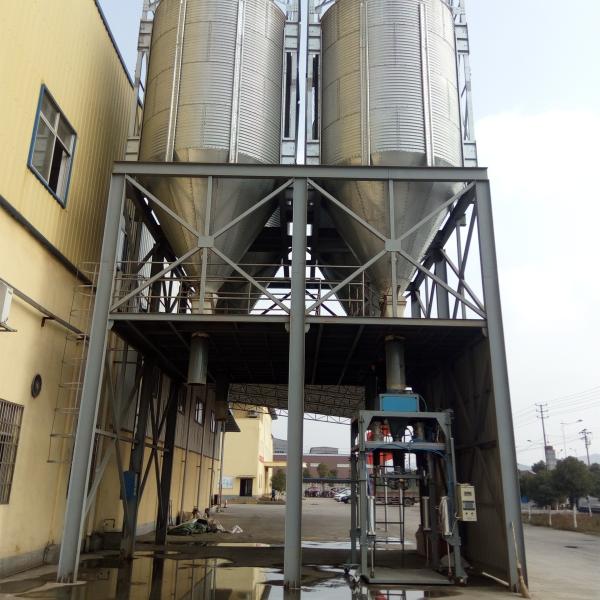

1840*2240*4500mm 100g Fluorspar Powder Jumbo Bag Packing Machine
1840*2240*4500mm 100g Fluorspar Powder Jumbo Bag Packing Machine

Application Materials(products)

Belt feeding type packing machine suit for pack flake,lump,block,aggregation,mixture products, such as gravel,pebble,stone,manure,organic fertilizer, soil, sawdust,animal feed(big size/mixture),coal briquette, aluminum sulfate etc

Application Bags(open mouth bags)

This bagging machine is especially designed for pack materials(products) into jumbo bags, ton bags, bulk bags, big bags etc

Detailed Images
1840*2240*4500mm 100g Fluorspar Powder Jumbo Bag Packing Machine 1840*2240*4500mm 100g Fluorspar Powder Jumbo Bag Packing Machine 1840*2240*4500mm 100g Fluorspar Powder Jumbo Bag Packing Machine
Working Process
1840*2240*4500mm 100g Fluorspar Powder Jumbo Bag Packing Machine

Manually bag placing-automatic bag clamped-automatic filling-automatic weighing--materials automatic discharge-automatic bag loose-automatic conveying

Advantage
1840*2240*4500mm 100g Fluorspar Powder Jumbo Bag Packing Machine

Control Box

+Full touch screen panel
+PLC system
+Photoelectric sensor switch
+English/Chinese view
+Easy operation interface
+Proction data record & print
+Connect computer available

Four pieces of Load Cell

(weighing sensor)

+Famous brand load cell, more stable
+Installed 4pcs load cell, high weighing accuracy

1840*2240*4500mm 100g Fluorspar Powder Jumbo Bag Packing Machine
1840*2240*4500mm 100g Fluorspar Powder Jumbo Bag Packing Machine

Belt Feeding Mechanism

+Control by the PLC system and motor
+Feeding speed with fast-midium-slow due to the motor frequency change
+Three-travelling cylinder control the materials
through for feeding

Automtic Bag Clamp/Lifting Mechanism

+Automatic bag clamp/release device
photoelectric sensor switch for start&stop
instal 4pcs air cylinder with pneumatic control
+Lifting device, 4pcs cylinder control, do the step of squat down bag to avoid materials in your bag be piled to tip shape
+Bag pothook, 4pcs hook with lock design,control by 4pcs cylinder with strong clamp force, avoid bag drop out

1840*2240*4500mm 100g Fluorspar Powder Jumbo Bag Packing Machine
1840*2240*4500mm 100g Fluorspar Powder Jumbo Bag Packing Machine

Air Receiver

+storage air from the air compressor
+machine working more stable and smoothly
+improve packing speed and weighing accuracy

Packing & Delivery

1840*2240*4500mm 100g Fluorspar Powder Jumbo Bag Packing Machine
Related Products
Item
DCS-50L/2T
DCS-50F/2T
DCS-50D/2T
Application
materials (products)
Small size granular
Powder of any industry
Flake,lump,block,aggregation,
mixture products
Weighing Range
500-3000 kg/bag or customized needs
Precisions
+/-(0.1-0.2)% FS
Packing Capacity
10-30 bags/hour
10-30 bags/hour
10-30 bags/hour
Dimention(L*W*Hmm)
1800*1800*3400mm
1840*2400*3800mm
1840*1840*4500mm
Power Supply
AC220V/380V, 50HZ, 1P/3P, customized available
Air Source
0.5-0.7 Mpa
Power
3KW
6KW
6KW
Working Temperature
-10~40 ℃
Relative Humidity
≤90% RH(Non-condesing)
1840*2240*4500mm 100g Fluorspar Powder Jumbo Bag Packing Machine
1840*2240*4500mm 100g Fluorspar Powder Jumbo Bag Packing Machine

Jiangxi Blue Ray M & E Co., Ltd

-15 years professional manufacturer of packing machines, sewing/heat sealing machine, automatic palletizer

machine, elevator/conveyor etc
-More than 10 person engineers team, OEM service and customized design are available
-3000㎡ working shop, high production capacity
-Sales and after sales team 24 hours online service

Flowing chart:

Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-testing-packaging and transport-after service

1840*2240*4500mm 100g Fluorspar Powder Jumbo Bag Packing Machine

FAQ:

Q1: How could I choose the right packing machine?

A: We have various item of packing machine to suit for pack different materials(products), just let me know your

product and requirement, we will choose the suitable item and make a drawing for you to confirm. Also your customize design are availbale, we have more than 10 person engineers team and R&D team.

Q2: What's service you can provide if we buy your machine?

A: 1, One year quality guaranteed, during this guarantee period, no matter what's kind of parts damaged, we will provide

free change for you. All equipment for more than a year warranty, exchange of damaged parts, only charge a cost of

spare parts.

2, We will provide you the guide service on the operation of the machine.

3, If required, we will dispatch technician to your country for installation guide, commissioning& adjusting the machine and training the workers on conditon that you need affords all cost from China to your company including food,

accommodation, transportation etc and extra USD80 per day.

Q3: What's your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you

pay the balance.

Q4: What is your terms of delivery?
A: EXW, FOB, CFR, CIF

Q5: How about your delivery time?
A: Generally, it will take 30 to 40 days after receiving your advance payment. The specific delivery time depends on the

items and the quantity of your order.

Q6: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A: 1, We keep good quality and competitive price to ensure our customers benefit
2, We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
