2018 new auto 5kg to 50kg rice agro application packing machine
2018 new auto 5kg to 50kg rice agro application packing machine
2018 new auto 5kg to 50kg rice agro application packing machine
2018 new auto 5kg to 50kg rice agro application packing machine
2018 new auto 5kg to 50kg rice agro application packing machine
2018 new auto 5kg to 50kg rice agro application packing machine
2018 new auto 5kg to 50kg rice agro application packing machine
2018 new auto 5kg to 50kg rice agro application packing machine
2018 new auto 5kg to 50kg rice agro application packing machine
2018 new auto 5kg to 50kg rice agro application packing machine
2018 new auto 5kg to 50kg rice agro application packing machine
2018 new auto 5kg to 50kg rice agro application packing machine
Specifications
Application :
small size granular or powder with good flow, Chemical, Commodity, Food, Machinery & Hardware, Textiles
Packaging Type :
open mouth bags, Bags
Place of Origin :
Jiangxi, China
Brand Name :
BlueRay
Model Number :
DCS-50L
Dimension(L*W*H) :
3000*1100*3200mm
Product name :
2017 new auto 5kg to 50kg rice agro application packing machine
Three load cell :
high weighing accuracy
Three travelling cylinder :
feeding speed with fast-midium-slow
Control box :
full touch screen panel
Automatic bag clamp :
sensor control
PLC system :
easy operating
Packing material :
granular or good flow powder
Sewing machine :
full automatic
OEM service :
15 years R&D experience
Quality warranty :
one year
Weight :
1500KG
After-sales Service Provided :
Engineers available to service machinery overseas
Power :
3KW
Condition :
New
Packaging Material :
Wood, rice agro application packing machine in wooden case
Driven Type :
Pneumatic
Voltage :
220V/380V/50HZ
Automatic Grade :
Semi-automatic
Certification :
CE ISO
Type :
Other
Supply Ability :
100 Set/Sets per Month rice agro application packing machine
Packaging Details :
1, Each packing machine will be packed in a big wooden case, then in the container 2, Customized needs available
Port :
Shanghai or any port in China
MOQ :
1 Set/Sets
Price :
$5,000.00 - $10,000.00 / Set
Description
Product Description

1, Product Name: 2018 new auto 5kg to 50kg rice agro application packing machine

2, Item: DCS-50L

Application materials
small size granular or powder with good flow
Display Resolution
5g, 10g
Weighing Range
5-50kg/bag or customized needs
Precisions
+/-(0.1-0.2)% FS
Packing Capacity
360-480 bags/hour
Dimention(L*W*Hmm)
3000*1100*3200mm, the size can be customized according to your site
Power Supply
AC220V/380V, 50HZ, 1P/3P, customized available
Air Source
0.5-0.7 Mpa
Power
3KW
Working Temperature
-10~40 ℃
Relative Humidity
≤90% RH(Non-condesing)
Application
2018 new auto 5kg to 50kg rice agro application packing machine
2018 new auto 5kg to 50kg rice agro application packing machine

Application Materials(products)

Gravity feeding type packing machine suit for pack small size granular or powder with good flow, such as plastic particles, feed, fertilizer( urea etc), grain, sugar, bean, rice etc.

Application Bags(open mouth bags)

This bagging machine is especially designed for pack materials(products) into open mouth bags, such as plastic woven bags, kraft bags,paper-plastic compound bags, sacks, barrel etc

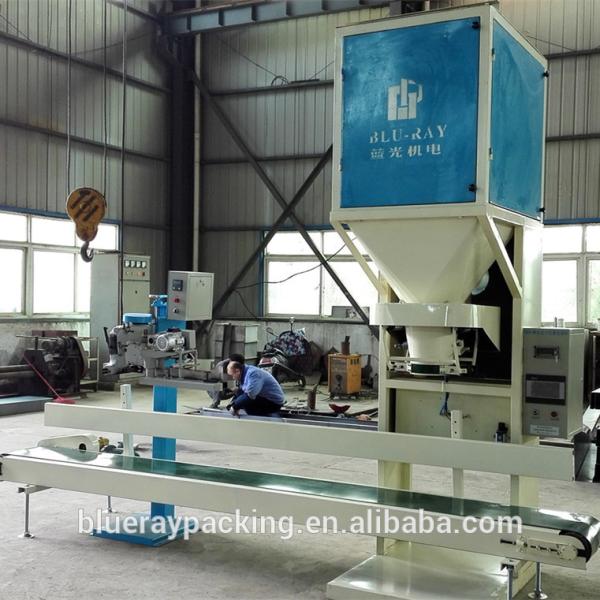

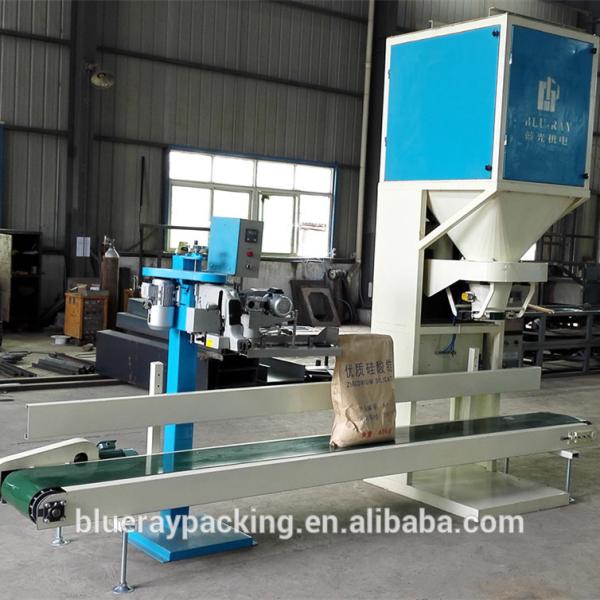

Detailed Images
2018 new auto 5kg to 50kg rice agro application packing machine
2018 new auto 5kg to 50kg rice agro application packing machine
Working Process
2018 new auto 5kg to 50kg rice agro application packing machine

Automatic filling - automatic weighing - manually bag placing - automatic bag clamped - materials automatic discharge - automatic bag loose - automatic conveying - automatic bag closed by sewing/heat sealing

Advantage
2018 new auto 5kg to 50kg rice agro application packing machine

Control Box

+Full touch screen panel

+PLC system

+Photoelectric sensor switch

+English/Chinese view

+Easy operation interface

+Proction data record & print

+Connect computer available



Three pieces of Load Cell

(weighing sensor)

+Famous brand load cell, more stable

+Installed 3pieces load cell, high weighing accuracy




2018 new auto 5kg to 50kg rice agro application packing machine
2018 new auto 5kg to 50kg rice agro application packing machine




Three-travelling Air Cylinder

+Control by the PLC system and three-travelling

air cylinder, feeding speed with fast-midium-slow



Automtic Bag Clamp/Loose Mechanism

+Photoelectric sensor switch

+Big force 2pcs air cylinder control

+Automatic bag clamp and loose

+Automatic materials dischage

+Suit for different bag size

2018 new auto 5kg to 50kg rice agro application packing machine
2018 new auto 5kg to 50kg rice agro application packing machine


Dust Air Outlet

+All of our packing machine will install air outlet

+Connect your dust removal device, making the

working environment more hygienic

+Add our pulse dust collector,

dust collection≥99.8%

Automatic Sewing Machine

+Automatic bag top folding device(opitional)

+Photoelectric sensor switch

+Automatic knife thread cut

+Single needle double thread chain

+Production data record & print

+Thread end length ajustable

+Bag sewing heigth adjustable

+With automatic bag conveyor

2018 new auto 5kg to 50kg rice agro application packing machine
