Automatic Highway Toll Barrier Gate with 6M Boom Length and F Insulation Class
Automatic Highway Toll Barrier Gate with 6M Boom Length and F Insulation Class
Automatic Highway Toll Barrier Gate with 6M Boom Length and F Insulation Class
Automatic Highway Toll Barrier Gate with 6M Boom Length and F Insulation Class
Automatic Highway Toll Barrier Gate with 6M Boom Length and F Insulation Class
Automatic Highway Toll Barrier Gate with 6M Boom Length and F Insulation Class
Automatic Highway Toll Barrier Gate with 6M Boom Length and F Insulation Class
Automatic Highway Toll Barrier Gate with 6M Boom Length and F Insulation Class
Automatic Highway Toll Barrier Gate with 6M Boom Length and F Insulation Class
Automatic Highway Toll Barrier Gate with 6M Boom Length and F Insulation Class
Automatic Highway Toll Barrier Gate with 6M Boom Length and F Insulation Class
Automatic Highway Toll Barrier Gate with 6M Boom Length and F Insulation Class
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CBG, CBG
Model Number :
18B
MOQ :
2 sets
Price :
$360.00/sets 2-99 sets
Max length of boom :
6 meter
Voltage :
DC24V
Inslation class :
F
Warranty :
2 Years
Operation Lifetime :
>=5 Million times
Output power :
140W
Feature :
Durable
Altitude :
1000M or lower
Special Features :
Waterproof / Weatherproof
Description
Products Description

Automatic Highway Toll Barrier Gate with 6 Meter Boom Length and F Insulation Class

The boom barrier gate can be independently controlled by wireless remote control to achieve landing rods, or it can be automatically managed through the parking lot management system (i.e. IC card swiping management system). Vehicles can be released upon entry for card collection, and upon exit, parking fees will be charged and the vehicles will be automatically released.

Automatic Highway Toll Barrier Gate with 6M Boom Length and F Insulation Class

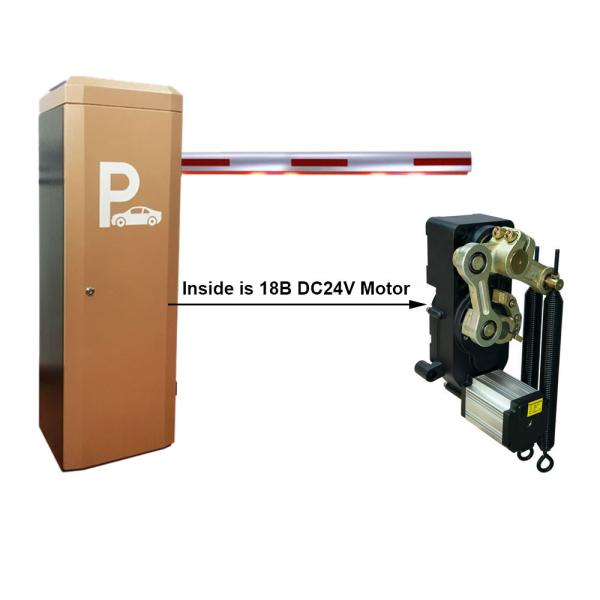

18B Motor Parameters
Voltage:DC24V
Output Efficiency:140W
Humidity:85% or lower
Insulation Class:F
Gate Operation Time:0.3-5S
Altitude:1000 Meter or lower
Current:6A
Operation Lifetime:>=5million times
Temperature Range:-40°C to +60°C (temperatures
below -20°C require a heating element)
Applications: Generally suited for controlling gates leading to highways and expressways, as well as vehichle-plate
reading systems for gated communities and commercial parking lots.
Interior Structure
Automatic Highway Toll Barrier Gate with 6M Boom Length and F Insulation Class
Automatic Highway Toll Barrier Gate with 6M Boom Length and F Insulation Class
Automatic Highway Toll Barrier Gate with 6M Boom Length and F Insulation Class
Old and New Product's Difference
Automatic Highway Toll Barrier Gate with 6M Boom Length and F Insulation Class

Before:

1) Worm gear, general appearance
2) The previous products use with Rv50 reducer and added the splint to compose the movement. The worm gear is a consumable product. After using a long time, there will be a large gap, the pole will be not stable and shake so will cause the gear reducer to grind.
3)The products mainly used with AC 220V motor, the fixed speed was not adjustable.
4) Open structure, a low degree of protection, easy to enter water.
5) During installation, needs to adjusted the magnet position to ensure the door opening angle. After a long time, the shaking will affect the limit position or the pole may be deviated downwards.
Automatic Highway Toll Barrier Gate with 6M Boom Length and F Insulation Class

After:

1) Gear transmission structure, beautiful appearance, compact structure, strong overall sense.
2) The new products are tailor-made for this industry and the gear adopts the processing technology of worm grinding wheel grinding after heat treatment, fine rolling of hard alloy hob, etc., the accuracy grade ≥ GB / T100951, 2-2001 7 level.
3)The new product uses with DC 24V brushless motor to avoid the problem of carbon brush life. Adjustable speed.
4)The entire seal structure, high degree of protection (≥IP55); have a rainproof capability.
5) Installed the chassis, adjust the position automatically after power on, and adjust the angle of rising pole and falling pole at will.
Packing List
Automatic Highway Toll Barrier Gate with 6M Boom Length and F Insulation Class
Single net weight about : 45KG(Not include the boom arm)
Single package carton size: 108.5X38X34CM Package Type: Carton
Company Profile
Workshop View
Automatic Highway Toll Barrier Gate with 6M Boom Length and F Insulation Class
Assembly Equipment
Automatic Highway Toll Barrier Gate with 6M Boom Length and F Insulation Class
Visit Factory
Automatic Highway Toll Barrier Gate with 6M Boom Length and F Insulation Class
FAQ
Q: Are you wholesaler or trade company?
A: We're manufacturer of boom barrier motor and our factory is in Guangdong, China.
Q: How long is the delivery time?
A: 24 hours delivery for stock after full payment, for the bulk goods, need about 5-20 days.
Q: How about your warranty?
A: The movement's warranty is 2 years.
Q: Do you provide sample?
A: Yes, we can offer the sample for charge and freight collect.
If need more details, please don't hesitate to contact with us :-)
Exhibition
Automatic Highway Toll Barrier Gate with 6M Boom Length and F Insulation Class
Enterprise Qualification
Automatic Highway Toll Barrier Gate with 6M Boom Length and F Insulation Class
