380V/50Hz Automatic Blister Packing Machine Customized Dimensions
380V/50Hz Automatic Blister Packing Machine Customized Dimensions
Specifications
Brand Name :
Hongwei
Model Number :
HW-BP516A
Place of Origin :
Shenzhen
MOQ :
1 set
Price :
USD 55,000-70,000.
Payment Terms :
T/T, L/C
Supply Ability :
5 Sets
Delivery Time :
60 business days
Packaging Details :
Plywood Board
Material :
Aluminum Alloy, Steel, PC Board
Automation :
Fully Automated
Voltage :
3-Phrase, 380V/50Hz, 15KW
Condition :
New
Driven Type :
Electric, Pneumatic, Servo Motor, Film Gripper Chain
Application :
Medical, Oral Healthcare, Stationery, Commodity, Tableware, Automobile Parts and Accessory,
After-sales Service provided :
Engineers available to service machinery overseas, Online support, Video technical support, Field installation, commissioning and training
Dimensions :
to be customized
Warranty :
12 Monthes
Driven type :
Servo Motor
Description

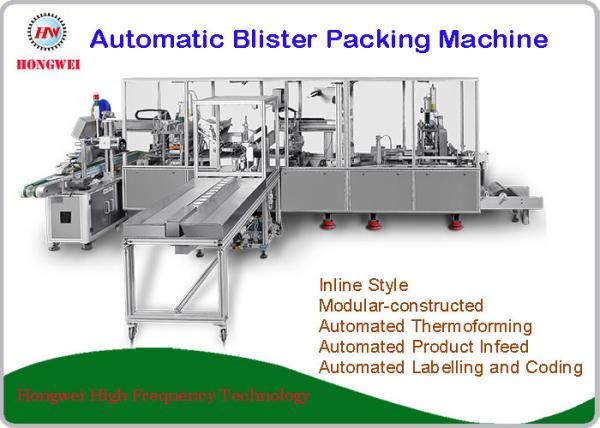

Automatic Blister Packing Machine for Metal Scourers

380V/50Hz Automatic Blister Packing Machine Customized Dimensions

  1. PLC-based control system and Color LCD + touch screen HMI;
  2. Driven by server motor, pneumatics system and film gripper chain;
  3. Simple modular construction and easy transportation, debugging, operation, maintenance and repair;
  4. Workstations integrated on one assembly for streamline production;
  5. Photoelectronic sensing, alert when shortage of PVC sheet or cardboard takes place;
  6. Separate location of plastic film rolls and printed cardboard feeding saves much packing materials;
  7. High safety design with door interlock, the machine stops whenever improper opening of door happens.
  8. Lightweight chassis made out of Aluminum profile.
  9. Automatic leftover collection

380V/50Hz Automatic Blister Packing Machine Customized Dimensions

Model HW-BP300 Series HW-BP500 Series
Rating Output 15-20 Punch/Minute, 2-3 pcs/Mould 15-20 Punch/Minute, 4-8 pcs/Mould
Assembly Dimensions 4800*780*1900mm 6800*780*1900mm
Net weight Appropriate 0.8T Appropriate 2T
Molding Area 200*300mm 300*400mm
Ambient Temperature 18~30ºC 18~30ºC
Power Supply 3-Phrase 380V 3-Phrase 380V
Compressed Air Pressure 0.6MPa 0.6MPa
Max. Current 15 A 20 A
Max. Power 6 kw 9 kw

380V/50Hz Automatic Blister Packing Machine Customized Dimensions

This is a versatile and reliable automatic blister packing machine, applicable to blister packing of toothbrush, battery, stationery, medical Instruments, toys, small hardware, electronics parts and finished products, automotive parts, household applications, cosmetics and other cardboard and plastic blister package, such as Injector, model vehicle, clipper, flashlight, battery, spark ignition plug, lipstick, coat hook, cleaning balls, razors, correction fluid tube, pencil and the like.

380V/50Hz Automatic Blister Packing Machine Customized Dimensions

380V/50Hz Automatic Blister Packing Machine Customized Dimensions

380V/50Hz Automatic Blister Packing Machine Customized Dimensions

We provide user with service of customization of Design and Fabricating tooling, mould and auto-feeder as per user’s request and depending on the actual conditions of the products to be processed.

380V/50Hz Automatic Blister Packing Machine Customized Dimensions
