2 Welding Head Clamshell Sealing Machine , High Frequency Sealing Machine
2 Welding Head Clamshell Sealing Machine , High Frequency Sealing Machine
Specifications
Brand Name :
Hongwei
Model Number :
HW-BP12K2R
Place of Origin :
Shenzhen
MOQ :
1 Set
Price :
USD 10,000-25,000
Payment Terms :
L/C, T/T
Supply Ability :
15 Sets/Month
Delivery Time :
35 Business Days
Packaging Details :
Plywood Export Package
Construction :
2 Welding Head, Rotary Worktable
Power Supply :
3-Phrase, 380V/50 Hz
Application :
Big Size Clamshell or blister Packing
After-sales Service Provided :
Engineers available to service machinery overseas, Video technical support, Online support, Free spare parts, Field maintenance and repair service
Warranty :
12 Month
Driven By :
Electric, Pneumatics, Servo Motor
Description

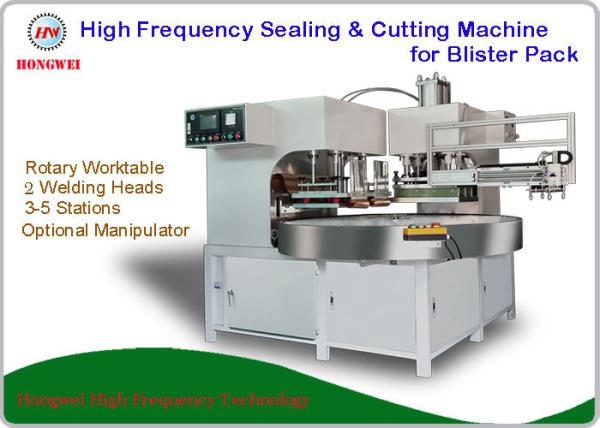

Dual Head Rotary HF Sealing and Cutting Machine for Clamshell/Blister Pack

2 Welding Head Clamshell Sealing Machine , High Frequency Sealing Machine

  1. High Q-value oscillation loop design, Low power consumption stable and reliable output
  2. Imported “5557” or “2D21” High sensitive Anti-spHigh efficiency rotary worktable design,
  3. 1 high frequency sealing head and 1 high frequency cutting punch,
  4. Pick-and-place mechanism
  5. 3 or 4 mould tray on a rotary table
  6. Cylinder Propping location device ensures precise plate position

2 Welding Head Clamshell Sealing Machine , High Frequency Sealing Machine

Model HW-BP12K2R HW-BP15K2R
Power Consumption 12KW 15 KW
Power Supply 380 V 380 V
Input Power 12 KVA 12 KVA
Rectifier Silicon Diode Silicon Diode
Oscillator Tube 7T85RB 7T69RB
Max. Pressure 650 Kg 750 Kg
Max. Gap between Electrodes 250 mm 250 mm
Welding Head Travel 175 mm 175 mm
Plate Size 400 X 600 mm 600 X 800 mm
Time Adjustment 0~10 S ( Adjustable) 0~10 S ( Adjustable)
Dimensions 2500 X 2500 X 1900 mm 2500 X 2500 X 1900 mm
Net Weight 800 Kg 800Kg

2 Welding Head Clamshell Sealing Machine , High Frequency Sealing Machine

2 Welding Head Clamshell Sealing Machine , High Frequency Sealing Machine

PVC (and materials contains PVC more than 10%), PET, PETG, APET, GAG, PU, TPU, EVA and cardboard

Toothbrush, Battery, Stationery, Food, Medical Instruments, Toys, Small hardware, Electronics parts and finished products, Automotive parts, Household applications, Cosmetics, healthcare and medical products, and other cardboard and plastic blister package, Such as Injector, Solid plastic, Model Vehicle, Clipper, Flashlight, Battery, Spark Ignition Plug, Lipstick, Coat Hook, Cleaning Balls, Razors, Correction Fluid, Pencil and the like.

2 Welding Head Clamshell Sealing Machine , High Frequency Sealing Machine
