Shuttle Tray High Frequency Welding Machine Fully Closed Enclosure For Car Seat Welding
Shuttle Tray High Frequency Welding Machine Fully Closed Enclosure For Car Seat Welding
Shuttle Tray High Frequency Welding Machine Fully Closed Enclosure For Car Seat Welding
Shuttle Tray High Frequency Welding Machine Fully Closed Enclosure For Car Seat Welding
Specifications
Brand Name :
Hongwei
Model Number :
HW-BP10KST
Place of Origin :
Shenzhen
MOQ :
1 Set
Price :
USD 9,800~20,000
Payment Terms :
L/C, T/T
Supply Ability :
20 Sets/Month
Delivery Time :
30 Business days
Packaging Details :
Plywood Export Package
Materials :
Galvanized Steel, Stainless Steel, Alluminum alloy
Type :
Shuttle Tray
Heating Method :
HF Heating
Driven by :
Peneumatics, Servo Motor
Usage :
Plastic Welding
Certification :
CE,ISO
Description

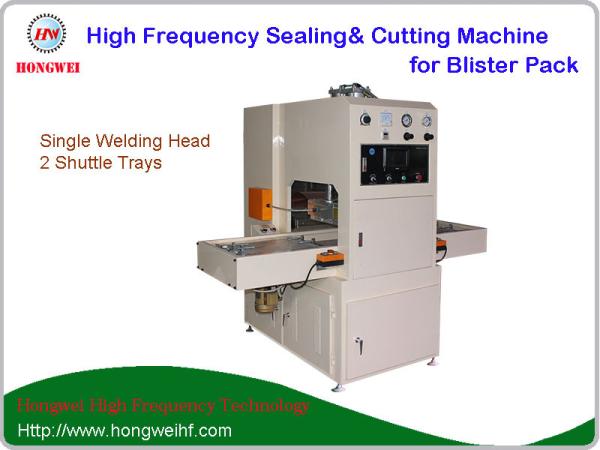

Semi Automatic HF Sealing and Cutting Machine with Shuttle Tray for Toothbrush Blister Pack

Shuttle Tray High Frequency Welding Machine Fully Closed Enclosure For Car Seat Welding

Materials: Blister Sealing and cutting of APET, PETG, PP, PET, Paper and other environmentally-friendly membrane materials

Products: Toothbrush Blister Package, Vehicle Sun Visor, Plastic Logo badge, CD bag, Watch belt, Door handle, Stationery Blister package, Toys Blister package, Lock and keys blister package, Dry Battery Blister package and the like

Shuttle Tray High Frequency Welding Machine Fully Closed Enclosure For Car Seat WeldingShuttle Tray High Frequency Welding Machine Fully Closed Enclosure For Car Seat Welding

Shuttle Tray High Frequency Welding Machine Fully Closed Enclosure For Car Seat Welding

  1. Safe Voltage 24V is applied to Control system and Press Button
  2. Toshiba Cube-Type RF oscillator provides more stable current and outputs higher power
  3. Adopting high sensitive anti-spark device, avoiding damaging the tooling and mould
  4. Automatic overload tripping switch is employed to keep smooth operation and safety
  5. Precisely designed and processed hydraulic system is adopted in the machine, and can be adjusted independently for each part
  6. Hydraulic pressure limit switch is applied to adjust safe TOP Limit to keep the machine safety and avoid damaged die
  7. Fully-closed enclosure, safe and good looking
  8. Fully automatic slide increases productivity and ensures perfectly precise location

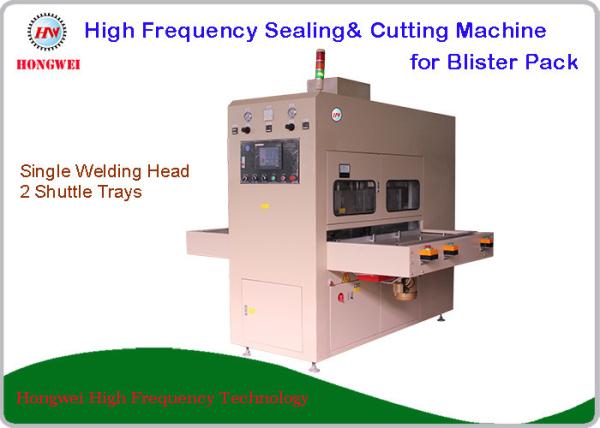

  9. One welding head for two slide to make full use of the machine to increase productivity
  10. 5.8 “ Touch Screen, HMI and Onboard PLC control

Shuttle Tray High Frequency Welding Machine Fully Closed Enclosure For Car Seat Welding

Description Items HF Sealing & Cutting Machine for Blister Pack
Model HW-HSC5ST HW-HSC8ST HW-HSC10ST HW-HSC15ST
Rating RF Output 5 KW 8 KW 10 KW 15 KW
Input Power 8 KVA 12 KVA 15 KVA 15 KVA
Rectifier Silicone Diode Silicone Diode Silicone Diode Silicone Diode
Oscillator E3185RB/7T85RB 7T69RB E3069RB 8T85RB
Max.Cutting Force 10,000 kg 20,000 kg 25,000 kg 30,000 kg
Electrode Size 400 X300 mm 450 X 350 mm 520 X400 mm 520 X400 mm
Cylinder Travel 100 mm 100 mm 100 mm 100 mm
Shuttle Tray Size 550 X 450 mm 550 X450 mm 560 X700 mm 560 X700 mm
Timing Range 0-10 s (Adjustable) 0-10 s (Adjustable) 0-10 s (Adjustable) 0-10 s (Adjustable)
Power Supply 3-Phrase 380V 3-Phrase 380V 3-Phrase 380V 3-Phrase 380V
Dimensions 2000 X 1300 X 1800 mm 2000 X 1300 X 1800 mm 2400 X 1300 X 2040 mm 2400 X 1300 X 2040 mm
Net Weight 900 kg 1000 kg 1200 kg 1500 kg
