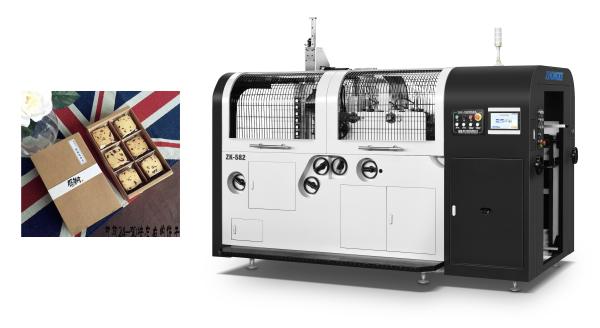

High Power Automatic Paper Box Making Machine For Medicine Packing Boxes
High Power Automatic Paper Box Making Machine For Medicine Packing Boxes
Specifications
Brand Name :
Zhongke
Model Number :
ZK-582
Certification :
CE, ISO900
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
30% deposit+70%balance before shipment
Delivery Time :
1month after received 30% deposit
Packaging Details :
wooden pallet or wooden case
Supply Ability :
10 sets per month
Net weight :
2600kg
Height of paper stockpile :
350mm
Name :
Automatic Paper Box Making Machine
Power supply :
380V 50Hz
Noise level :
≤80dB
Air supply :
80(Litre/min)
Description

High Power Automatic Paper Box Making Machine For Medicine Packing Boxes

Automatic Rigid Box Making Machine description:

  • Adopt multi-touch high sensitive safety switch ;
  • Bottom mold adopts pneumatic structure, which effectively prevents the bubble;
  • It adopts an innovative design--three curved surface cams, integrated on one main shaft, run in same direction simultaneously when machine works--which makes motions more coordinate and adjustment easier;
  • Automatically wrap, fold ear and paper sides, continually finishing the box in one process ;
  • It is equipped with time-delay device to adjust the period from putting on box to (top mold) pushing down, which ensure the operation safety;
  • The safety cover is designed according to the CE standard which efficiently prevents the dis-operation and ensure the personal safety;
  • It adopts curved surface cam structure which makes the machine run more stably and with lower noise.

Automatic Rigid Box Making Machine Structural features

  1. Innovatively designed automatic filling wall for wide-edged box;
  2. servo motor, PLC programmable controller, photoelectric tracer, touchscreen HMI and other systems
  3. Infrared safety protection system to ensure the safety of operators;
  4. Automatic troubleshooting

Automatic Rigid Box Making Machine Main Specifications

Ⅰ Ⅱ Ⅲ

Sizes of paper

A=Windth；

B=Longth

 Amin 220mm 220mm 300mm
Amax 620mm 540mm 540mm
Bmin 220mm 220mm 280mm
Bmax 740mm 630m 630mm
Cardoard blank thickness BEF 300-450g/㎡ 300-450g/㎡

Box size

L=Length；

W=Windth；

H=Height；

 Lmin 120mm 120mm 120mm
Lmax 550mm 340mm 340mm
Wmin 120mm 120mm 140mm
Wmax 415mm 255mm 255mm
Hmin 25mm 25mm 35mm
Hmax 130mm 70mm 60mm

Turn in depth

:R

 Rmin 20mm 20mm 20mm
Rmax 70mm 70mm 60mm

Broad-side edge width

:S

 Smin / / 6mm
Smax 10mm

Corrugated board

 Lmin 120 mm
Lmax 400 mm
Wmin 140 mm
Wmax 300 mm
Hmin 30 mm
Hmax 70 mm
Tmin 6 mm
Tmax 15 mm
Power 380V 50Hz
Noise level ≤80dB
Speed 1800-2700(Pcs/h)
Cardboard pile height 350mm
Load-bearing of cardboard laydown platform 20kg
Electrical power 19kw
Capacity of hot melt applicator 8(Litre)
Air supply 80(Litre/min)
Net weight 2600kg
Machine overall dimension 1100mmx1700mmx2200mm

Note

The production speed depends on the material used, glue specifications and how skillfully the operator operates the machine.

L=Hx2+20mm.

the length of small box: L=Hx2+20mm

The forming of wide-edged boxes also depends on the material, it shall be subject to the real samples.

The specification is subject to change without notice.
