Professional Automatic Wire Tie Machine High Efficiency For Bundling Motor Coil
Professional Automatic Wire Tie Machine High Efficiency For Bundling Motor Coil
Professional Automatic Wire Tie Machine High Efficiency For Bundling Motor Coil
Professional Automatic Wire Tie Machine High Efficiency For Bundling Motor Coil
Specifications
Brand Name :
Swift
Model Number :
SWT25120M
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100pcs/month
Delivery Time :
10 - 15days
Packaging Details :
in wooden case
Name :
Zip tie tool
Model :
SWT25120M
Using cable ties :
W2.5 * L120mm
Max binding Dia. :
15mm
Min binding Dia :
11mm
Operation speed :
1.2S
Description

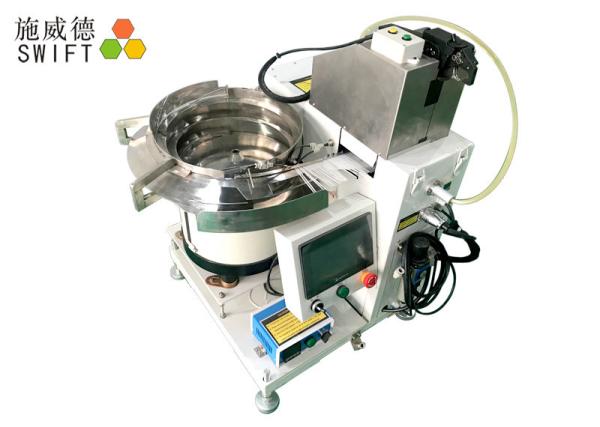

Automatic Zip Tie Tool For Motor Coil Bundling SWT120M Fast Speed

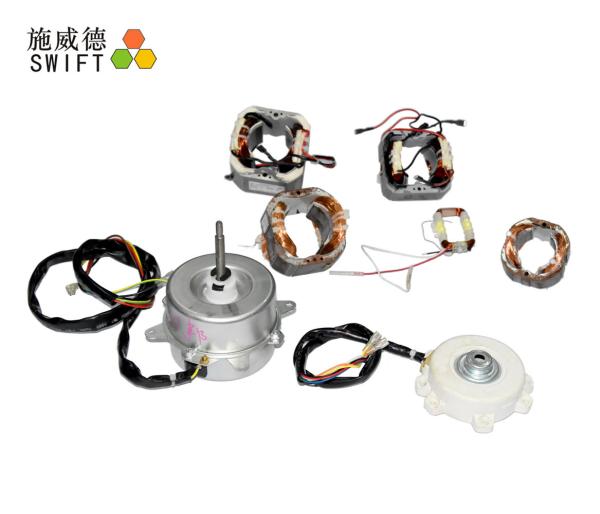

It is the first machine for bundling motor coil using cable ties in the world. It can automatically bundle and cut off cable ties with fast speed, about 1.2S one cable tie. We are a manufacturer.

Compared with other automatic cable tie machine, SWT25120M is a professional machine for bundling motor coil. The working principle is same with others' (vibration bowl feeding, bundle through the gun head). The difference is the gun head. This gun is designed for motor coil.

SWT25120M specifications

No. Item Description Value
1 Model SWT25120M No
2 Size Of cable size Width 2.5mm
Length 120mm
Thicker 1.2mm
3 Operation speed For one cable tie 1.2S
4

Max banding Dia.

 For motor coil Ø 15mm
5 Min banding Dia. For motor coil Ø 11mm
6 The feeding hose Length 2.5m
7 The bending force Adjustable
8 Voltage AC220V, 50 / 60Hz
9 The gun V. DC24V ( auto switch )
10 Power 1000W
11 Pneumatic pressure 5kg / cm²
12 Warranty

1year
13 Gun size L350 * W282 * H189
14 Gun weight 6kg

SWT25120M details

1 . The gun head of the machine is different with others. It is professional design for motor coil.

2 . Customize is welcomed. We need the sample first to check and design for you.

3 . PLC and Touch panel controlling. It is easy to operate it.

4 . Automatically wrap, pull and tightening, cut off cable tie once pedal.

5 . It can also collect the waste after cut off cable ties.

6 . Voltage is AC220V 50 / 60Hz, using standard Euro plug.

How to purchase the machine?

Pls contact me by email or phone. After confirm what you need, we will quote to you. Once confirm payment, the machine will be ready with 10 - 15 days.

The trade terms

1 . 100%TT suggest.

2 . EXW or FOB

3 . Packed in wooden case.

4 . Shipping way, by sea, by air

Other machines for motor coil

Model SWT25100M SWT36100M SWT36120M
Cable ties size W2.5 * L100mm W3.6 * L100mm W3.6 * L120mm
Max banding Dia. Ø 13mm Ø 13mm Ø 15mm
Min banding Dia. Ø 9.0mm Ø 9.0mm Ø 11mm
Operation speed 1.0S 1.0S 1.2S
Gun size L331 * W282 * H189 L331 * W282 * H189 L350 * W282 * H189
Gun weight 6kg 6kg 6kg
Voltage AC 220V 50 / 60Hz

Our company

Founded in 2000, focused on automation design till 2011;

Since 2012, we have been focusing on Automatic Nylon Cable Tie tools and Nylon Cable Ties business;

We now have 300+ customers over the world;

Our commitment: Innovation, Reliable Quality, Customer Satisfaction, Integrity Service.
