Fixed In Assembly Line Automatic Cable Tie Tool Binding Force Stronger CE
The machine can automatically bundle different sizes of goods. You don't need to pick up the cable tie one by one and wrap the objects using ties by hands.
Machine specifications
No. | Item | Description | Value |
1 | Model | SWT36120F | No |
Fixed type available | No | ||
2 | Size Of cable size | Width | 3.6mm |
Length | 120mm | ||
Tensile strength | 12kg | ||
Thicker | 1.25mm | ||
3 | Operation speed | For one cable tie | 1.0S |
4 |
Max banding Dia.
| For wire | Ø 22.0mm |
For tube | Ø 20.0mm | ||
5 | Min banding Dia. | For tube / wire | Ø 3.0mm |
6 | The feeding hose | Length | 2.5m |
7 | The data hose | Length | 2.5m |
8 | The gun head size | L * W * H | 284 * 240 * 149mm |
9 | The bending force | 5 kinds of force available | |
10 | Voltage | AC220V, 50 / 60Hz, Euro plug | |
11 | The gun V. | DC48V ( auto switch ) | |
12 | Power | 1000W | |
13 | Pneumatic pressure | 5kg / cm² | |
14 | Warranty | 12year |
SWT36120F details
1 . The fixed gun head is larger than the handheld type. The effect of tensile strength seems stronger than others.
2 . When manual tool or other type of machine could not tighten the harness with PVC sleeve or bags sealing, the fixed type may be your better choice.
3 . The gun head is only fixed in the working desk or near the assembly line. It is not suitable for handheld.
4 . Vibration feeding, pedaling the pedal, finish bundling, all operations only takes 1.0 second.
5 . Pls keep the machine horizontally. If the machine is on the uneven ground, that would have bad influence on it.
How to get the machine?
1 . Inquiry. Pls contact us by email, WhatsApp or Skype. We need to confirm the cable tie size that you are using and what objects you want to bind.
2 . Quotation. We would offer you the competitive price and other details.
3 . Payment. We will make the machine after confirm the payment. It will take about 4days to reach our band account.
4 . Lead time. It is about 10 - 15days. Once finish it, we will inform you and arrange the shipment.
5 . After sales service. We will send an email to you to confirm if you have received the machine and follow up the using situation. Have any problems, pls let me know.
The trade terms
1 . Payment term. 100%TT or negotiation.
2 . Shipping method. By sea, by express.
3 . Fob port Shenzhen or other place in China.
4 . EXW price or Fob price available.

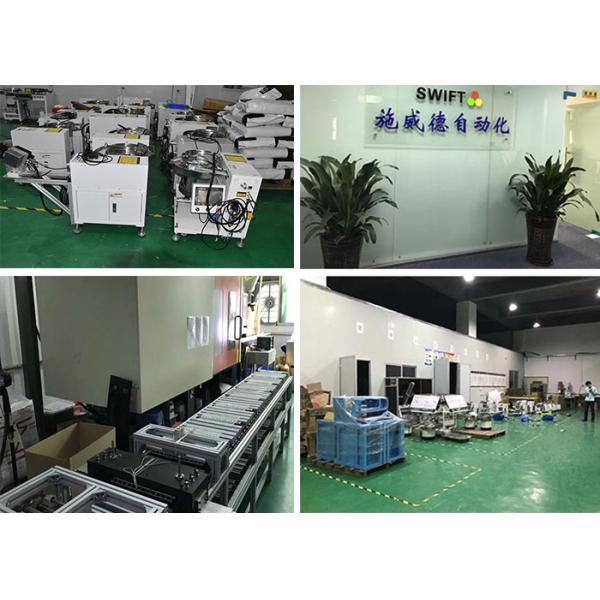

Our company
We are a professional manufacturer, producing automatic cable tie tool.
We are located in the BaoAn District of Shenzhen China, near the Shenzhen Airport.
