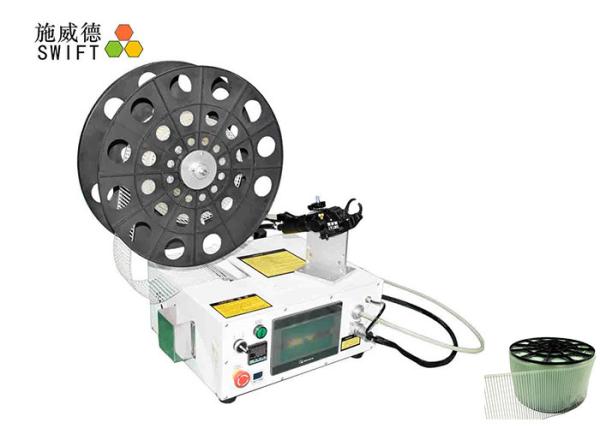

Different Plugs Automatic Cable Tie System SWT25100HC Cable Tie Gun House Appliance
Different Plugs Automatic Cable Tie System SWT25100HC Cable Tie Gun House Appliance
Specifications
Brand Name :
Swift
Model Number :
SWT25100HC
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
100pcs/month
Delivery Time :
10-15days
Packaging Details :
wooden case
Name :
Automatic cable tie tool system
Model :
SWT25100HC
Cable ties model :
C251000
Cable ties size :
Width2.5 * Length100mm
Bindig diameter :
Ø3mm - Ø18mm
Voltage :
AC220V,50/60Hz, different plugs
Description

Automatic Cable Tie Tool System SWT25100HC Cable Tie Gun House Appliance

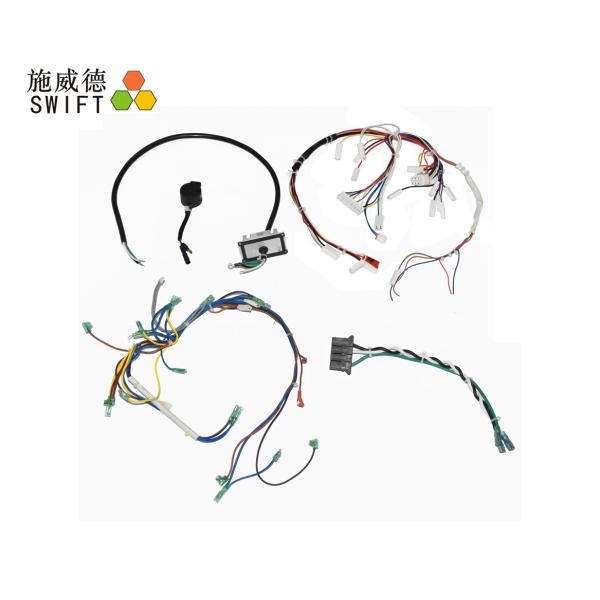

Automatic cable tie tool used in house appliance: Wire harness bundle, plastic pipes binded

SWT25100HC Specifications

Model

SWT25100HC
Cable tie spec W2.5 * L100 mm, reel zip ties
Min banding Dia. 3 mm - 18mm
Operation speed 1.1S/pcs cable tie
Electrical power Host: AC 220V 50/60 Hz
Tool: DC24V(automatic switching)
Pneumatic pressure 5 Kg/ cm²

SWT25100HC Features

1. Reel zip ties, 5,000pcs cable ties per reel.

2. With handheld cable tie tool. Automatically bundle,thread, tighten and cut zip ties off once touch the trigger.

3. The items diameters is 2mm - 18mm. The cable tie gun can automatically cope with different diameters within the spec range.

4. Different waste material collecting methods for choice.

5. The binding forces are adjustable.

6. Could be fixed as desktop type(Add a support)

7. Electrical: AC220V,50/60Hz; pneumatic pressure: 5kg/cm² ;

8. With wheels, easy to move.

Package

1pcs / wooden case

Applications

Different Plugs Automatic Cable Tie System SWT25100HC Cable Tie Gun House Appliance

Other products

Model SWT25100FC SWT36150FC SWT36200FC

Cable tie spec		 2.5 * 100mm 3.6 * 150mm 3.6 * 200mm

Min banding Dia.		 ø2.0mm ø2.0mm ø15mm

Max banding dia for wire/tube		 ø18 / ø16mm ø31 / ø30mm ø42 / ø40mm
operation speed 1.0S 1.2S 1.3S
Electrical power Host : AC 220V 50 / 60 Hz
Gun : DC48V
Power:1000W
Pneumatic pressure 5 Kg / cm²
