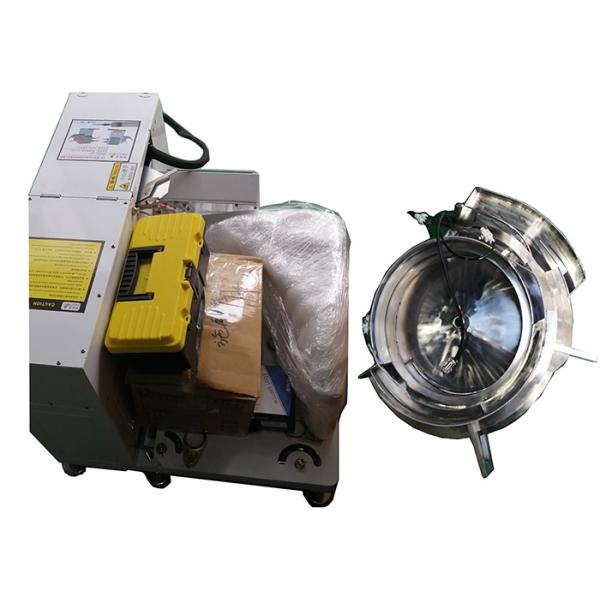

1.2S Electric SWT36150FC Automatic Tie Wrap Machine For Twisted Bags

1. Automatic tie wrap machine SWT26150F is triggered by foot pedal and cable tie gun can be fixed in the worktop.

2. Two hands of operator are free so that it is convenient to pick goods up, excepecially for big wire harness, rubber tubes.

Description of automatic tie wrap machine SWT36150F

1. Fixed cable tie gun is without battery and must work with the host machine of SWT36150F.

2. PLC and touch screen control system in the host machine.

3. The vibration bowl feeder can sort loose cable ties, 3.6 * 150mm.

4. Automatic cable tie machine SWT36150F could wrap, tighten and cut off nylon cable ties in 1.2S after operator treads the foot pedal.

5. There should keep 250pcs cable ties in the bowl feeder when to use cable tie wrap machine.

6. The binding tensions are adjustable from 2kg to 8kg.

Information of automatic cable tying machine SWT36150F

Advantages of nylon cable tie machines SWT36150F

1. A cable tie gun SWT36150F can help wire harness manufactures to save 2 workers' salary.

2. To realize semi-automation or full-automation. SWT36150F can be applied into full automation line.

3. Work stable and fast.

Applications

 1. Sets of kitchen utensils: spoons, spatulas, shells and forks

2. White goods: tubing components of refrigerators, wire harness, cotton covers

3. Coils of polyester monofilaments,stator motor or bags

Trade terms

Packing details

Automatic cable tie machine will be packed in wooden cases.

FAQ

1. Why cable tie is not tight?

The bundle tention may be smaller. Please turn the knob to set bigger forces.

2. Why operator should put nylon cable ties into the bowl feeder often?

Because automatic cable tie machine SWT36150F deals with loose zip ties, 3.6 * 150mm. And it doesn’t produce zip ties. Pls keep 250pcs nylon tie wraps in the bowl feeder.

3. What are the requirements of nylon cable ties?

Nylon cable ties are stronger, straight and without burr/flash/deformation.
