Electric DC24V Nylon Cable Tie Machine For Reliable Convinent Bundle Cable Harness
Electric DC24V Nylon Cable Tie Machine For Reliable Convinent Bundle Cable Harness
Specifications
Brand Name :
Swift
Model Number :
SWT25100H
Certification :
CE
Place of Origin :
Made in china
MOQ :
1
Price :
negotiation
Payment Terms :
100% T/T
Supply Ability :
100pcs per month
Delivery Time :
15 working days after received your payment
Packaging Details :
Packed in wooden case
Product Name :
Automatic cable tie tool
Bundle tensions :
2kg - 8kg
Cable tie spec :
2.5 * 100mm
Minimum banding diameter :
Ø2.0mm
Maximum banding diameter :
Ø18mm
Operation speed :
0.7S
Voltage :
AC220V - AC240V,50/60Hz
gun size :
L245*H95*T64mm
Description

Electric DC24V Nylon Cable Tie Machine For Reliable Convinent Bundle Cable Harness

SWT25100H is with a handheld cable tie gun, using cable tie W2.5 * H100mm.

The bundle diameters are from 2mm to 18mm.

Description

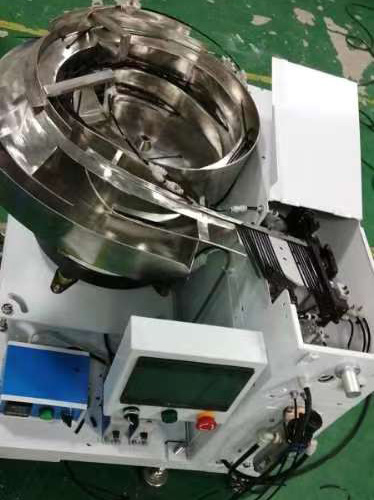

1 . Use bulk cable ties T25100, vibration feeding, transferred to the Tool via hose.

2 . Pulling the trigger, automatically Wrapping, Perforating, Pulling & Tightening, Cut off tie wraps.

4. Collecting the waste material into waste tank.

3. Automatically detecting cable tie jam and cleaning automatically, and restarting.

5. Temperature controlling system: Improve the cable tie toughness when using the machine and cable tie under 15℃.

Specifications of SWT2100H cable tie machine

Model SWT25080H SWT25100H SWT25120H

Cable tie spec		 2.5*80mm 2.5*100mm 2.5*120mm
Min banding Dia. ø2.0mm ø2.0mm ø2.0mm
Max banding dia. for wire ø14mm ø17mm ø22mm
Max banding dia. for tube ø13mm ø16mm ø21mm
operation speed 0.7S 0.7S 0.8S
Host size & weight L690* W670* H670mm, Weight: 140kg L725* W710* H670mm, Weight: 150kg
gun size(L*H*T mm) 245*95*64 250*102*64 256*108*66
gun weight 0.84kg 0.85kg 0.86kg
Electrical power Host : AC 220V 50/60 Hz
Gun : DC24V
Power:1000W
Pneumatic pressure 5 Kg/cm²

FAQ

1. Do you provide design services?

We offer the design services related to nylon cable ties & tools.

2. Can I modify the model number of the device after I confirm the order?

If the order has not yet been produced, it can be modified.

3. How to adjust the binding tensions?

In the upper of cable tie gun, there is a knob to adjust them. Bigger number, bigger tensions.
