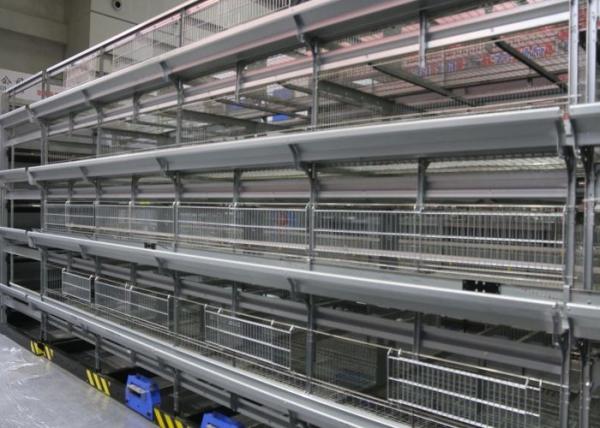

Safety Broiler Chicken Cage 180 Birds Capacity Anti - Fatigue Smooth Surface
Safety Broiler Chicken Cage 180 Birds Capacity Anti - Fatigue Smooth Surface
Specifications
Brand Name :
Hongsheng
Model Number :
HS-0401
Certification :
ISO9001, SONCAP
Place of Origin :
Henan Province, China
MOQ :
20 sets
Price :
USD 70-150
Payment Terms :
T/T, Western Union, D/P, D/A, L/C, MoneyGram
Supply Ability :
10000 sets per month
Delivery Time :
20 work days
Packaging Details :
A or H types of Chicken Layer Cage will be packed as standard or as request.
Use :
broiler chicken
Application :
broiler chicken farm
Size :
1250*800*480mm
Capacity :
180 birds
Surface treatment :
hot dip galvanized, cold galvanized
Warranty :
15-20 years
System :
automatic
Service :
all service supply
Description

Hongsheng manufacturer designed broiler chicken cage for sale

Broiler cage speification

Broiler cage specification
Item A type broiler cage

H type broiler cage

without manure

cleaning belt

H type broiler cage

with manure

cleaning belt

Installation

size

 1.95m L, 2.4m W, 1.95m H 1.25m L, 1.65m W, 1.74m H 1.25m L, 1.65m W, 2.3m H

Cage Size

(L*W*H)

 0.65*0.5*0.4 m 1.25*0.8*0.48m 1.25*0.8*0.48m

Capacity

per set

 72 birds 180 birds 180 birds
Materials Low carbon steel wire , Q235 steel wire

Surface

Treatment

 Cold galvanized
Hot dip galvanized
Lifespan Cold galvanized (7-10 years)
Dip galvanized( 15-20 years)
Package

Full container loading: cage and cage stand have no package,

some fittings are in plastic bags and carton box
Less container loading: packed in wooden box or pallet

Material of frame Hot dip galvanized steel Material of wire mesh Hot dip galvanized
Material of bottom Pure PP with UV- Tiers 3/4tiers
Size per cage 2960*1800*500mm Raising density 50-55kg meat/m2
Feeding system Automatic pan feeding Drinking system Nipple drinker system
Manure belt PP white color Front door Sliding

Advantage

1. high speed wire Q-235 standard steel

2.Wire material tensile strength reaches 490MPa, elongation reach 23%, permanently high hardness and high elasticity, not easy to get deformation after long-term usage

3. Smooth surface, protect chickens getting hurt.

4. each solder joints keep uniform depth

5. Hot dip galvanized, thickness is five times that of traditional galvanized, rust-resistant and anti corrosion.

6. Vertical 90 ° Angular design, increase physical flexibility, reduce deformation, anti-fatigue, long service life

7. horizontal sliding open door, keep good looking of layers as protect the neck feather, big slope feeder reduce feed waste.

Services

1) Pre-sales service:

a. according to your budget, our professional design team can recommend you one suitable model and design the reasonable chicken shed layout for you;

b. our modern sample exhibition hall and workshop welcome you to visit at any time.

2) After-sales service:

a. to give the installation and breeding guidance for all customers;

b. to give phone follow-ups for the equipment application;

c. to provide maintenance service for the equipment within the quality guarantee period.
